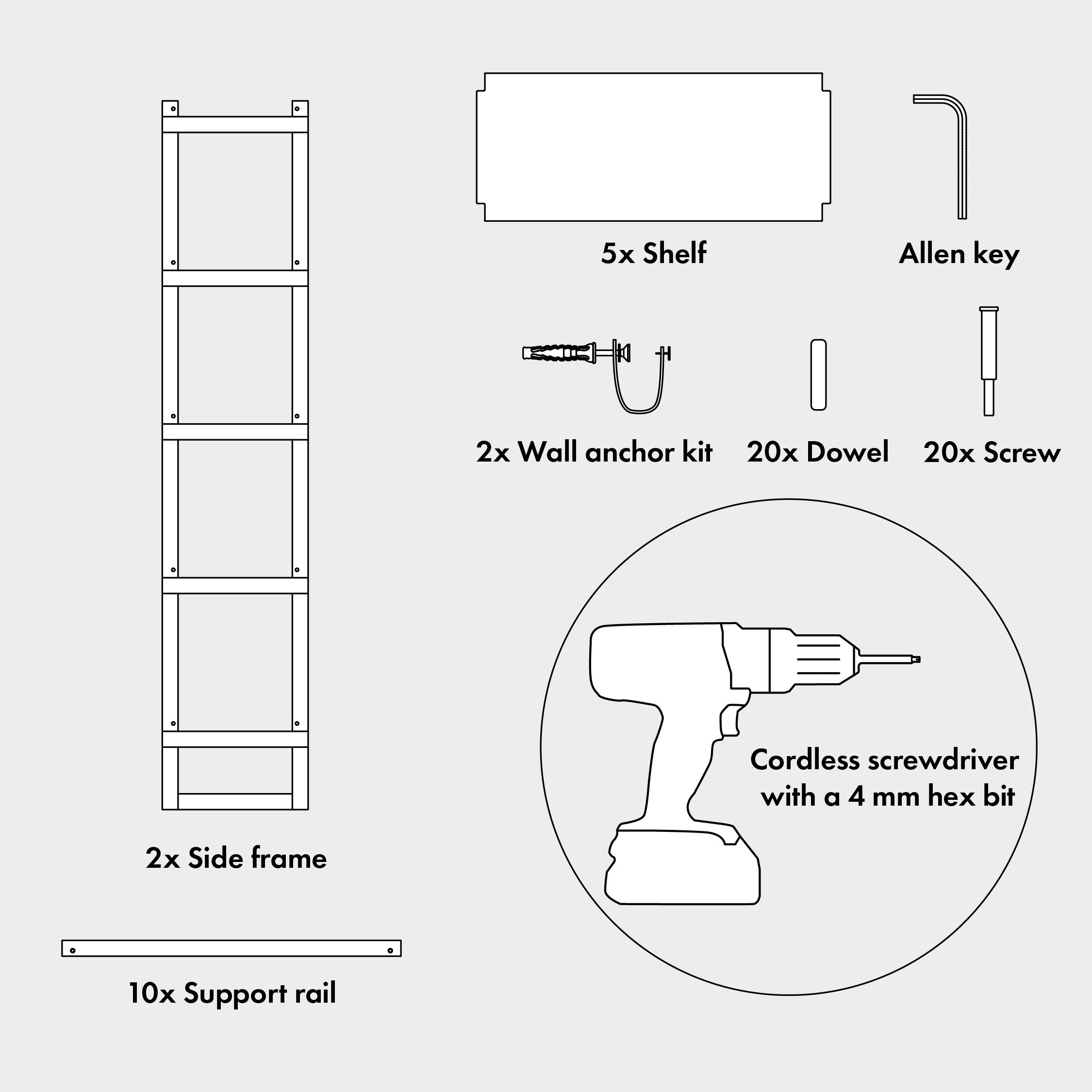

Check if you've received all pieces without any damages. If so, you’re good to go! Remember to assemble on a blanket, carpet or to use our cardboard.

1 section

Go to step #2.1 if you received the 2-sections bookcase, or to step #3.1 if you received the 3-sections bookcase.

Insert 20 wooden dowels into the designated holes in the two side frames — 10 dowels per frame.

#1.1

None

Place the left side frame flat on the floor. Fit the support rails onto the wooden dowels.

#1.2

None

Tighten all screws using the Allen key.

#1.3

None

Attach the right side frame.

#1.4

None

Tighten all screws using the Allen key.

#1.5

None

Position the assembled frame upright.

#1.6

None

Insert the shelves at an angle so they fit between the side frames.

#1.7

None

If necessary, secure the unit to the wall using the wall anchors. Install two anchors in the wall, spaced horizontally, then attach the safety pins to the edge of the upper support rail.

#1.8

None

Check if you've received all pieces without any damages. If so, you’re good to go! Remember to assemble on a blanket, carpet or to use our cardboard.

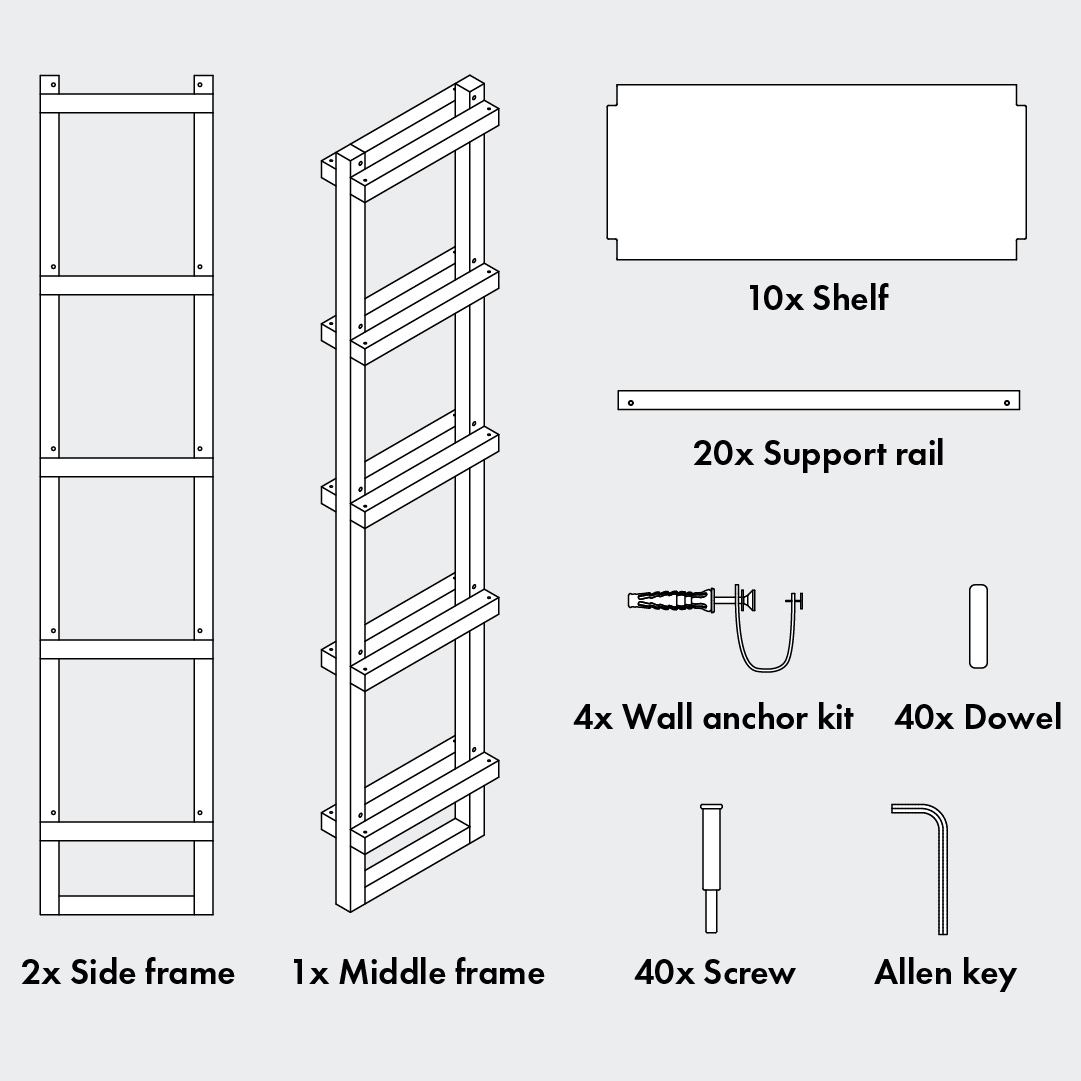

2 sections

None

Insert 40 wooden dowels into the designated holes, placing 10 in each side frame and 10 on each side of the middle frame.

#2.1

None

Place the left side frame flat on the floor. Fit 10 × support rails onto the wooden dowels.

#2.2

None

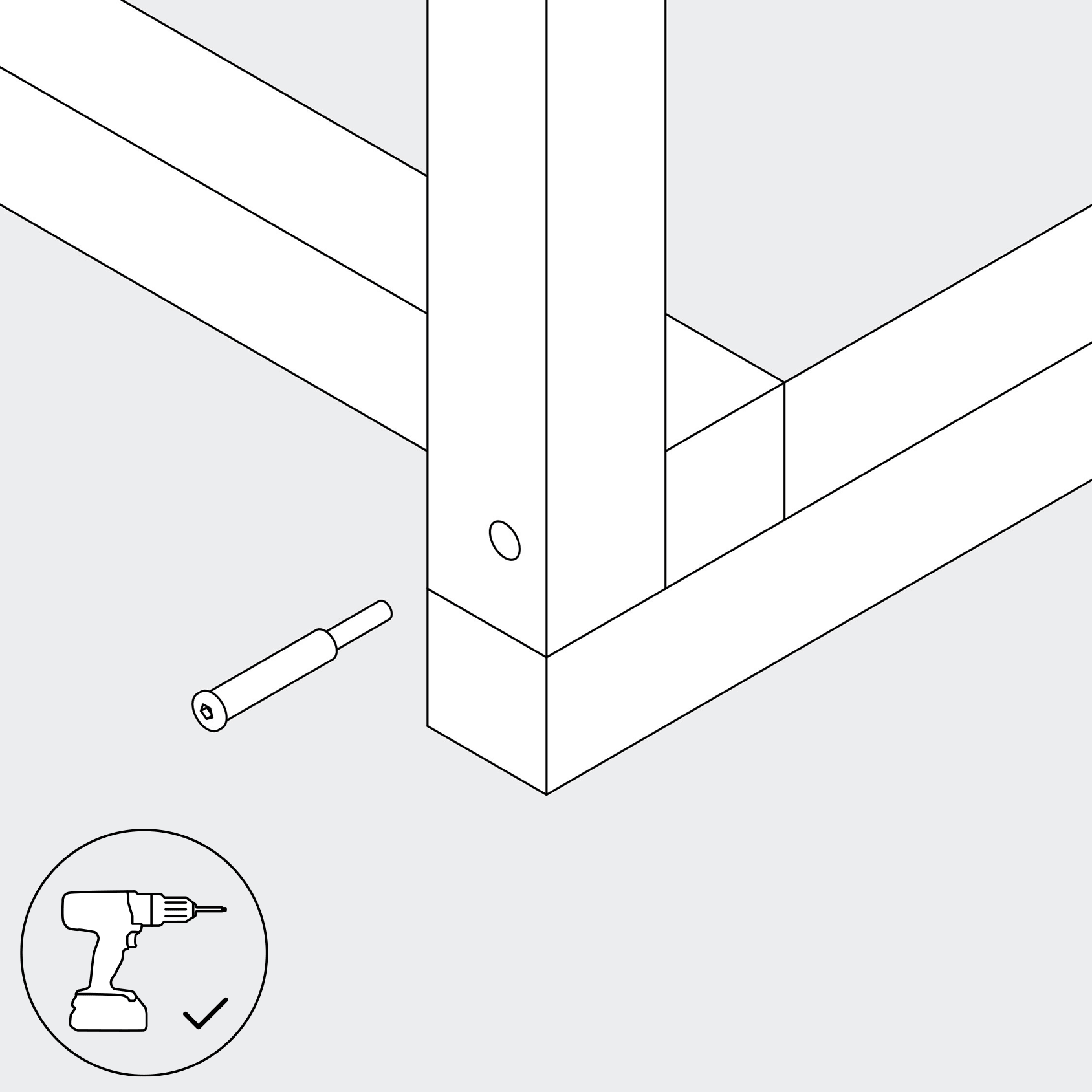

Tighten all screws using the Allen key.

#2.3

None

Turn the assembled structure over.

#2.4

None

Attach the middle frame.

#2.5

None

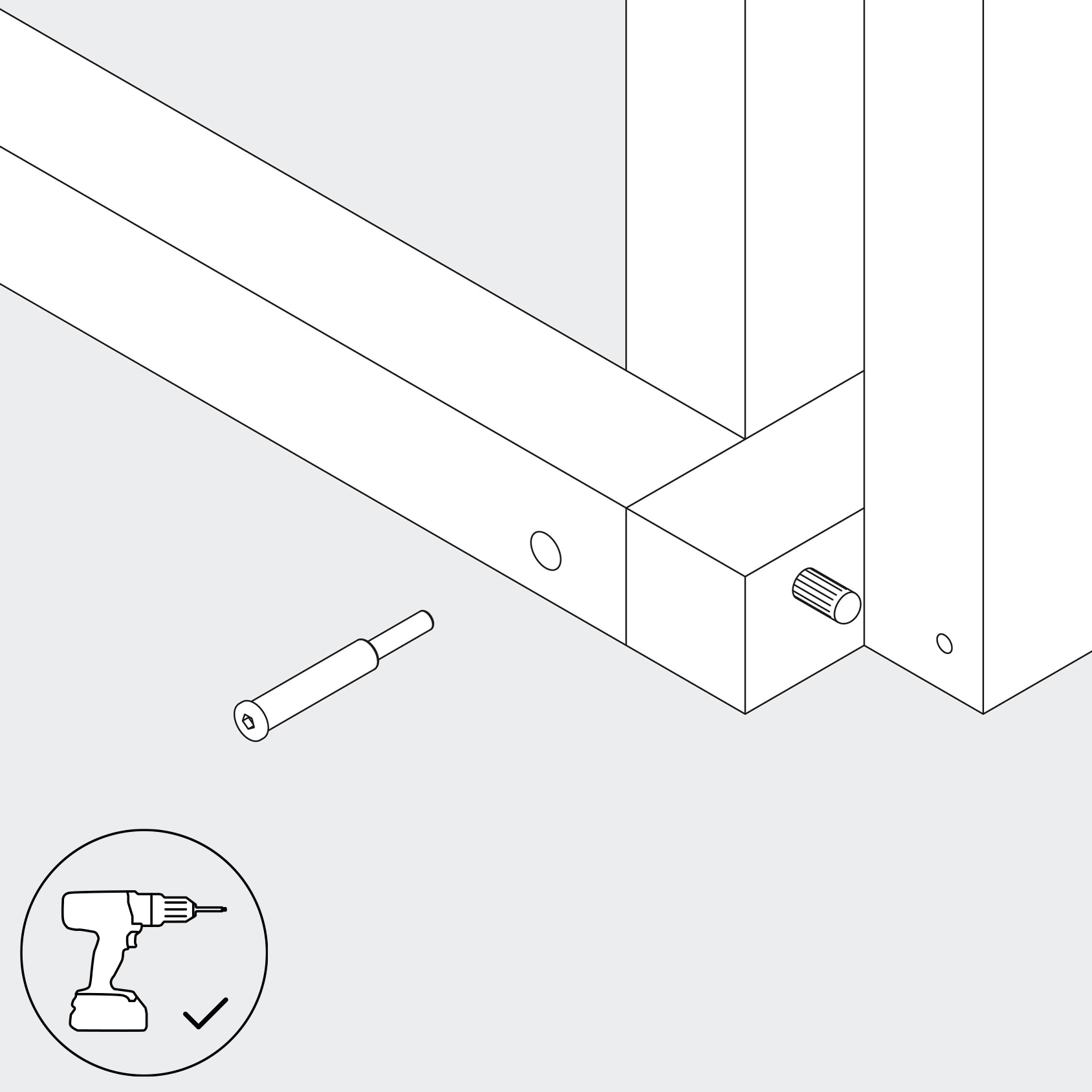

Tighten all screws using the Allen key.

#2.6

None

Fit 10 × support rails onto the wooden dowels.

#2.7

None

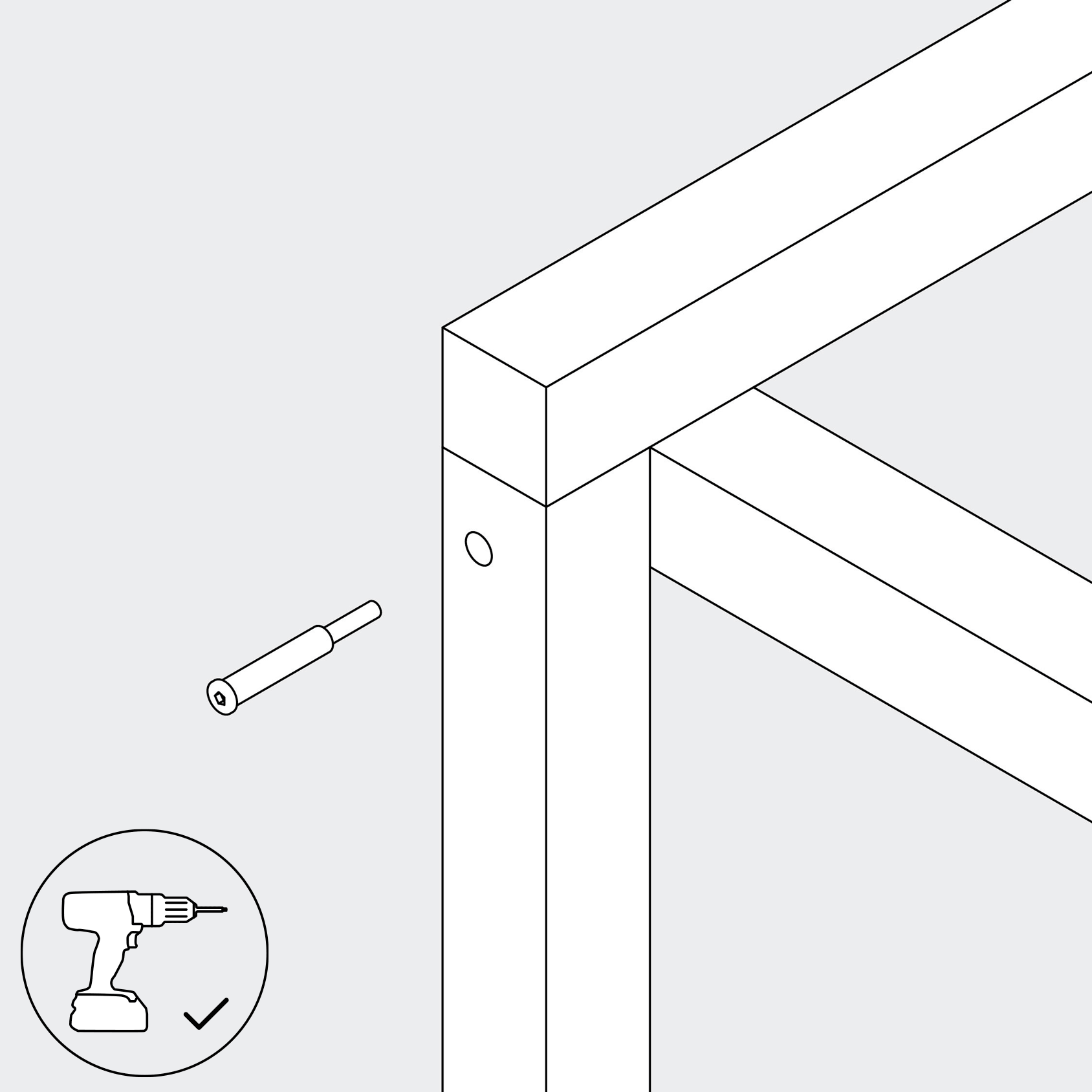

Tighten all screws using the Allen key.

#2.8

None

Attach the right side frame.

#2.9

None

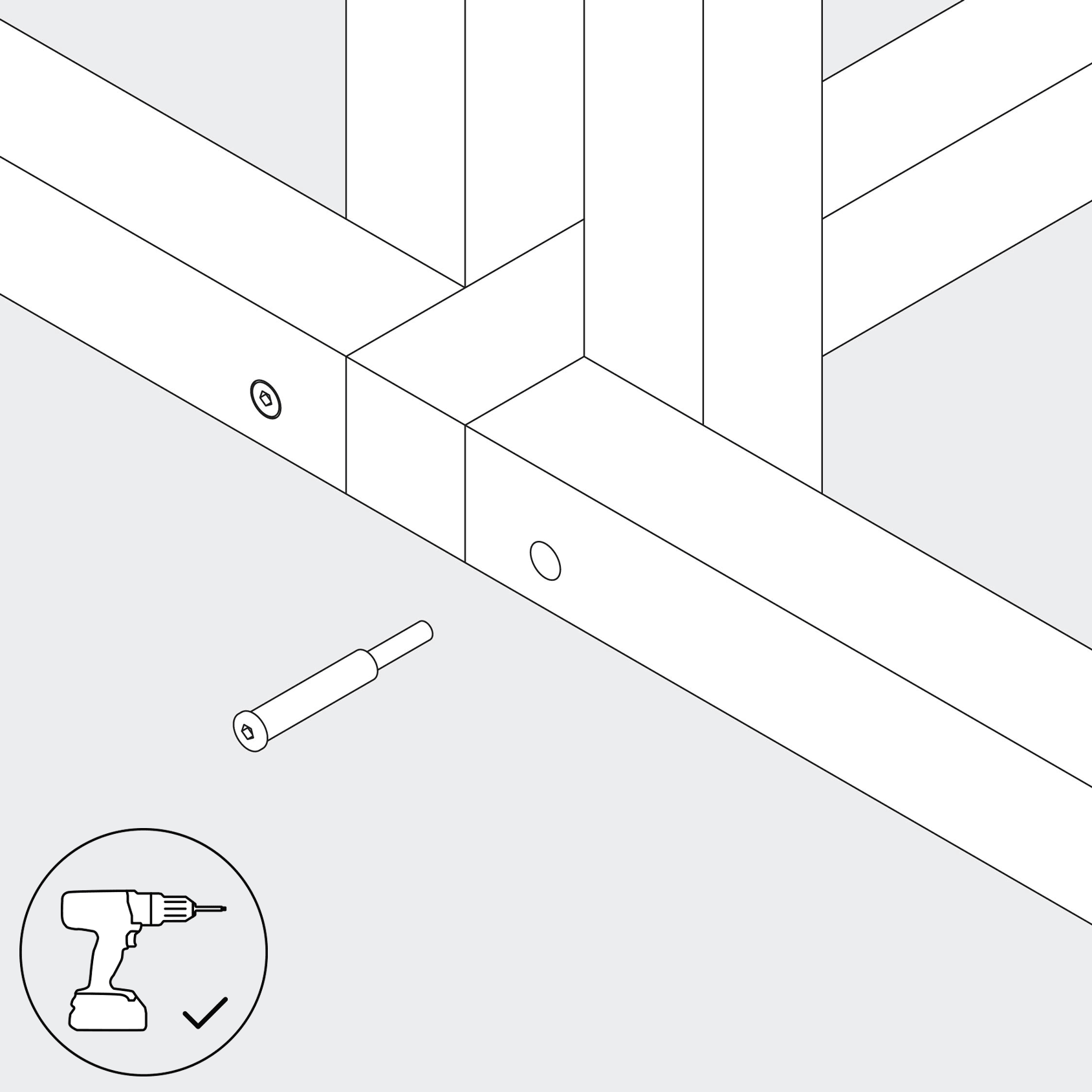

Tighten all screws using the Allen key.

#2.10

None

Position the assembled frame upright.

#2.11

None

Insert the shelves at an angle so they fit between the side frames.

#2.12

None

If necessary, secure the unit to the wall using the wall anchors. Install four anchors in the wall, spaced horizontally, then attach the safety pins to the edges of both upper support rails.

#2.13

None

Check if you've received all pieces without any damages. If so, you’re good to go! Remember to assemble on a blanket, carpet or to use our cardboard.

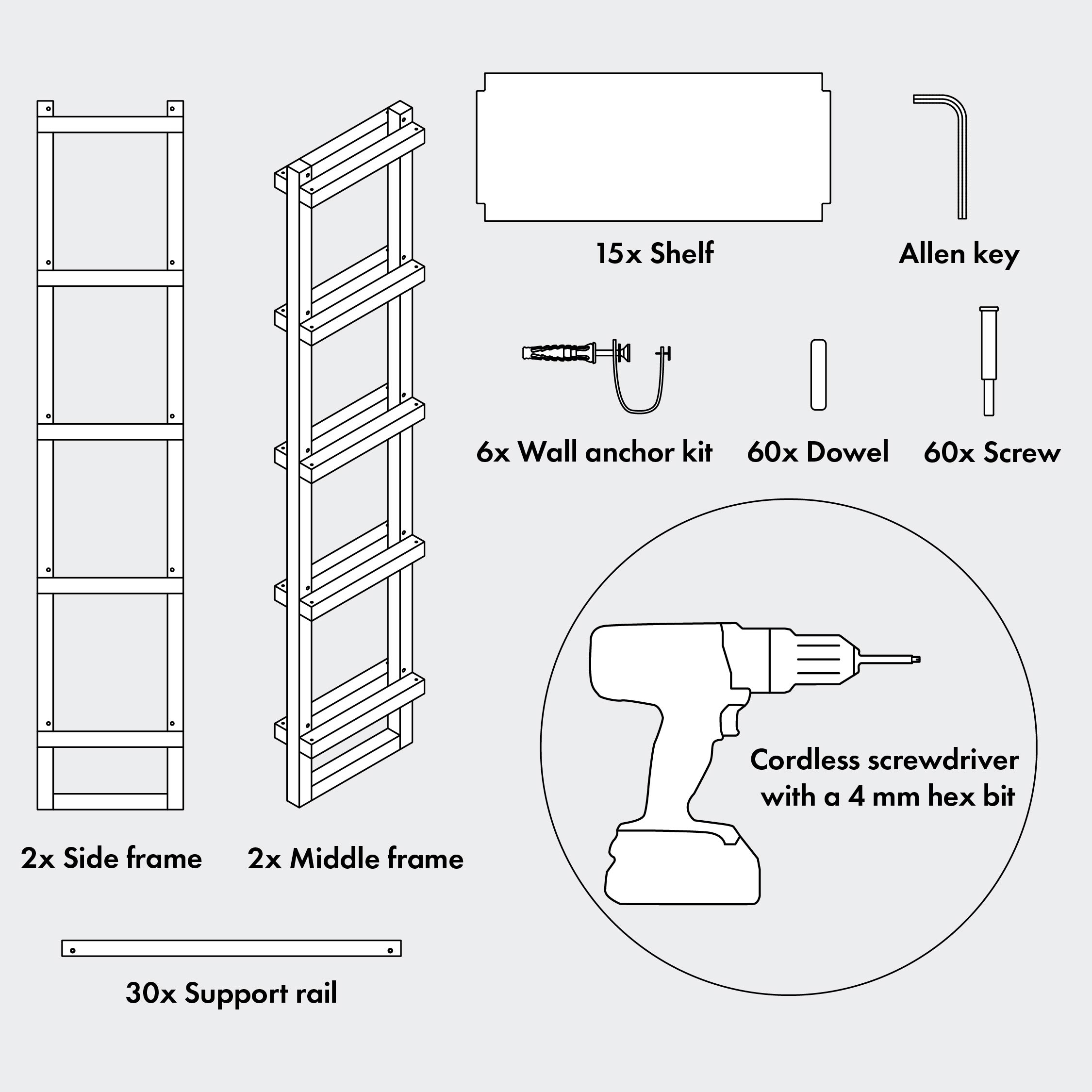

3 sections

None

Insert wooden dowels into the designated holes, placing 10 in each side frame and 10 on both sides of each middle frame.

#3.1

None

Place the left side frame flat on the floor. Fit 10 × support rails onto the wooden dowels.

#3.2

None

Tighten all screws using the Allen key.

#3.3

None

Turn the assembled structure over.

#3.5

None

Attach the middle frame.

#3.6

None

Tighten all screws using the Allen key.

#3.7

None

Fit 10 × support rails onto the wooden dowels.

#3.8

None

Tighten all screws using the Allen key.

#3.9

None

Attach the second middle frame.

#3.10

None

Tighten all screws using the Allen key.

#3.11

None

Fit 10 × support rails onto the wooden dowels.

#3.12

None

Tighten all screws using the Allen key.

#3.13

None

Attach the right side frame.

#3.14

None

Tighten all screws using the Allen key.

#3.15

None

Position the assembled frame upright.

#3.16

None

Insert the shelves at an angle so they fit between the side frames.

#3.17

None

If necessary, secure the unit to the wall using the wall anchors. Install two anchors in the wall, spaced horizontally, then attach the safety pins to the edge of the upper support rail.

#3.18

None
