Assembly Manual

Navo Table

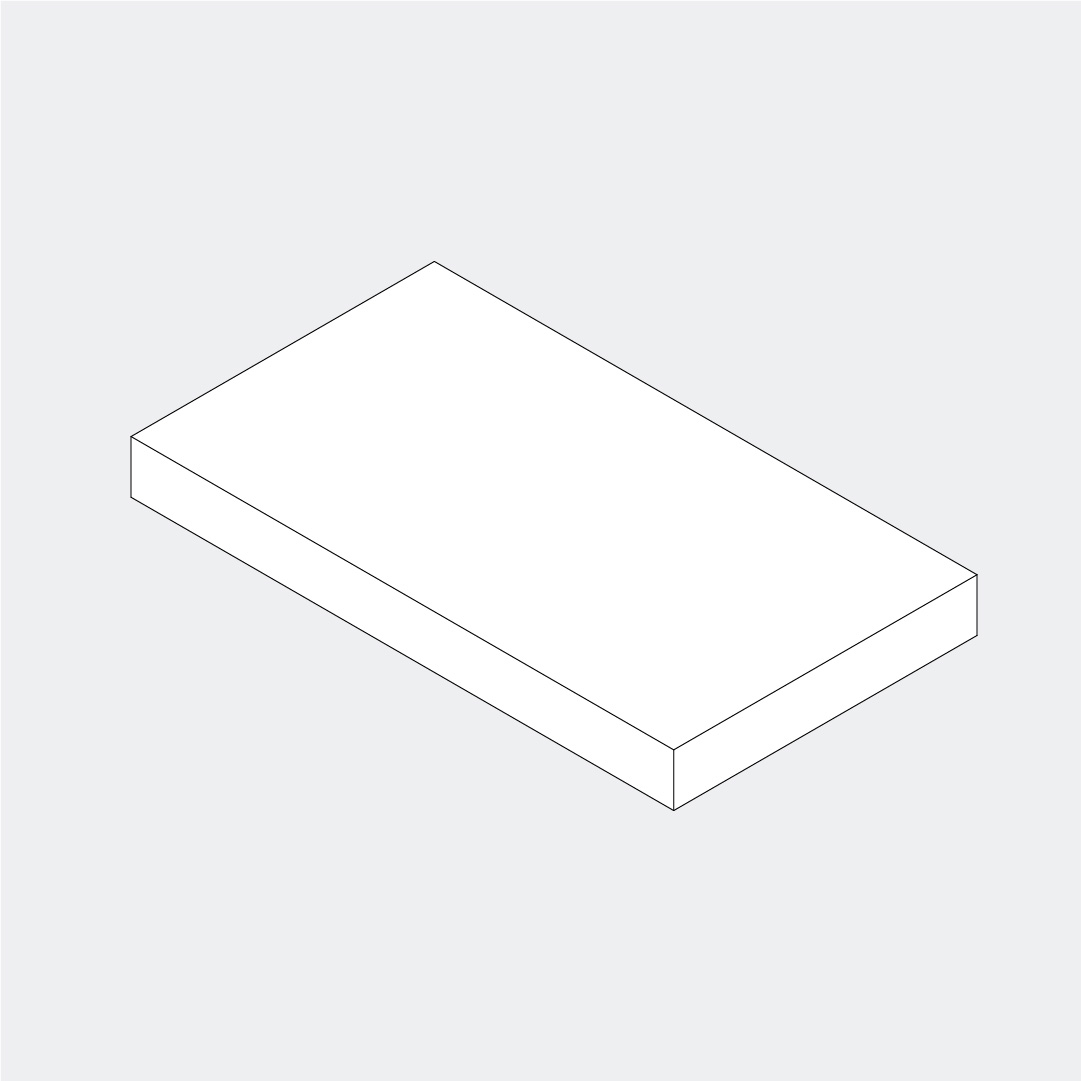

Check if you've received the box without any damages. If so, you’re good to go! Remember to always assemble furniture on a blanket, carpet or on the cardboard you got from us.

#1

None

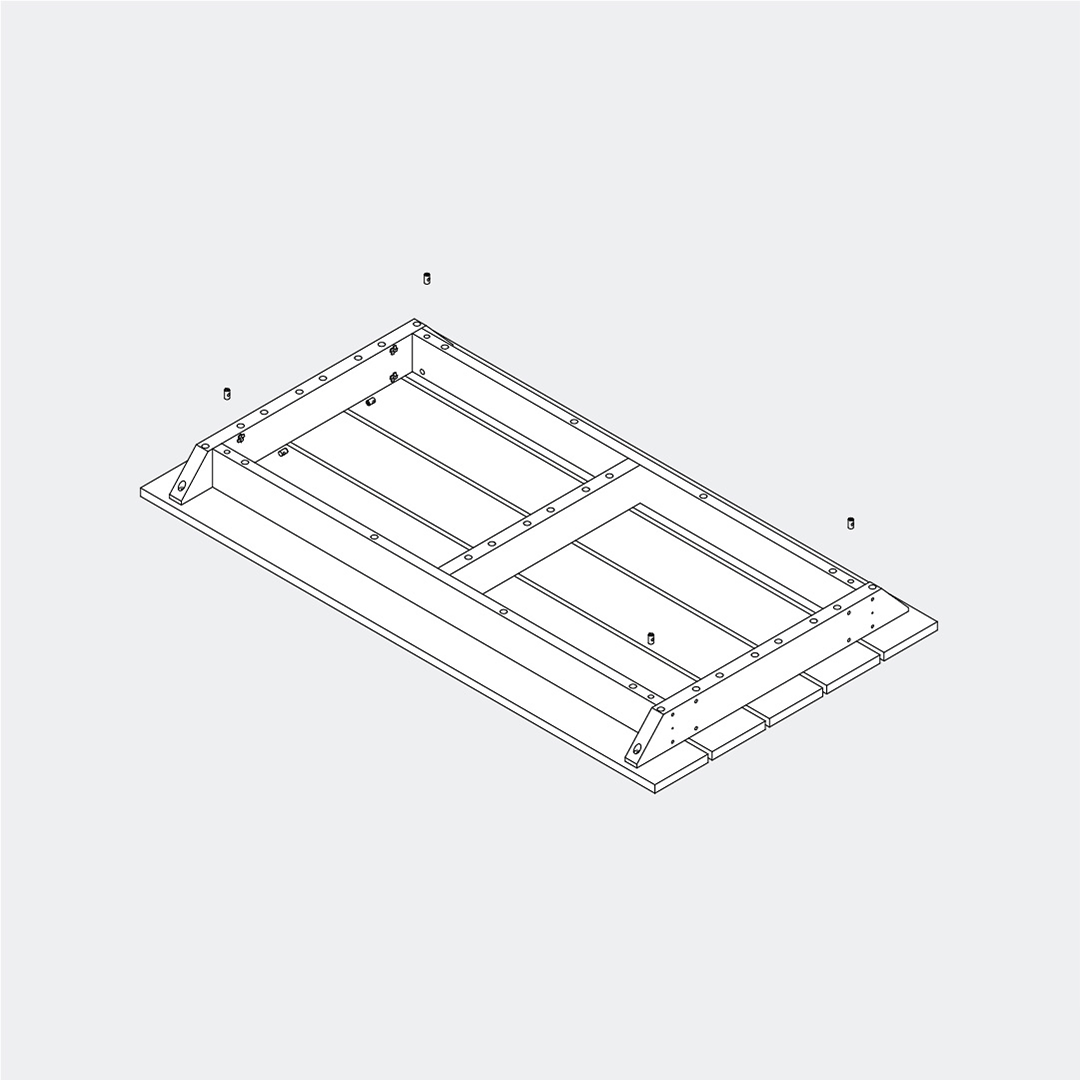

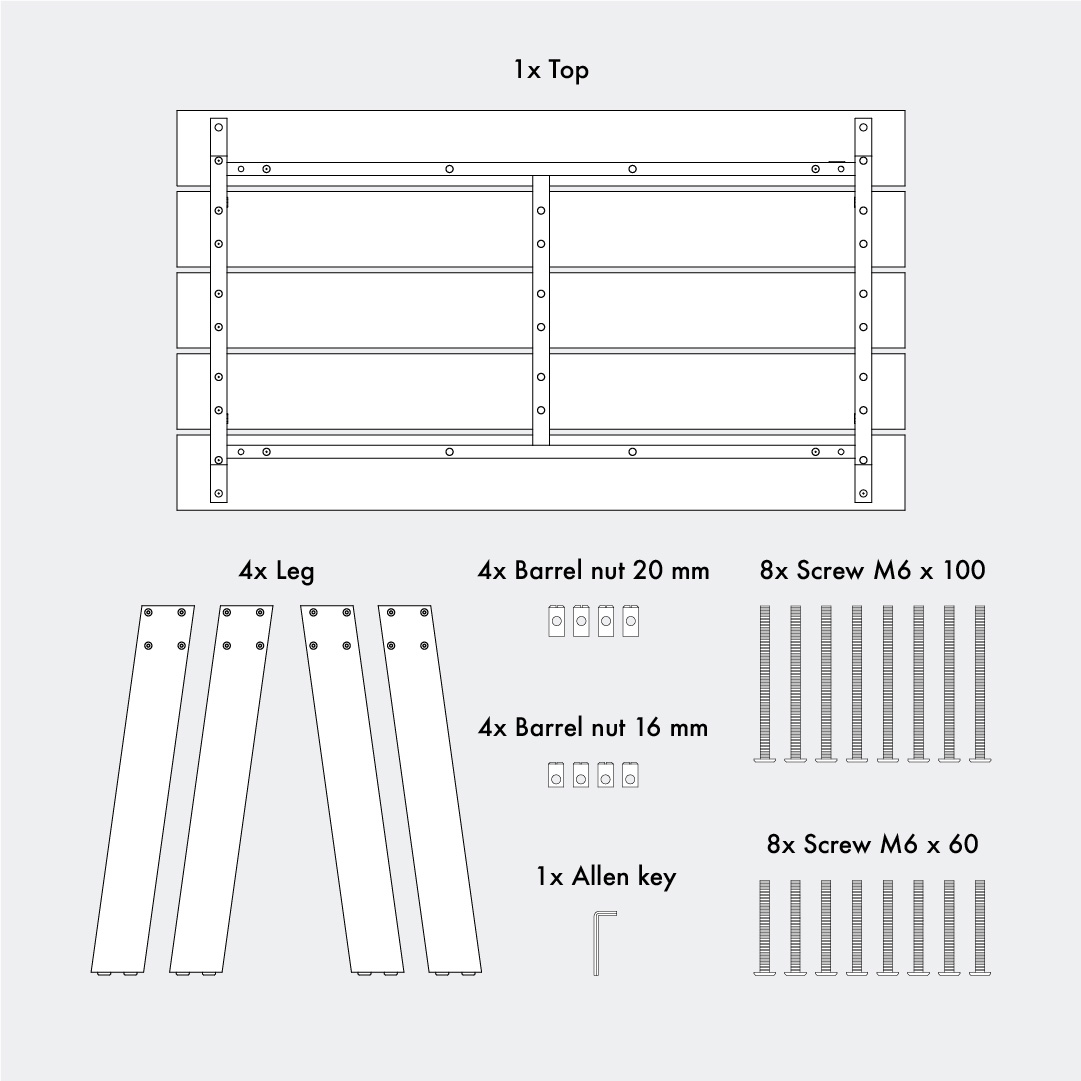

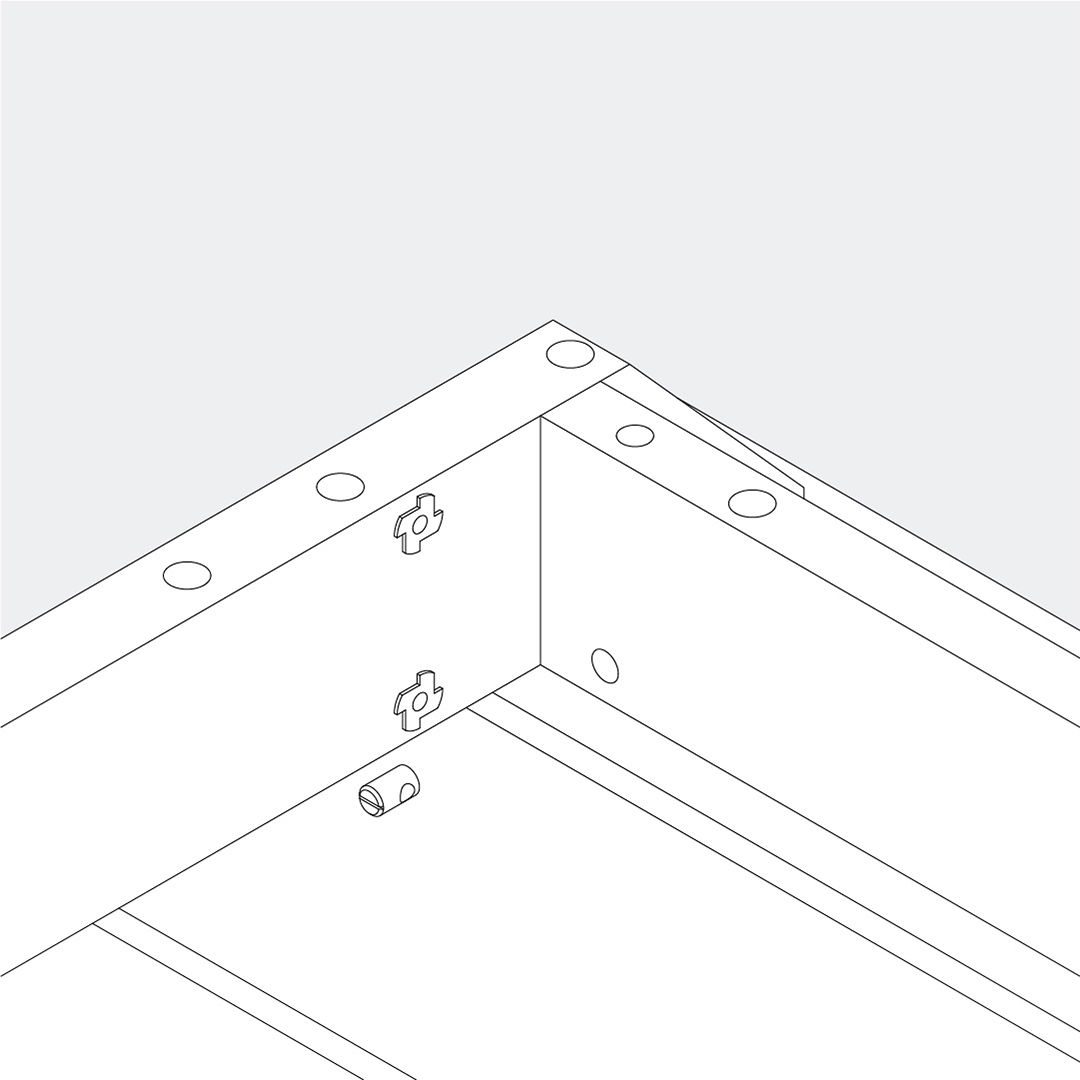

Place the tabletop segment flat on the floor with the top surface facing down. Insert the 20mm barrel nuts into the vertical holes and the 16mm barrel nuts into the side holes.

#2

None

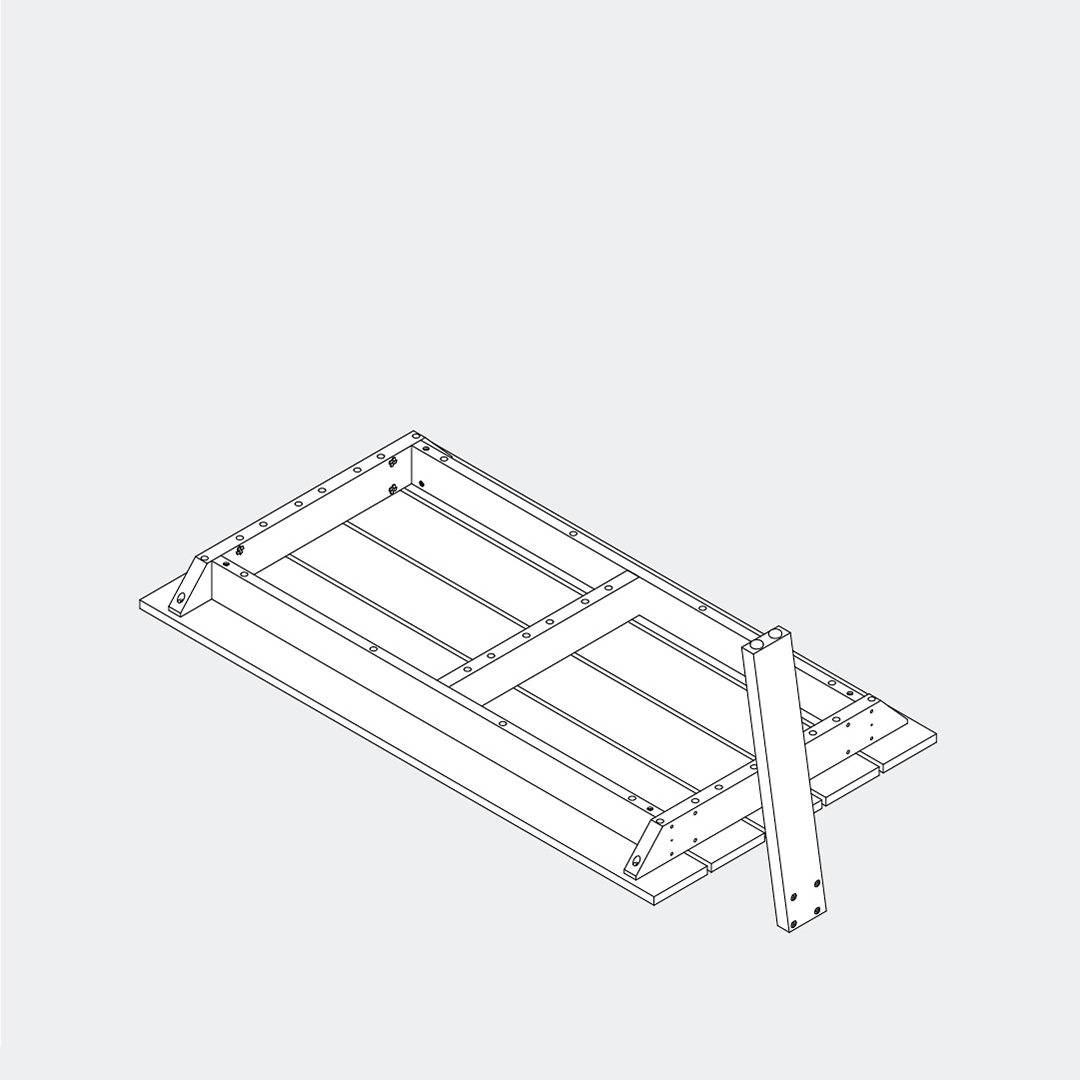

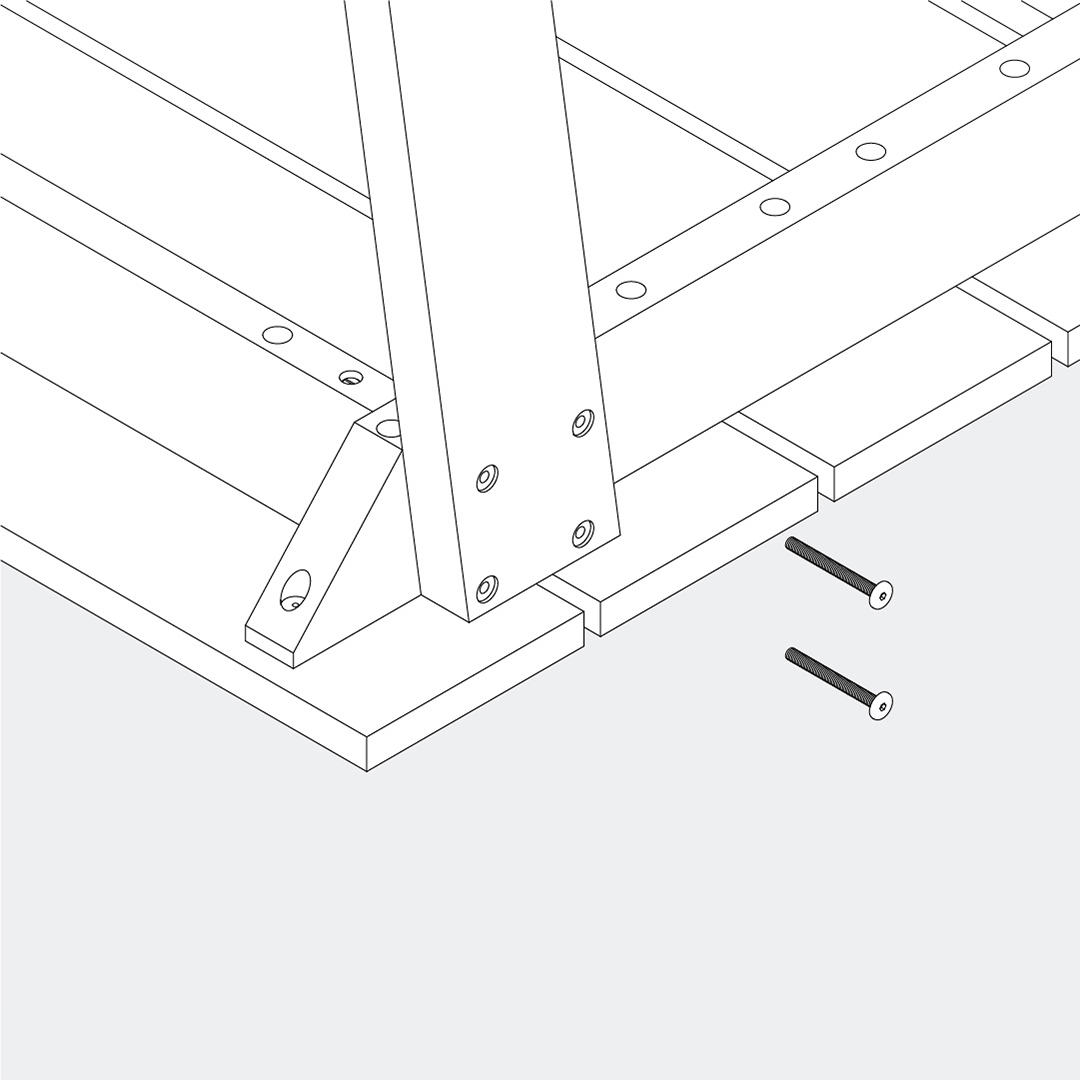

Attach the leg to the tabletop using two M6 × 100 screws, two M6 × 60 screws, and the Allen key. Make sure to use the correct screws for the corresponding holes as shown in the illustration.

#3

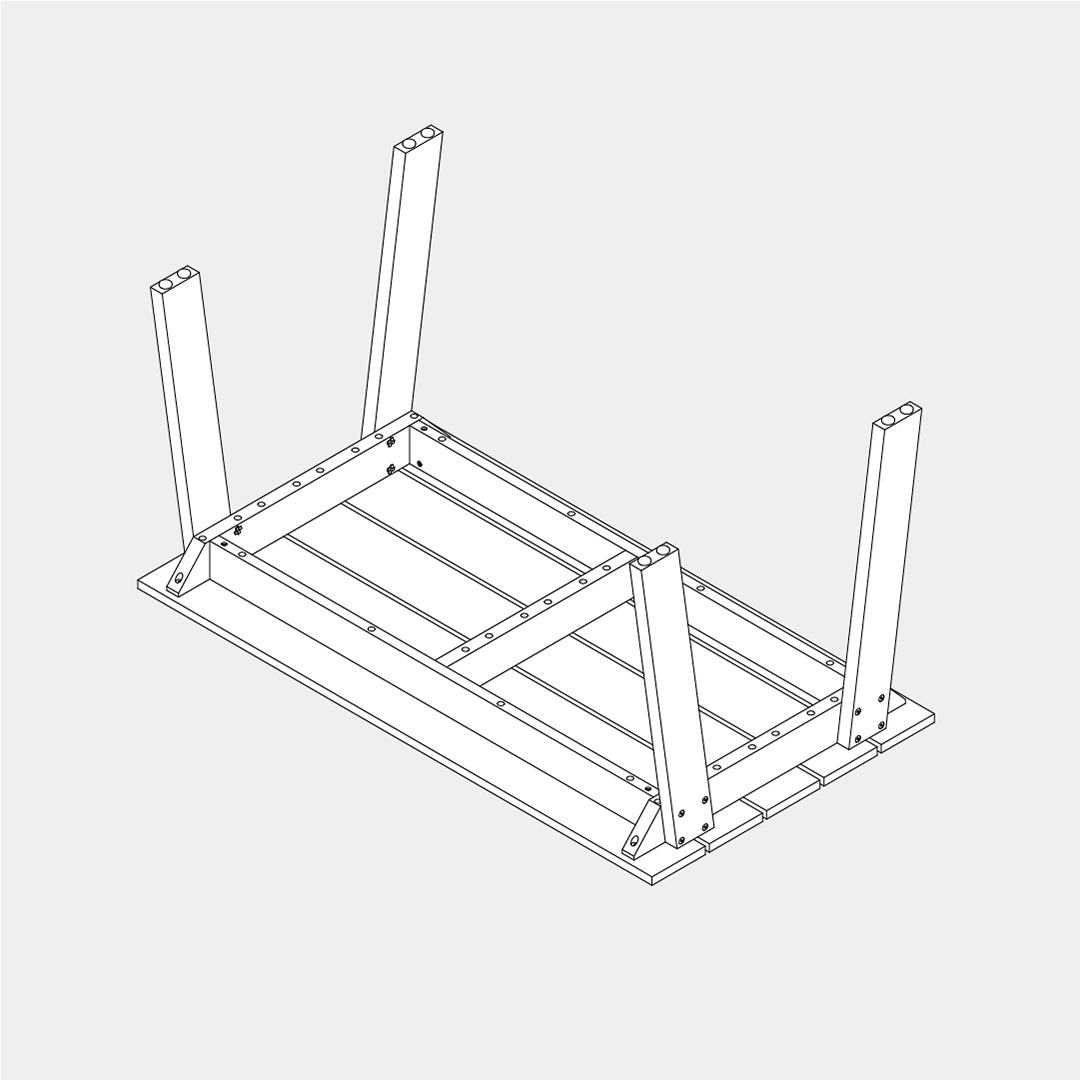

Repeat the step for the remaining legs.

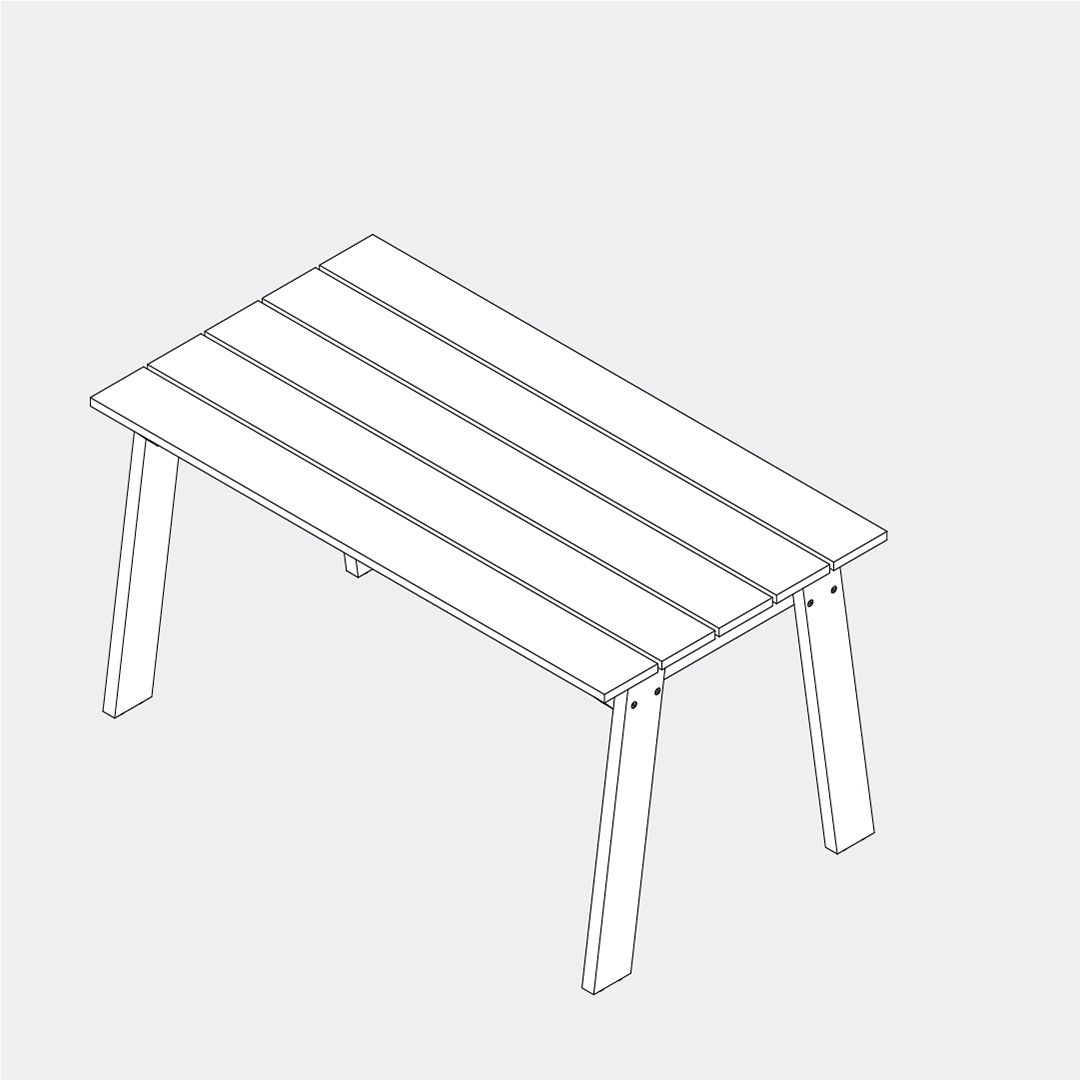

Enjoy your new piece of furniture! To avoid damages, always make sure to lift the furniture when moving it.

#4

None
