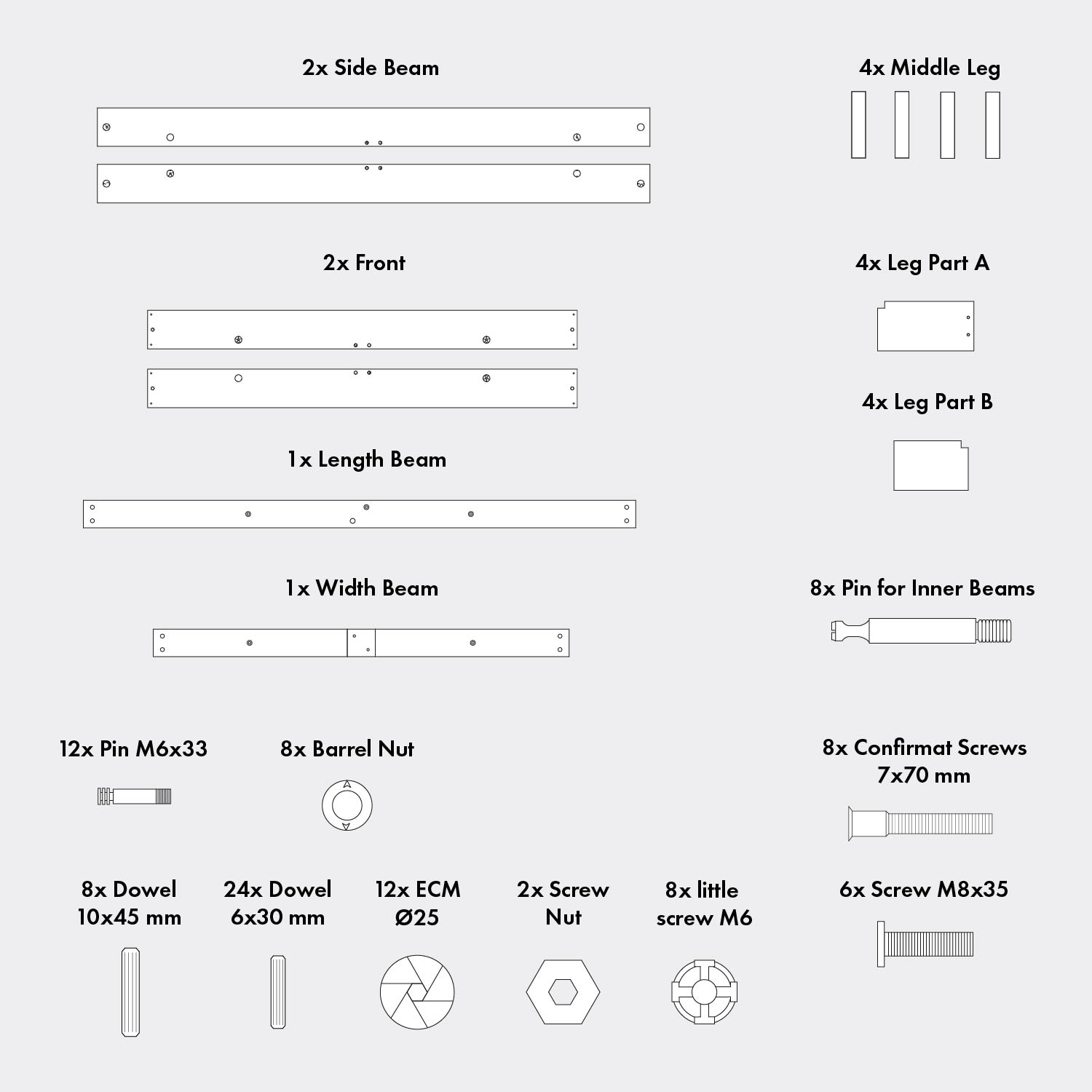

Check if you’ve received all 2 boxes without any damages and all the elements are inside. If so, you’re good to go! Remember to assemble on a blanket, carpet or to use our cardboard.

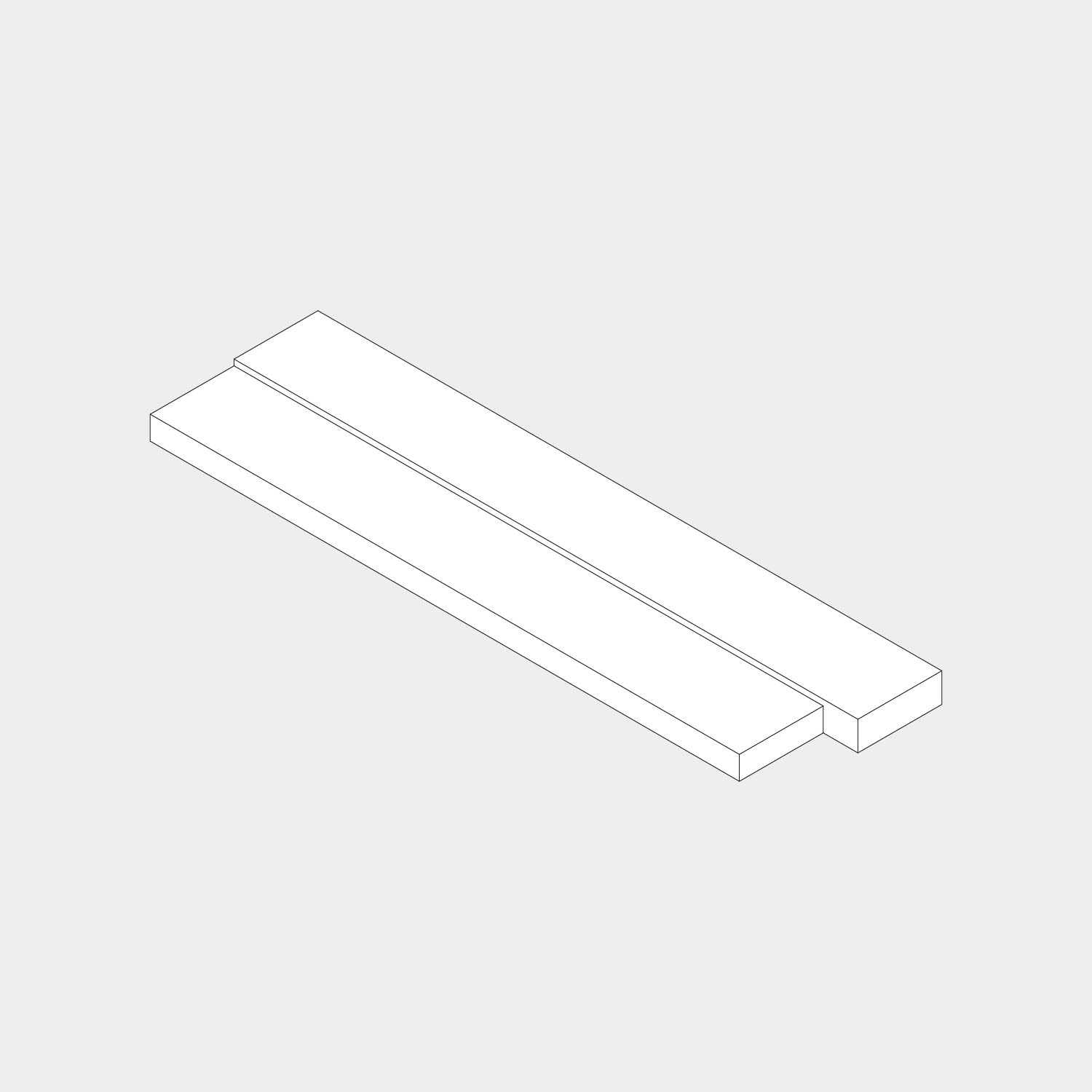

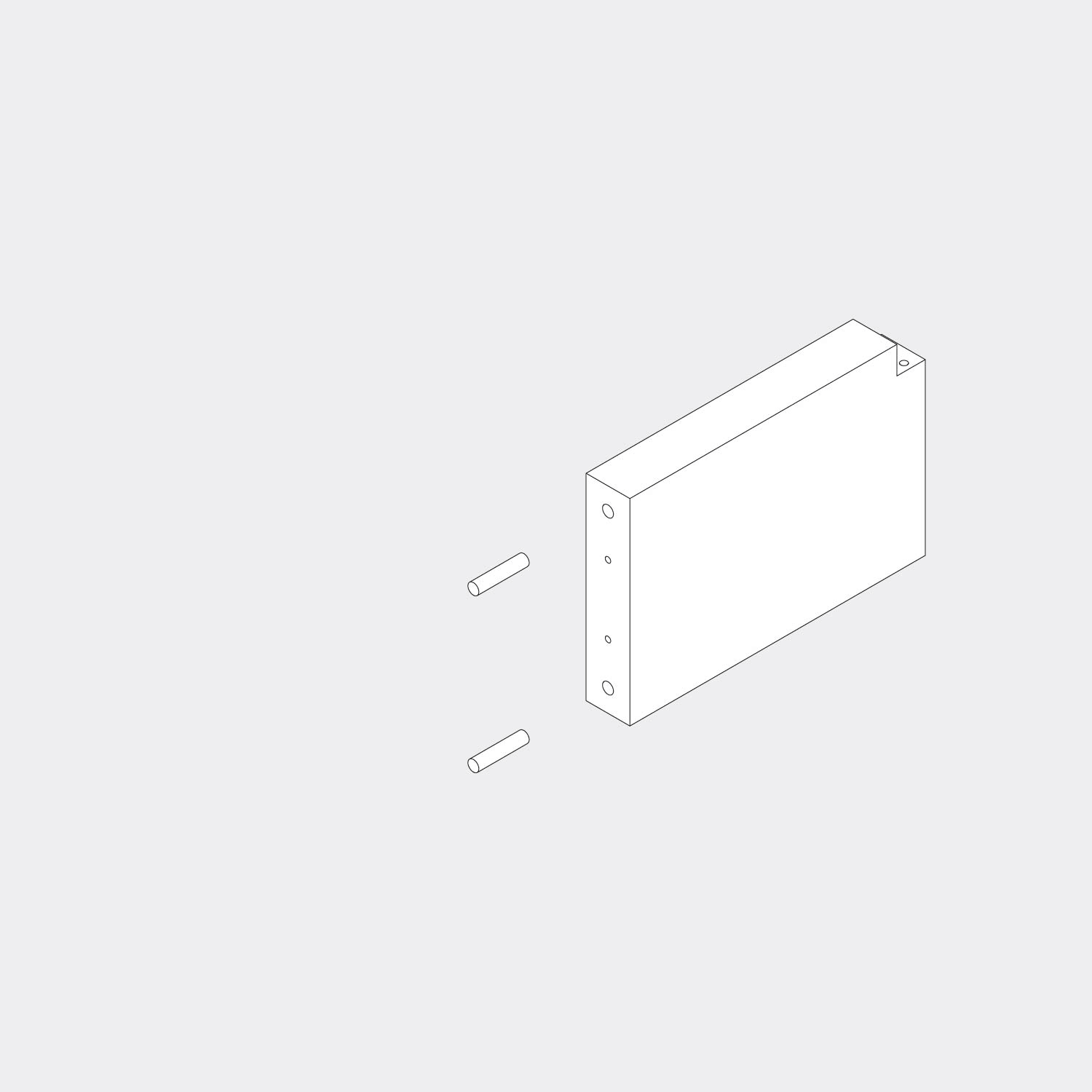

Assemble the legs: join Leg Part A and Leg Part B for each leg and insert the fittings and dowels. For each leg, use 2x Dowel 10x45 mm and 2x Confirmat Screws 7x70 mm to screw the parts together. Then fit the leg by inserting into the marked holes: 4x Dowel 6x30 mm and 2x Pin M6x33 for the ECM Ø25 connectors.

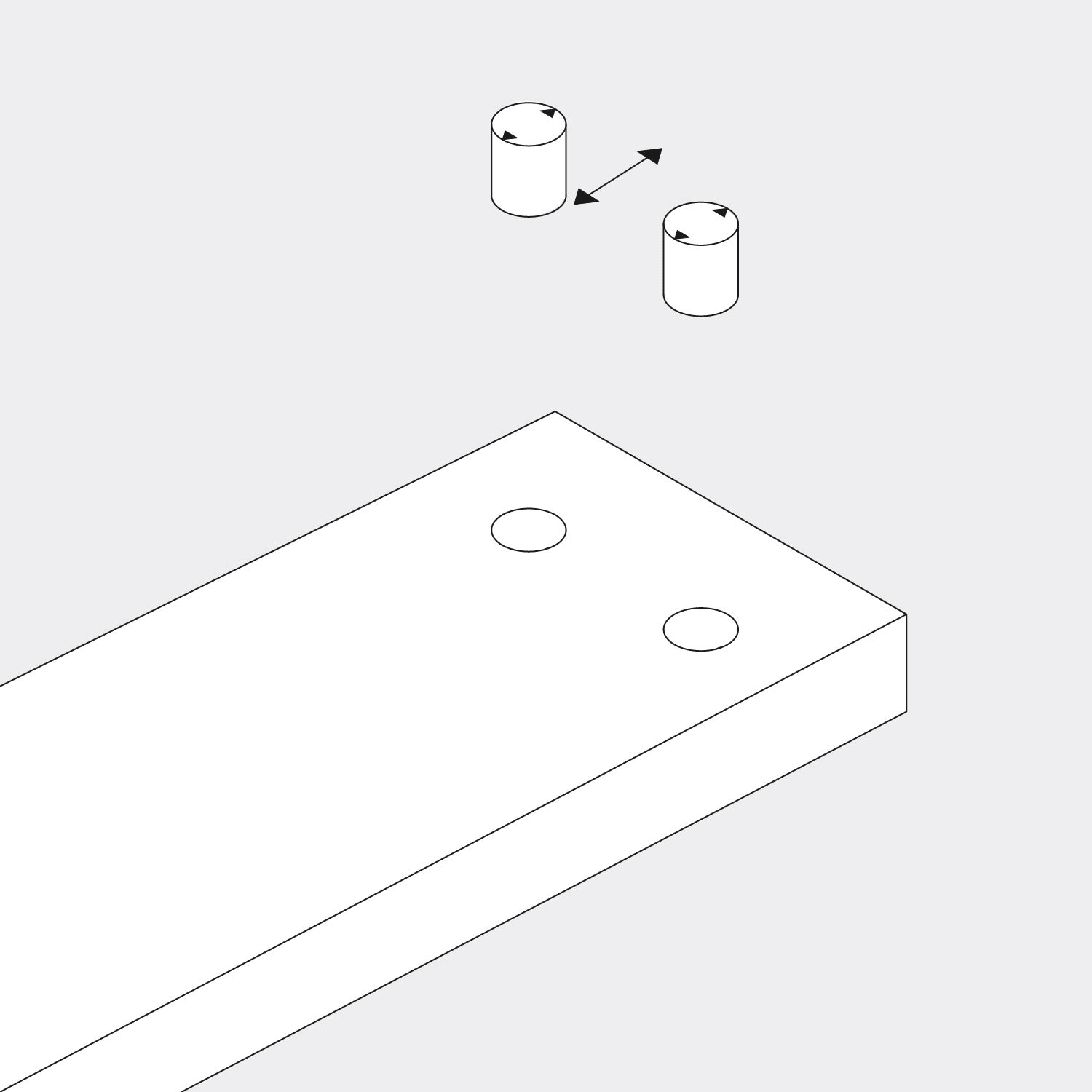

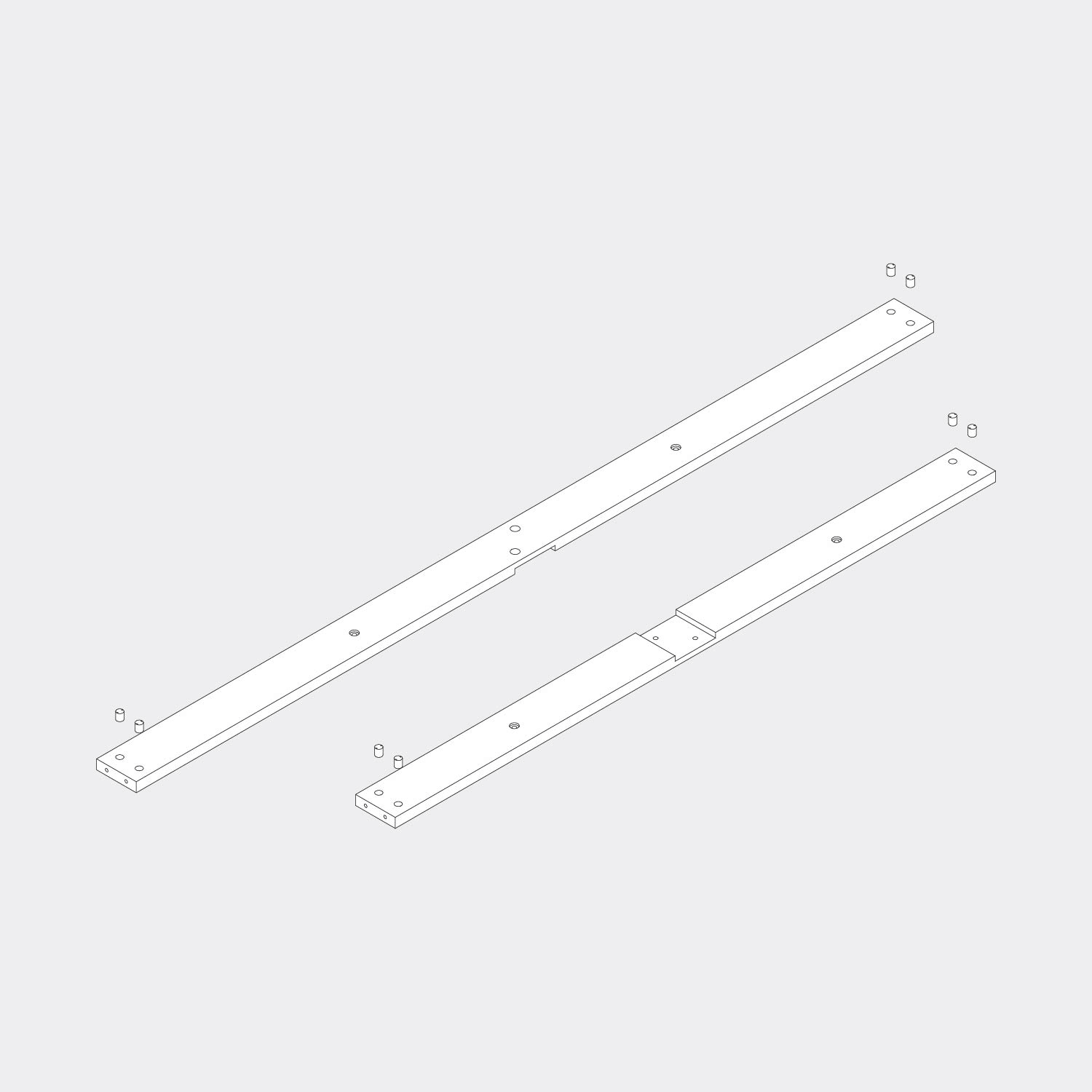

Place 8 Barrel Nuts into the length and width beam. Make sure their directional markings are aligned with the direction indicated in the animation.

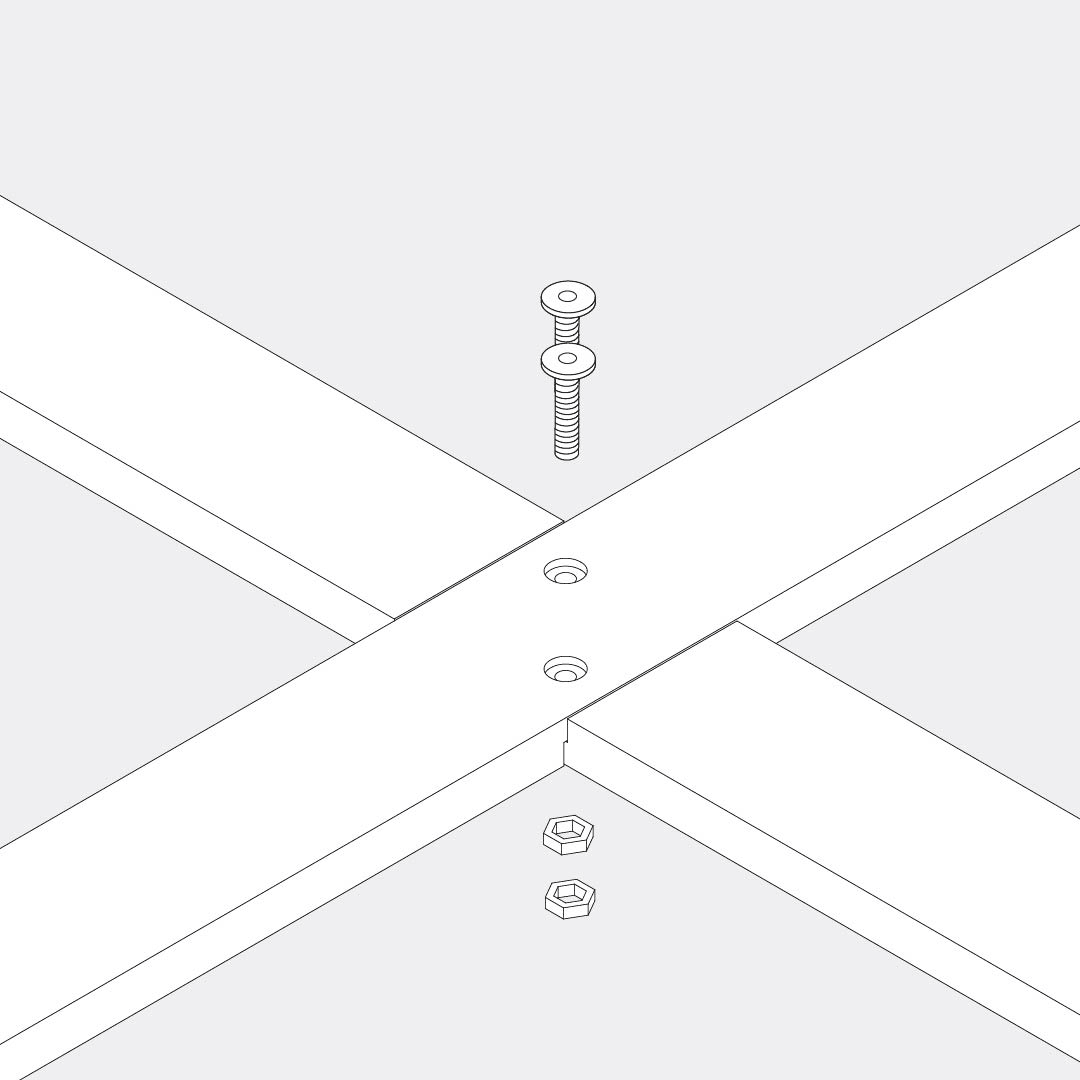

Connect the Length Beam and Width Beam as pictured, using 2x M8x35 Screws and Screw Nut.

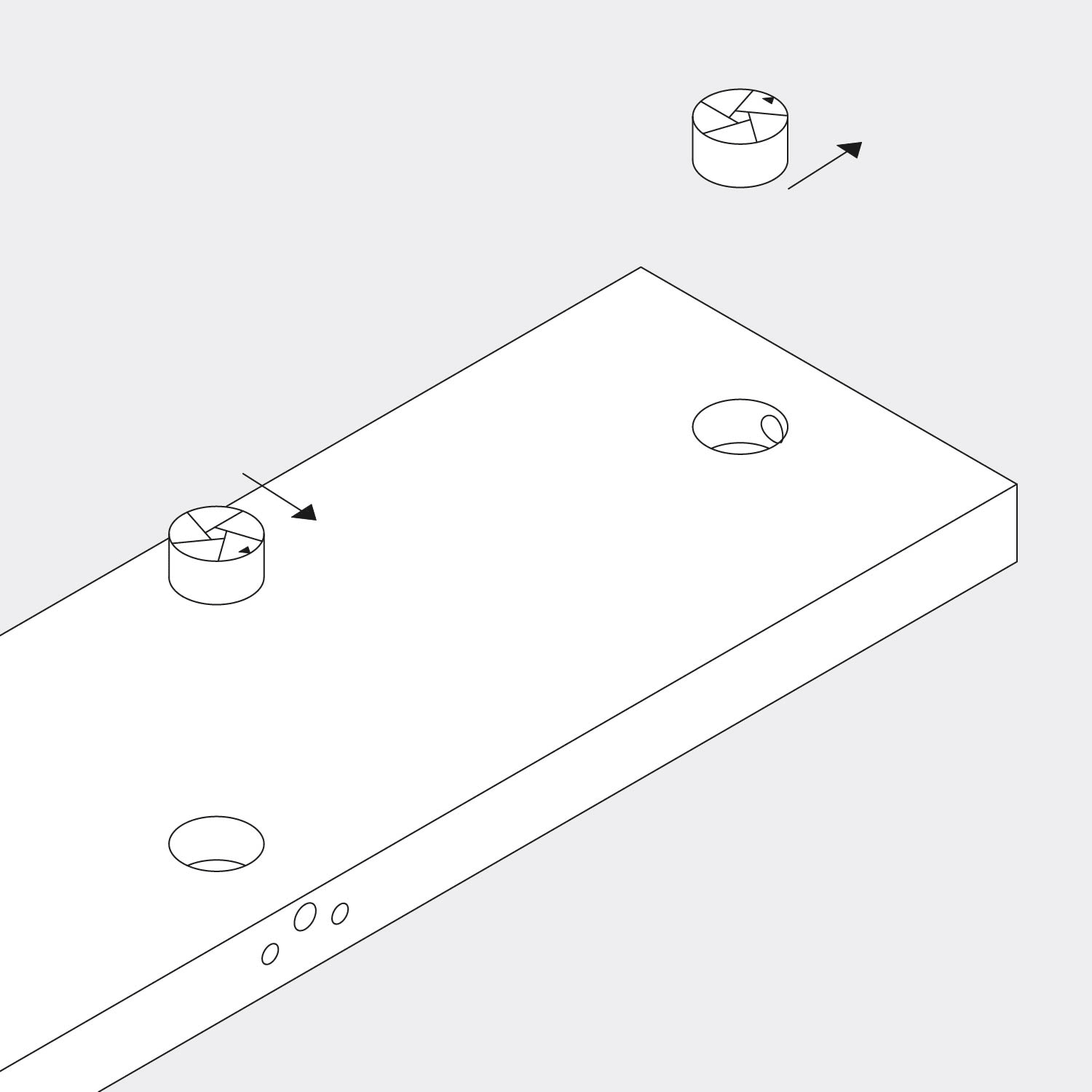

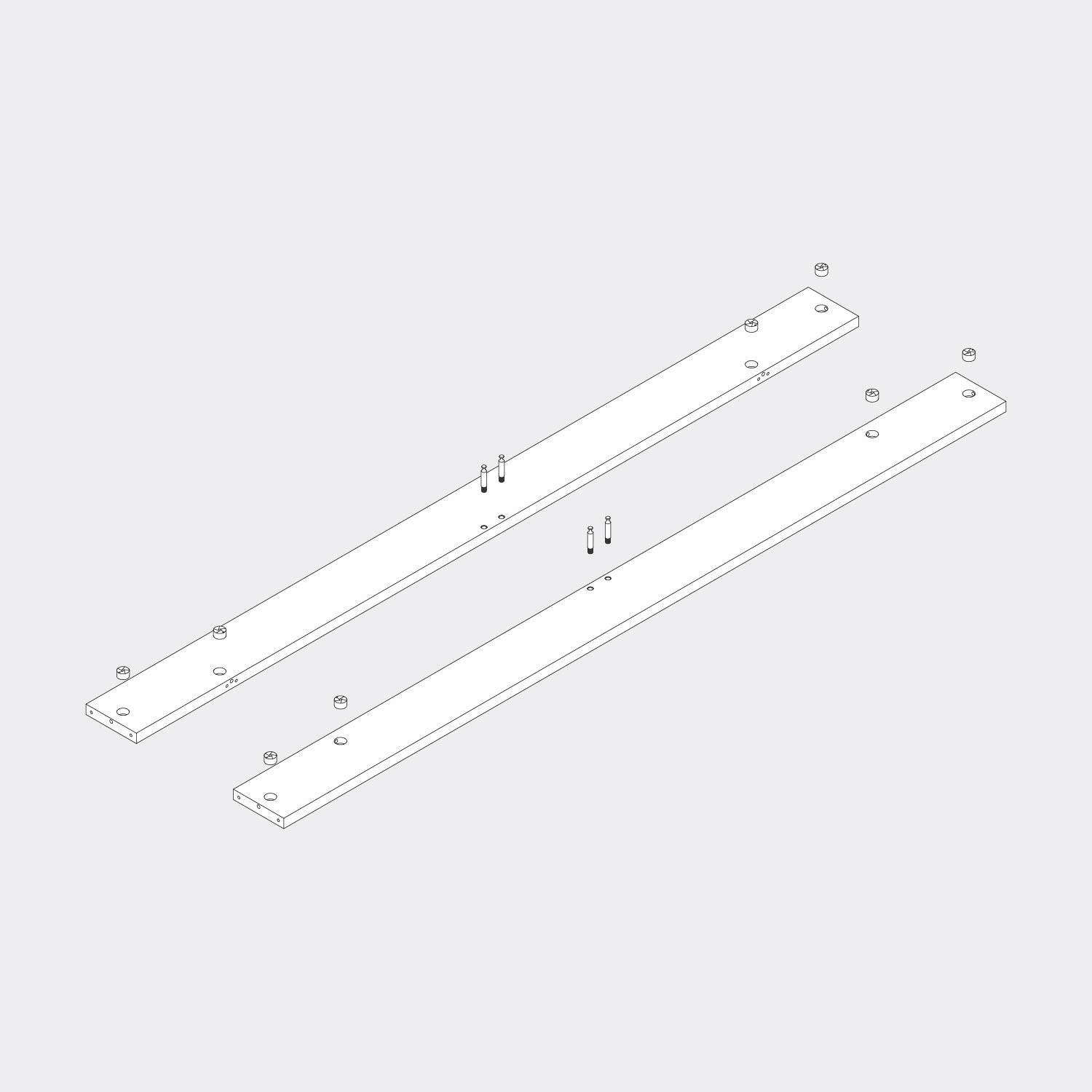

Fit both Side Beams, making sure the fittings are oriented correctly, as shown in the illustration. Insert 4x ECM Ø25 and 2x Screw Nut into the prepared holes for the Barrel Nuts.

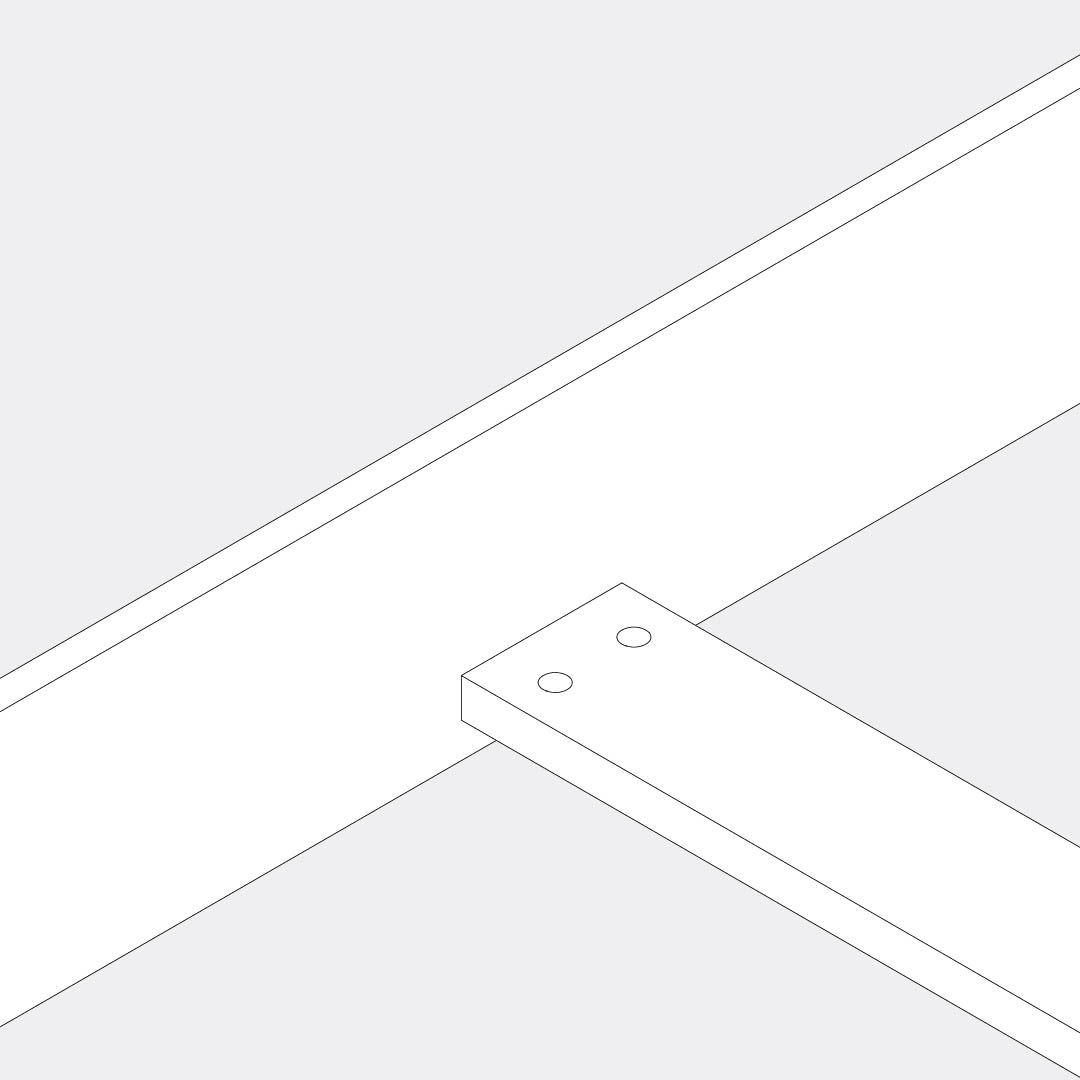

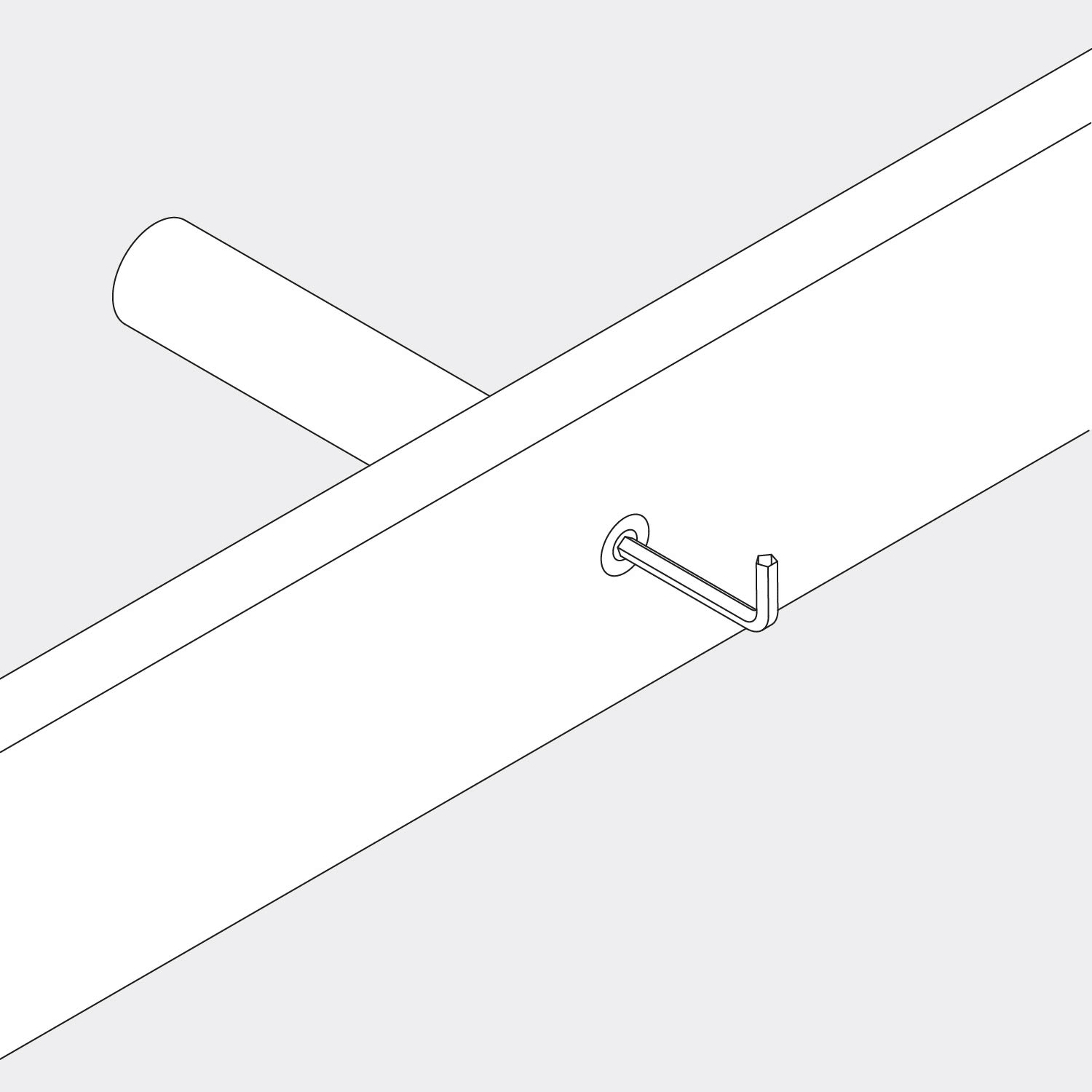

Slide the Side Beams onto the middle fittings of the inner construction. When the parts are correctly connected, insert the little screw M6 and tighten it as shown in the animation.

Fit both Front beams, paying attention to the direction of each fitting. At each end, insert 4x Dowel 6x30 mm and 2x Pin M6x33 for the ECM Ø25 connectors. Then add 2x ECM Ø25 and 2x Barrel Nut.

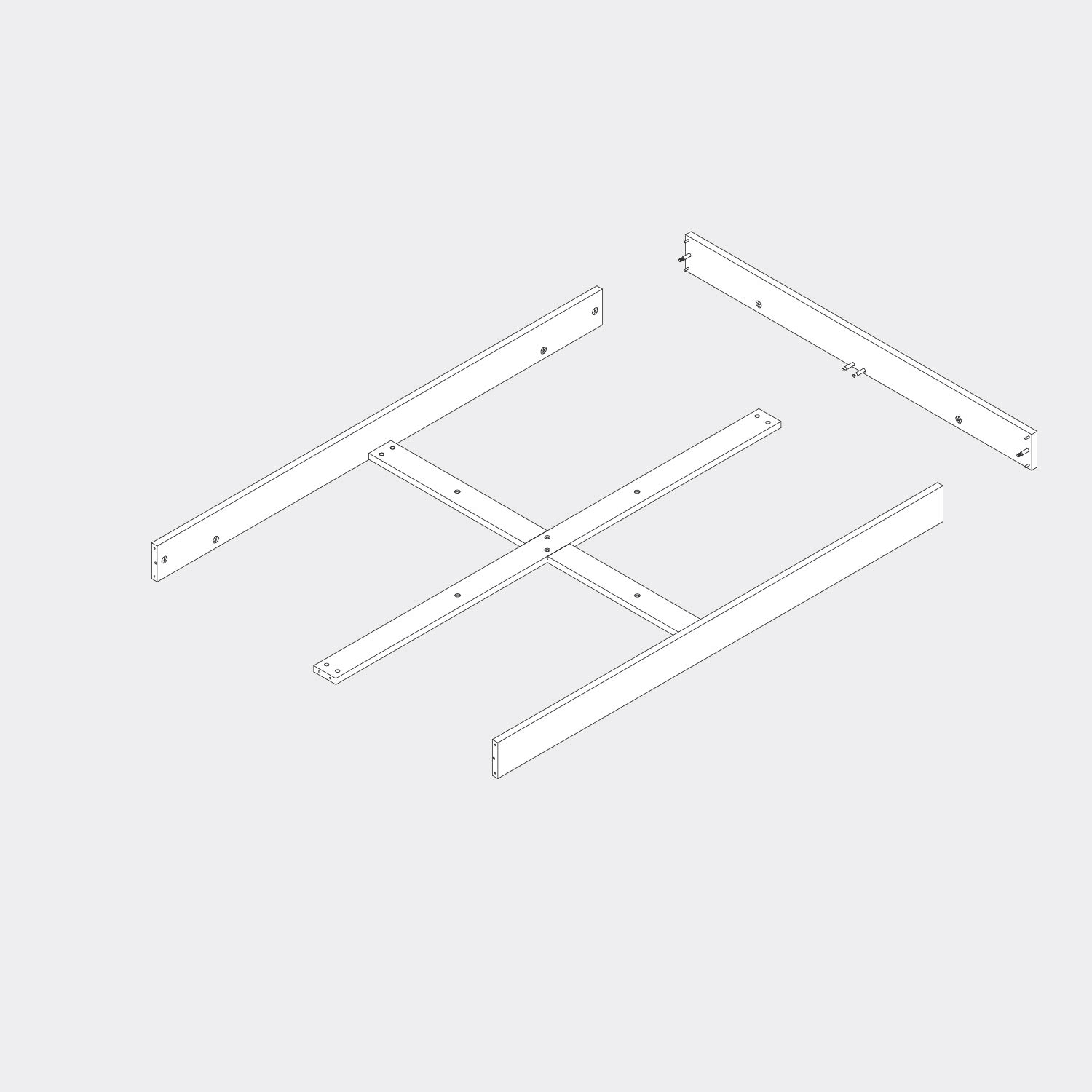

Connect the Front to the frame by sliding it onto the prepared fittings. First tighten the ECM Ø25 connectors, then insert the little screw M6 and tighten as shown in the animation.

Carefully turn the entire bed frame onto its side.

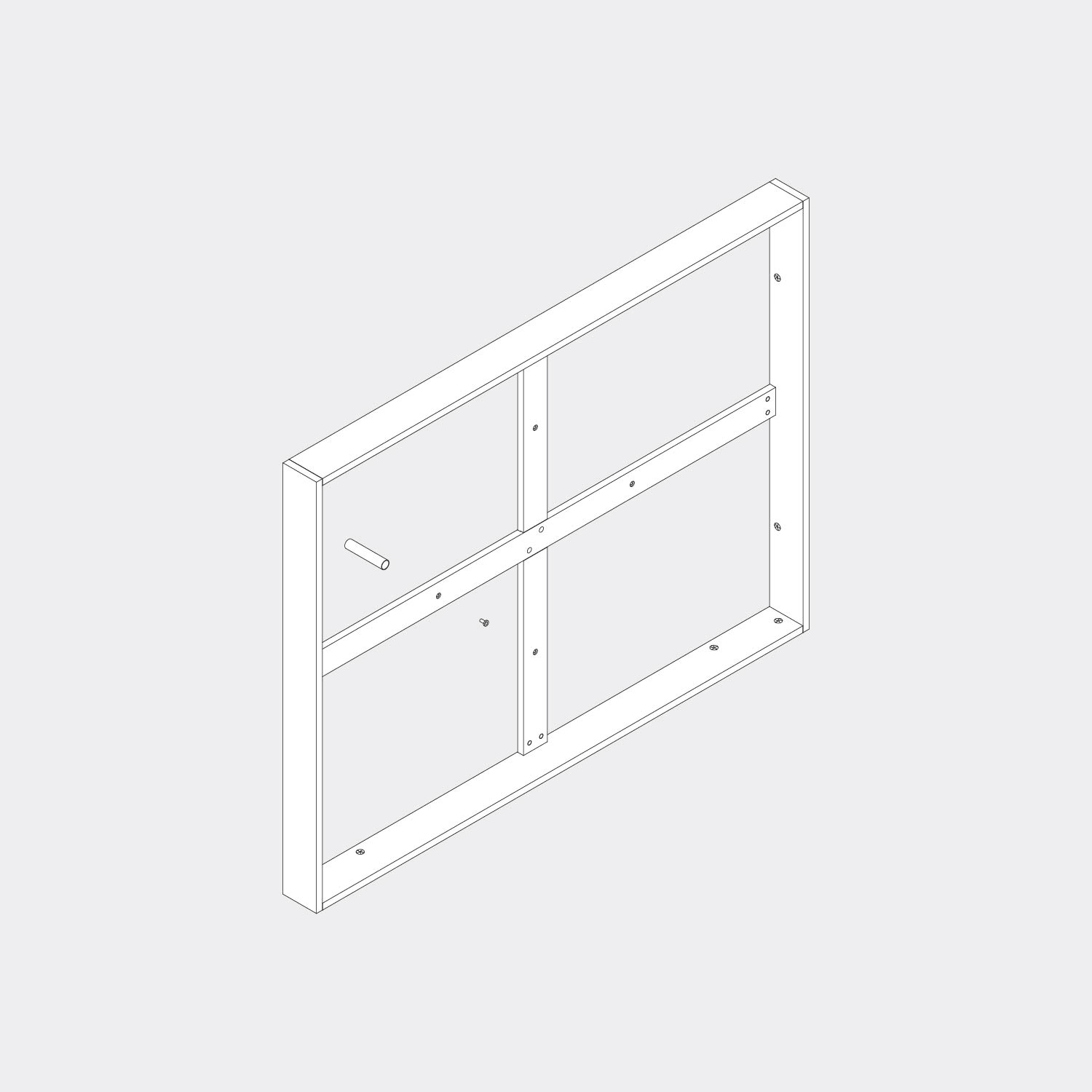

Attach the Middle Legs using the Screw M8x35.

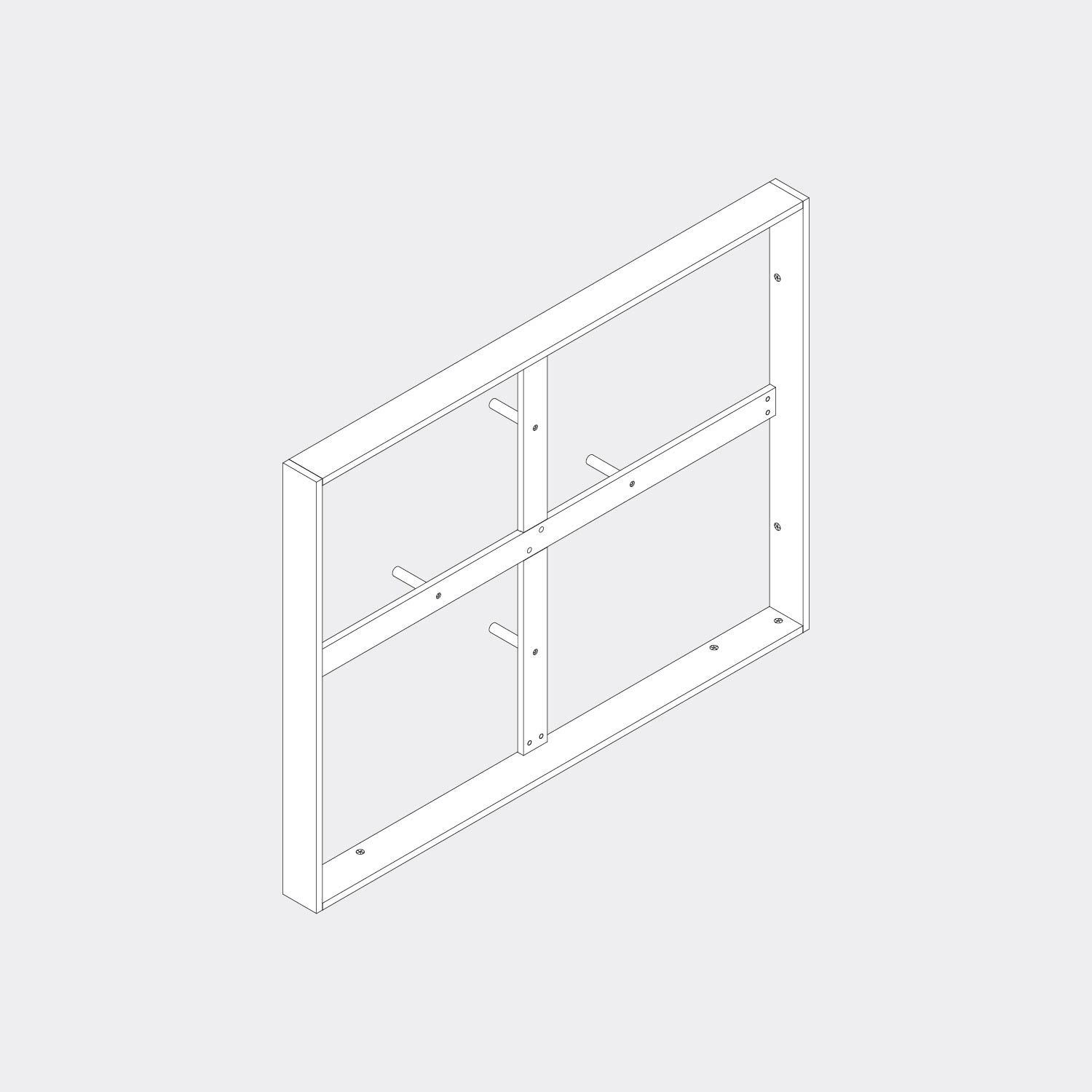

Turn the frame back to the upright position.

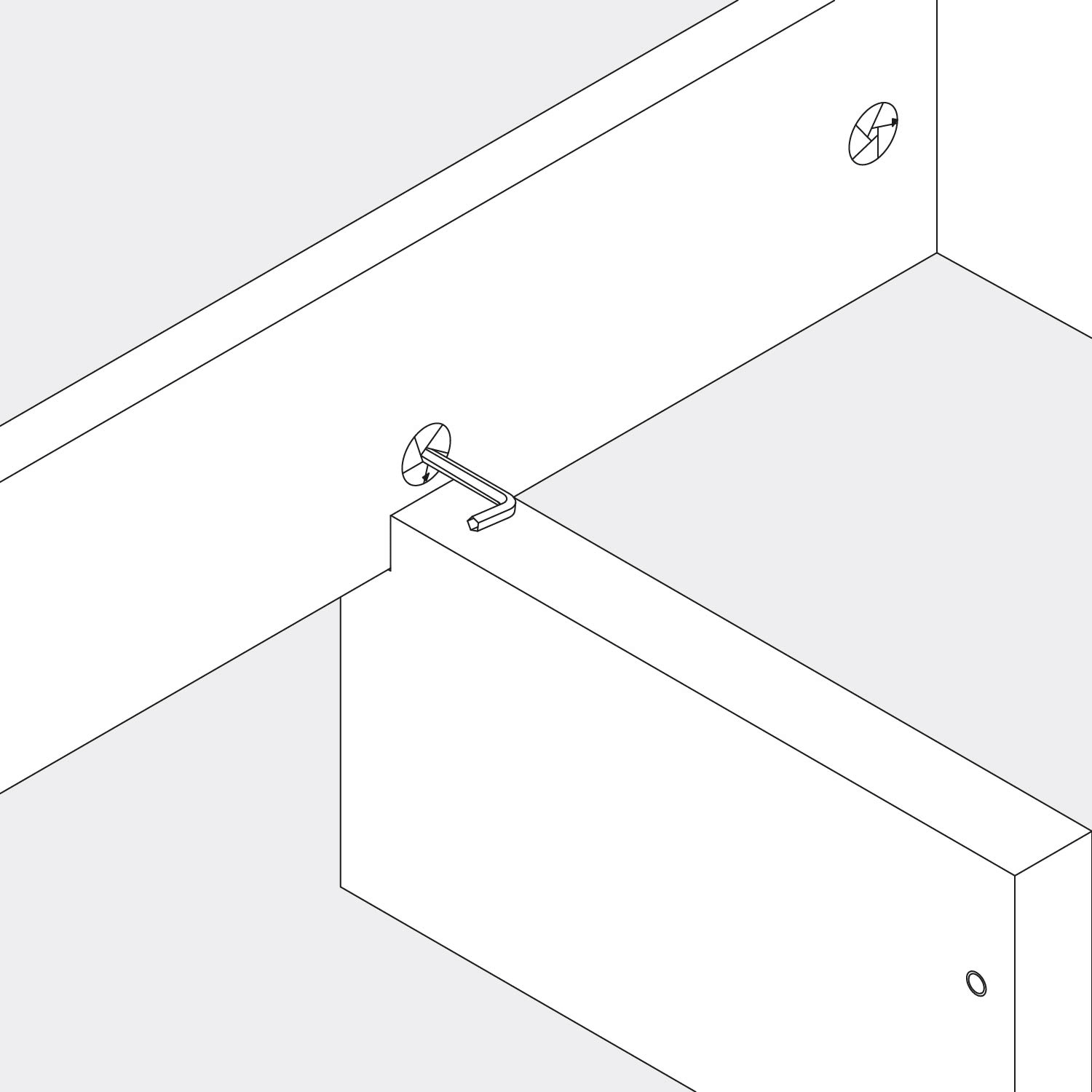

Insert the dowels of the corner legs into the corresponding holes and lock them in place using ECM Ø25 connectors. Repeat this process for each remaining leg until all corners are securely fixed.
