Assembly Manual

Hido TV Stand Doors Melamine

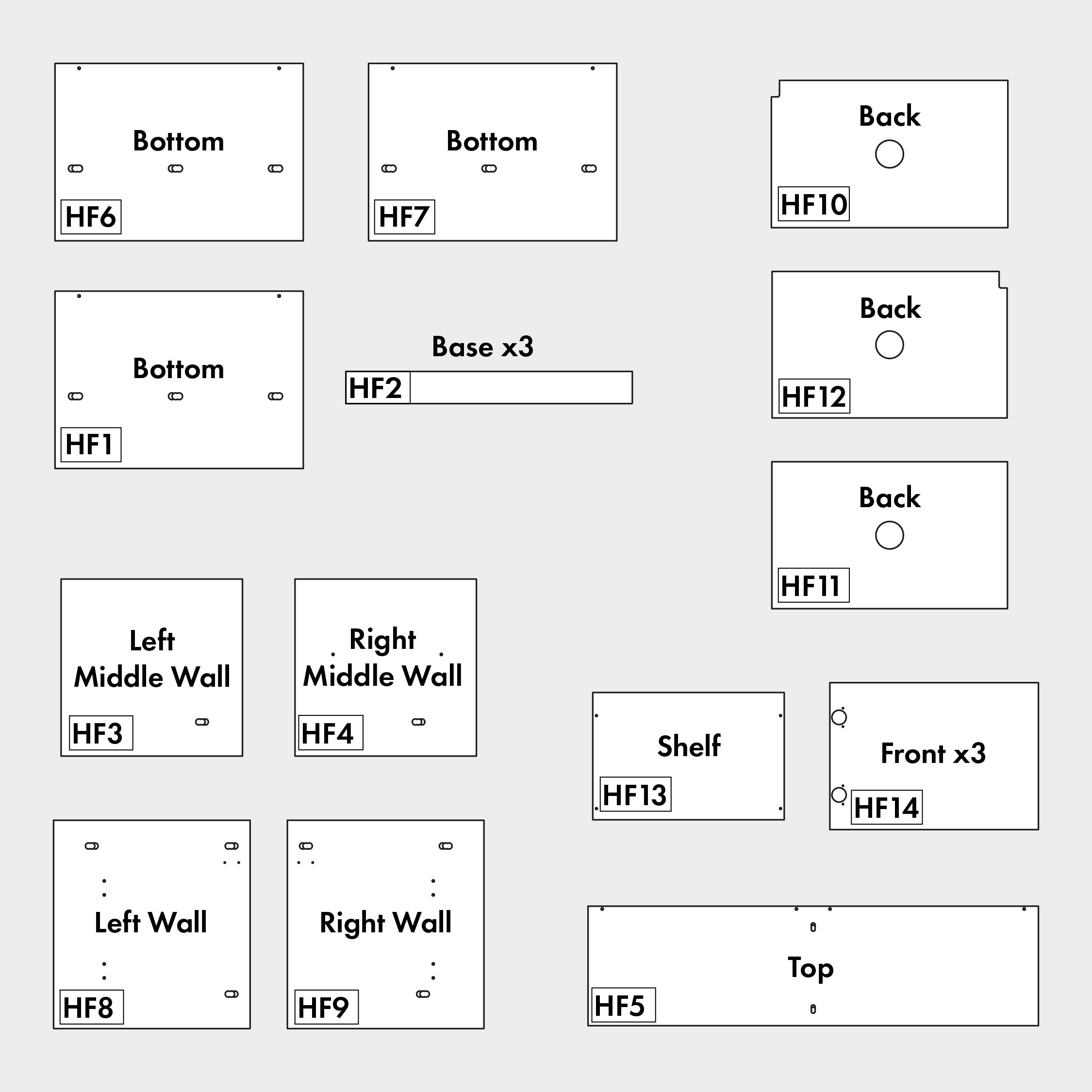

Check if you’ve received all boxes without any damages. If so, you’re good to go! Remember to always assemble furniture on a blanket, carpet or on the cardboard you got from us.

#1

None

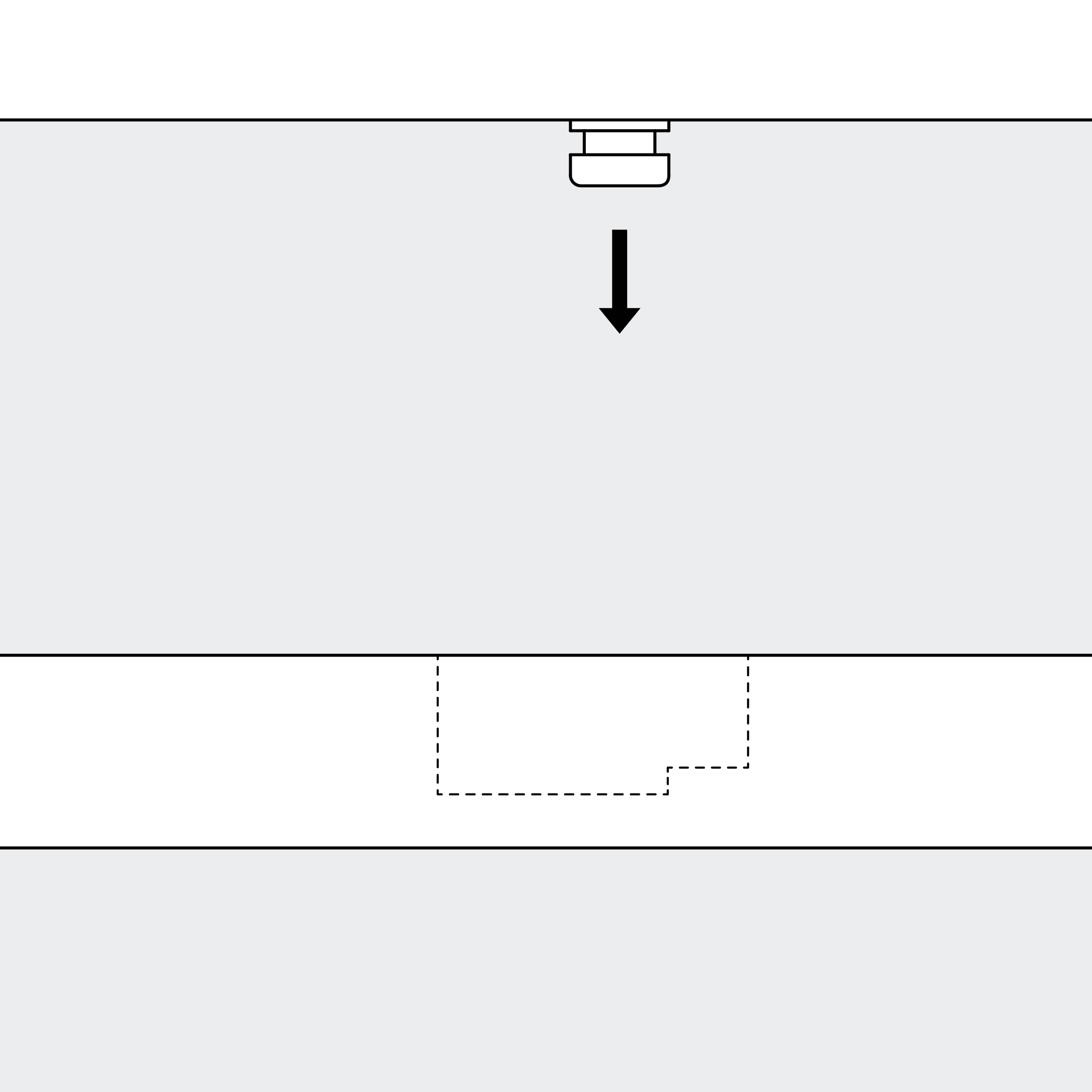

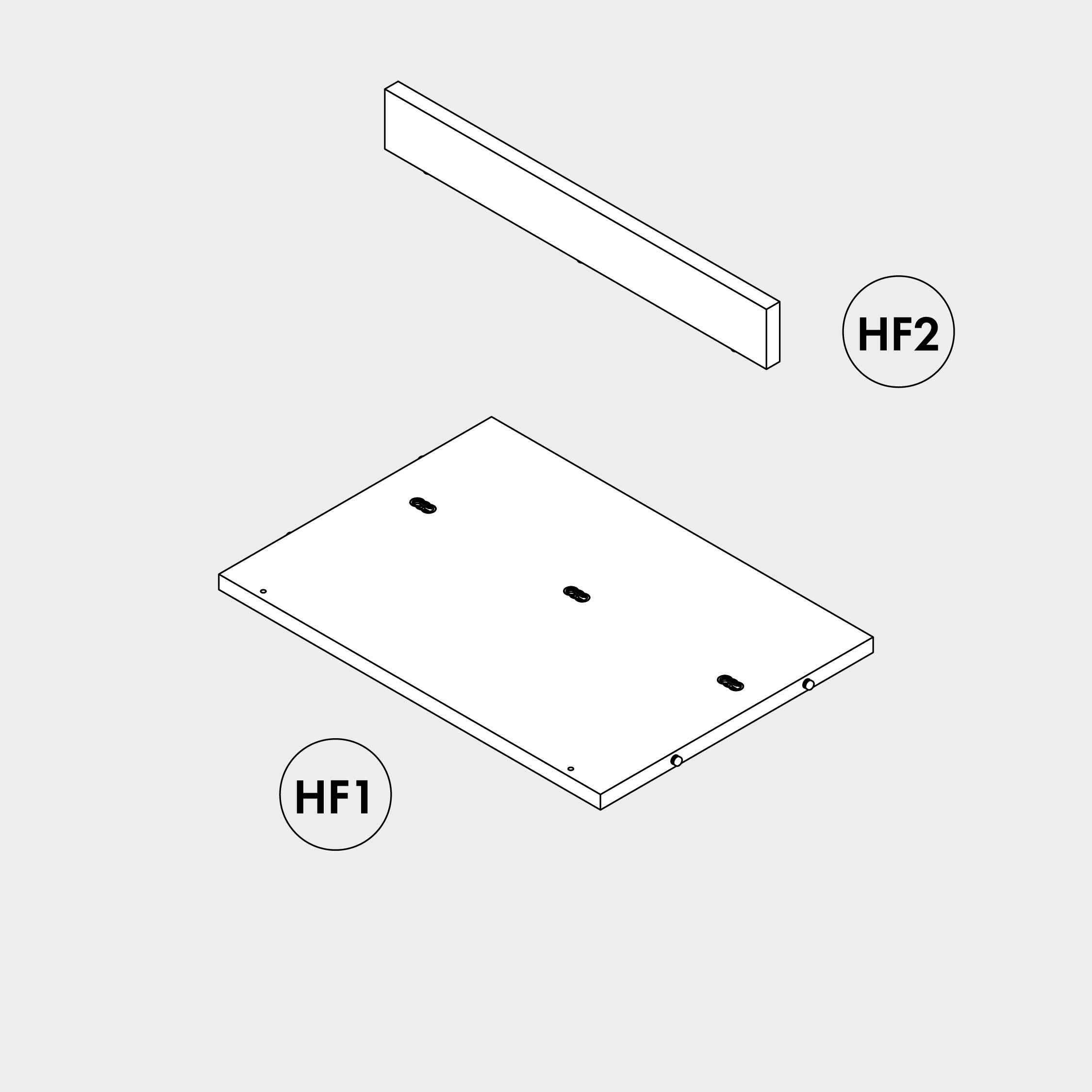

Connect parts HF1 and HF2 as shown in the illustration. Insert the pins into the holes, then slide the parts to the left until you hear a click.

#2

None

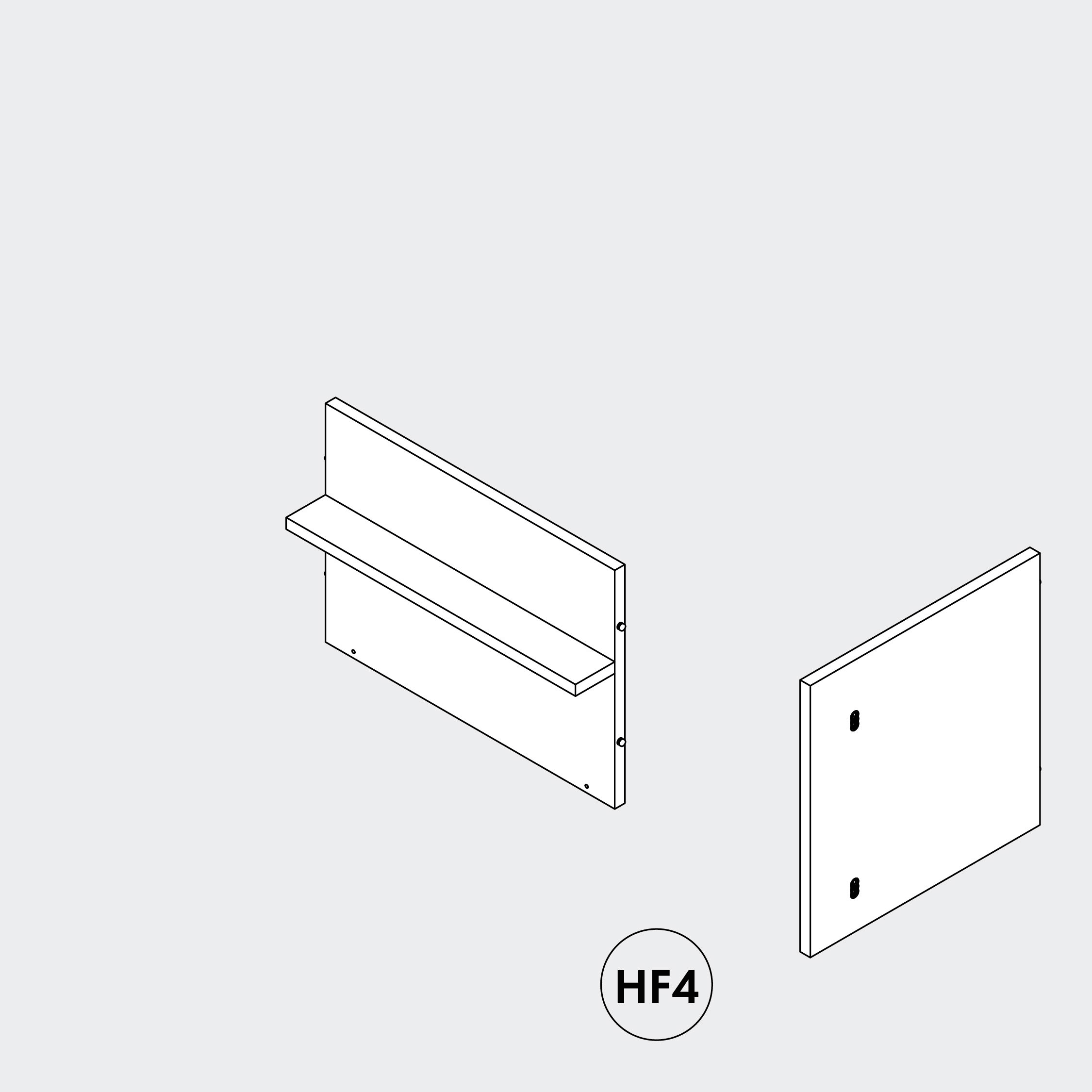

Attach parts HF3 and HF4 to the assembled structure as shown in the illustration. Insert the pins into the holes, then push the parts down until you hear a click.

#3

None

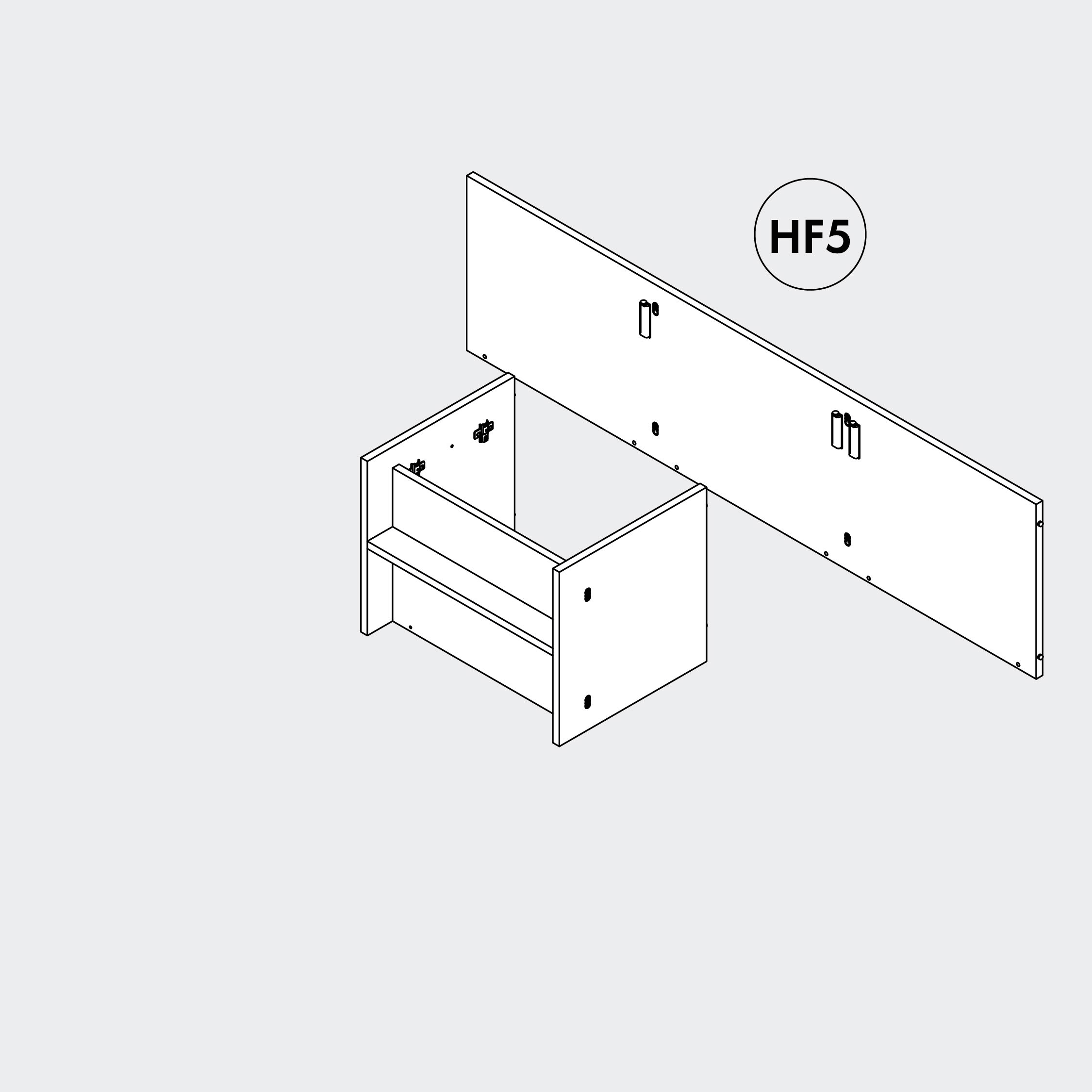

Next, install part HF5 as shown in the illustration. Insert the pins into the holes, then push the part down until you hear a click.

#4

None

Connect parts HF6 and HF2 as shown in the illustration. Insert the pins into the holes, then slide the parts to the left until you hear a click.

#5

None

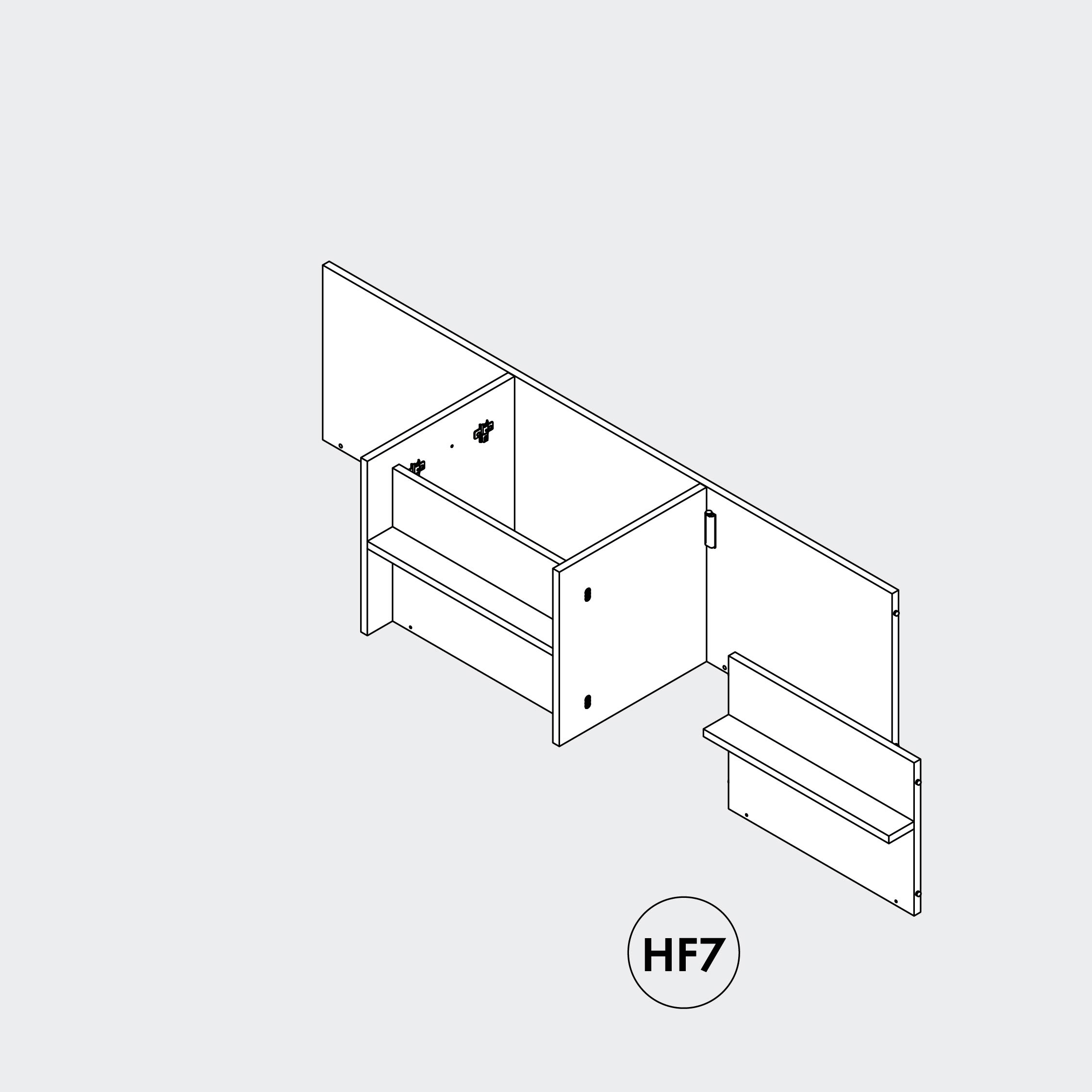

Repeat the previous step with the parts HF7 and (the second) HF2.

#6

None

Attach the assembled parts to the structure prepared in step 4, as shown in the illustration. Insert the pins into the holes, then push the parts down until you hear a click.

#7

None

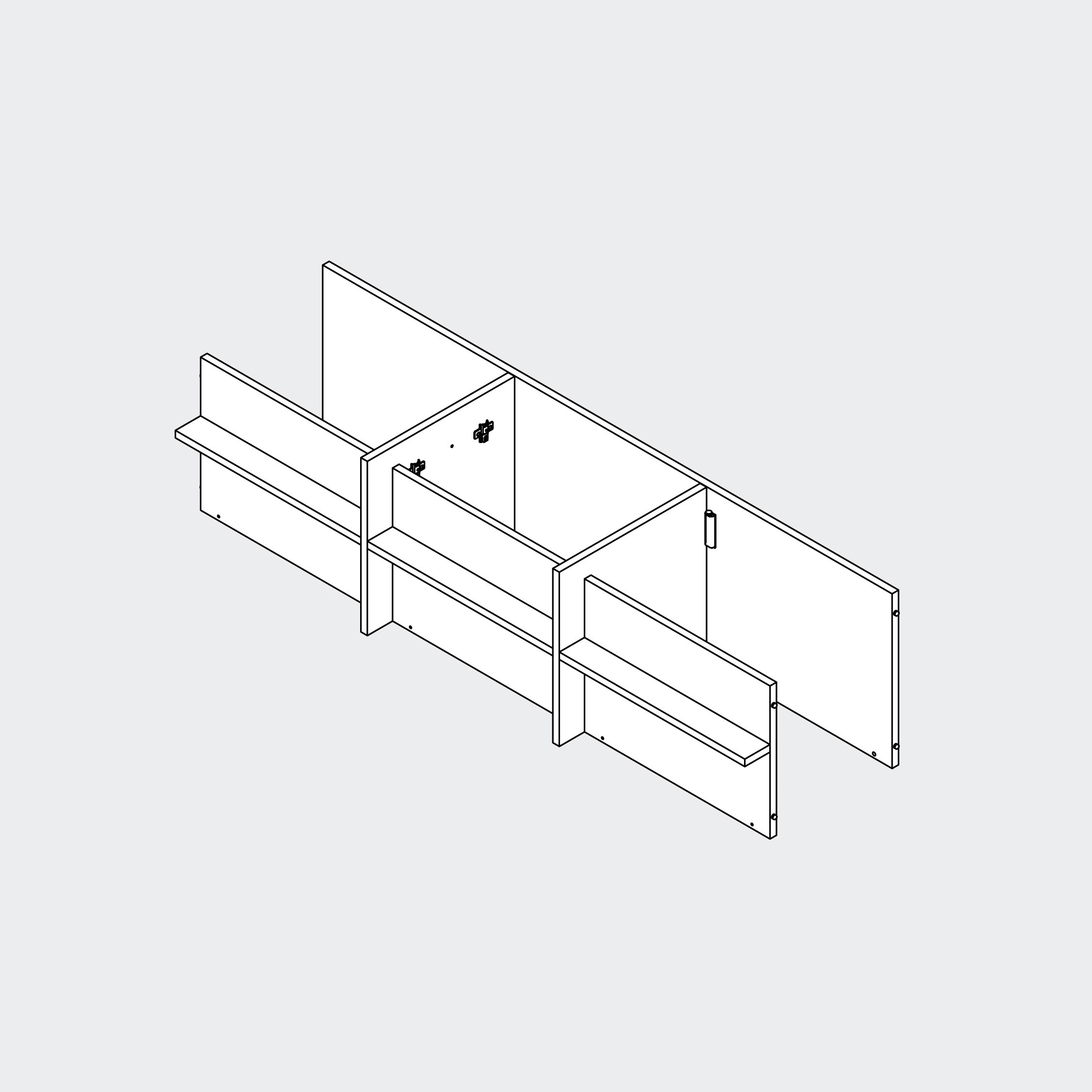

Next, install parts HF8 and HF9 as shown in the illustration. Insert the pins into the holes, then push the parts down until you hear a click.

#8

None

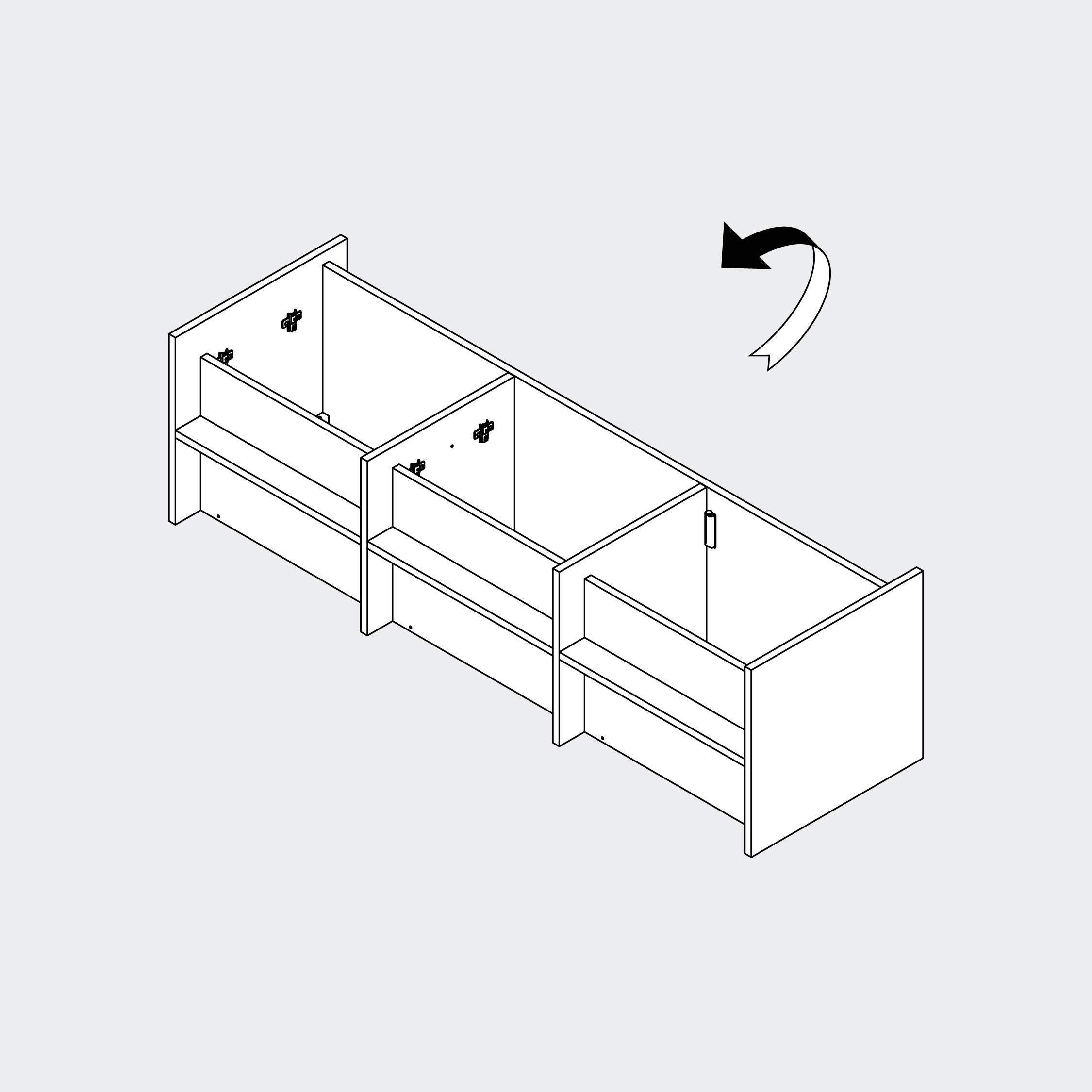

Turn the assembled structure over.

#9

None

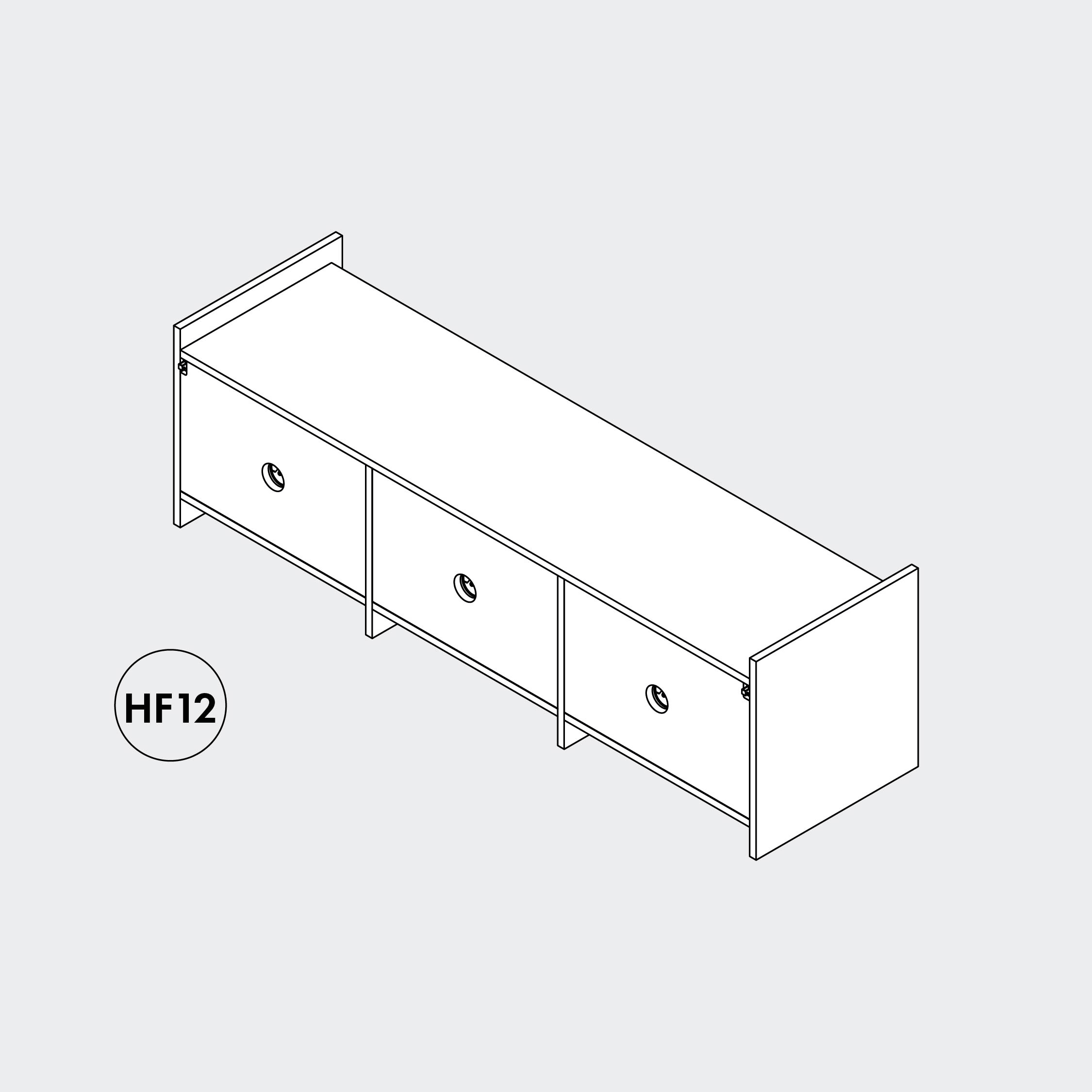

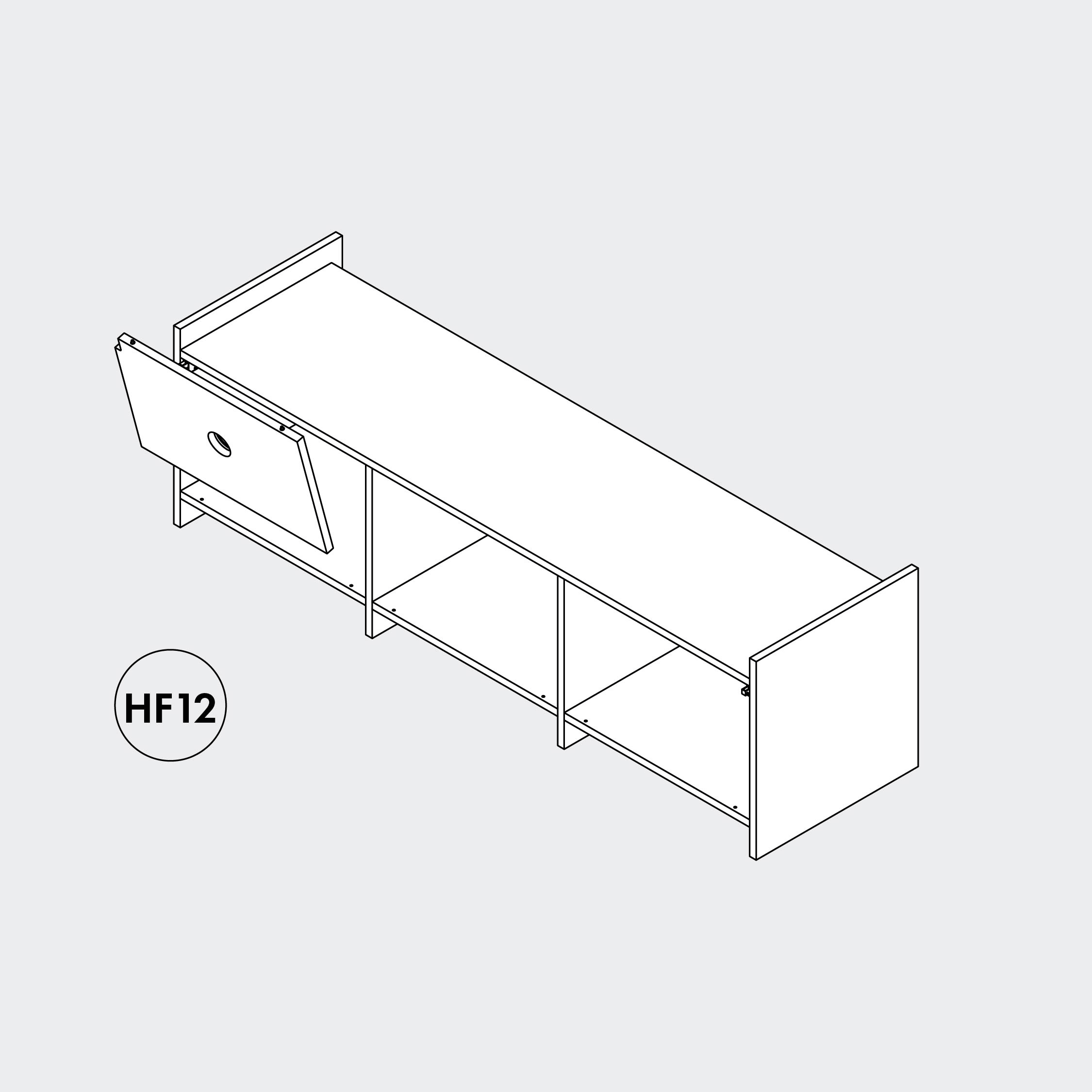

Install back panels HF10, HF11 and HF12. Insert the dowels into the upper section and slide the panels into place at an angle. Press in the pins located at the bottom and position each panel correctly.

#10

None

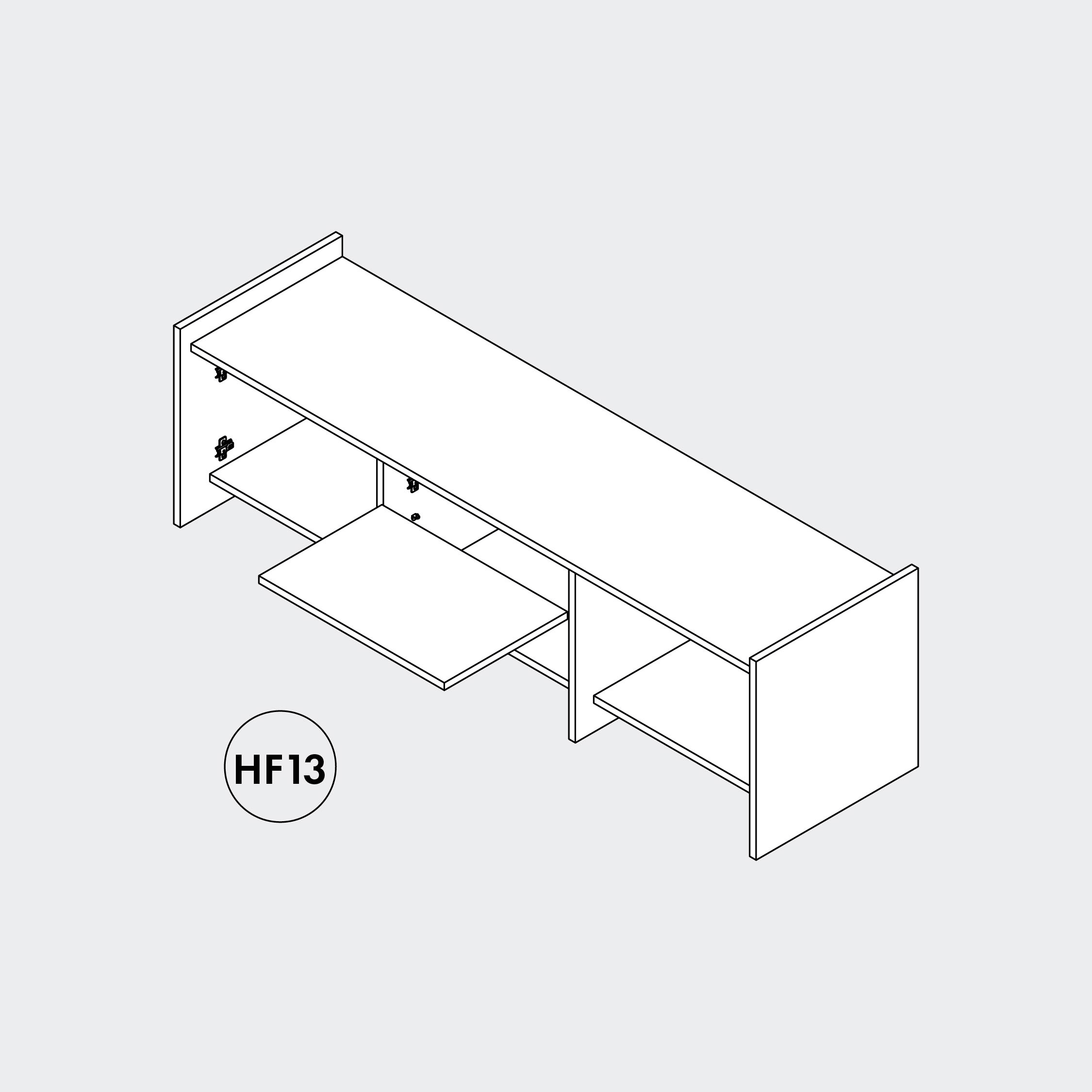

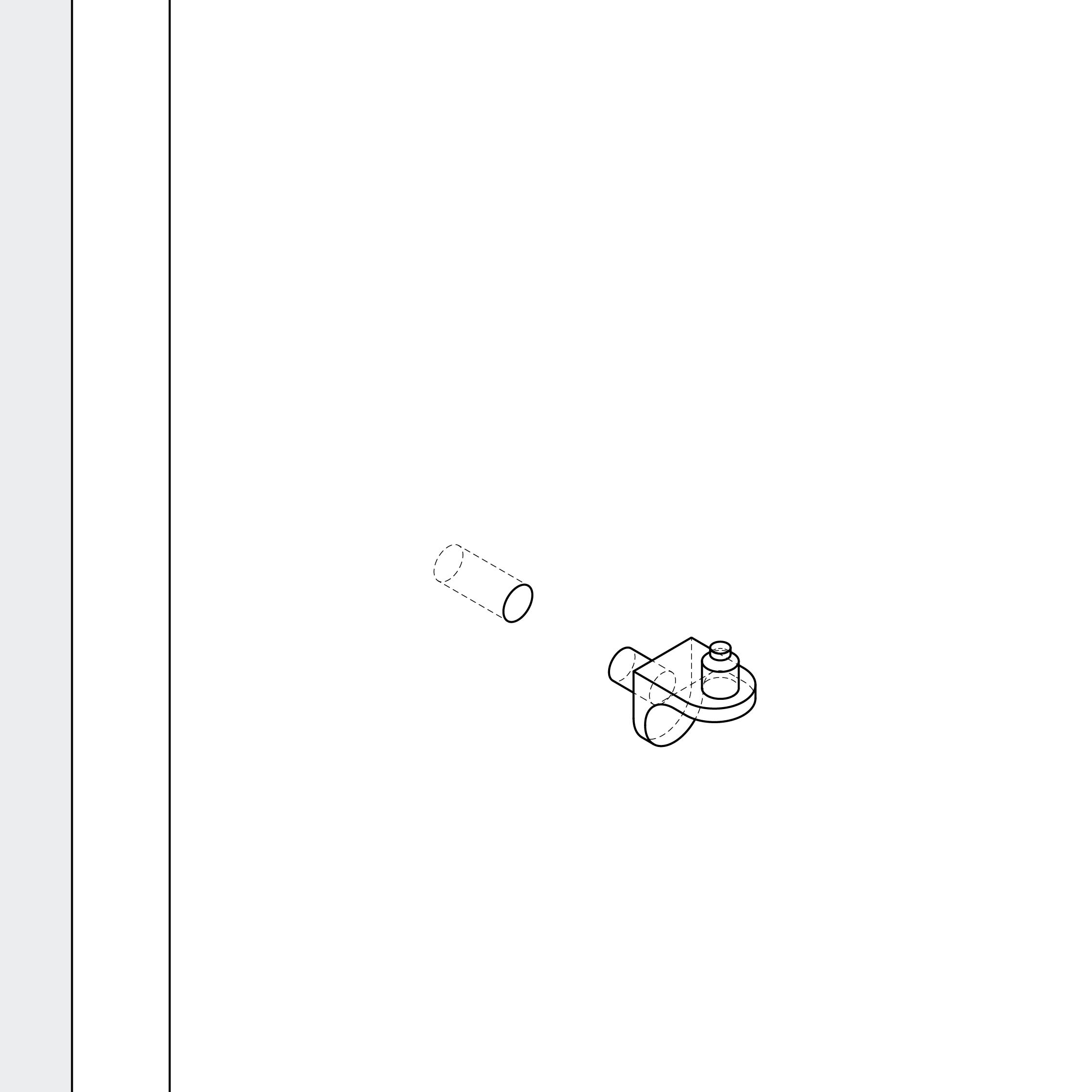

Insert 4 × shelf support pins into the holes. Slide the HF13 part.

#11

None

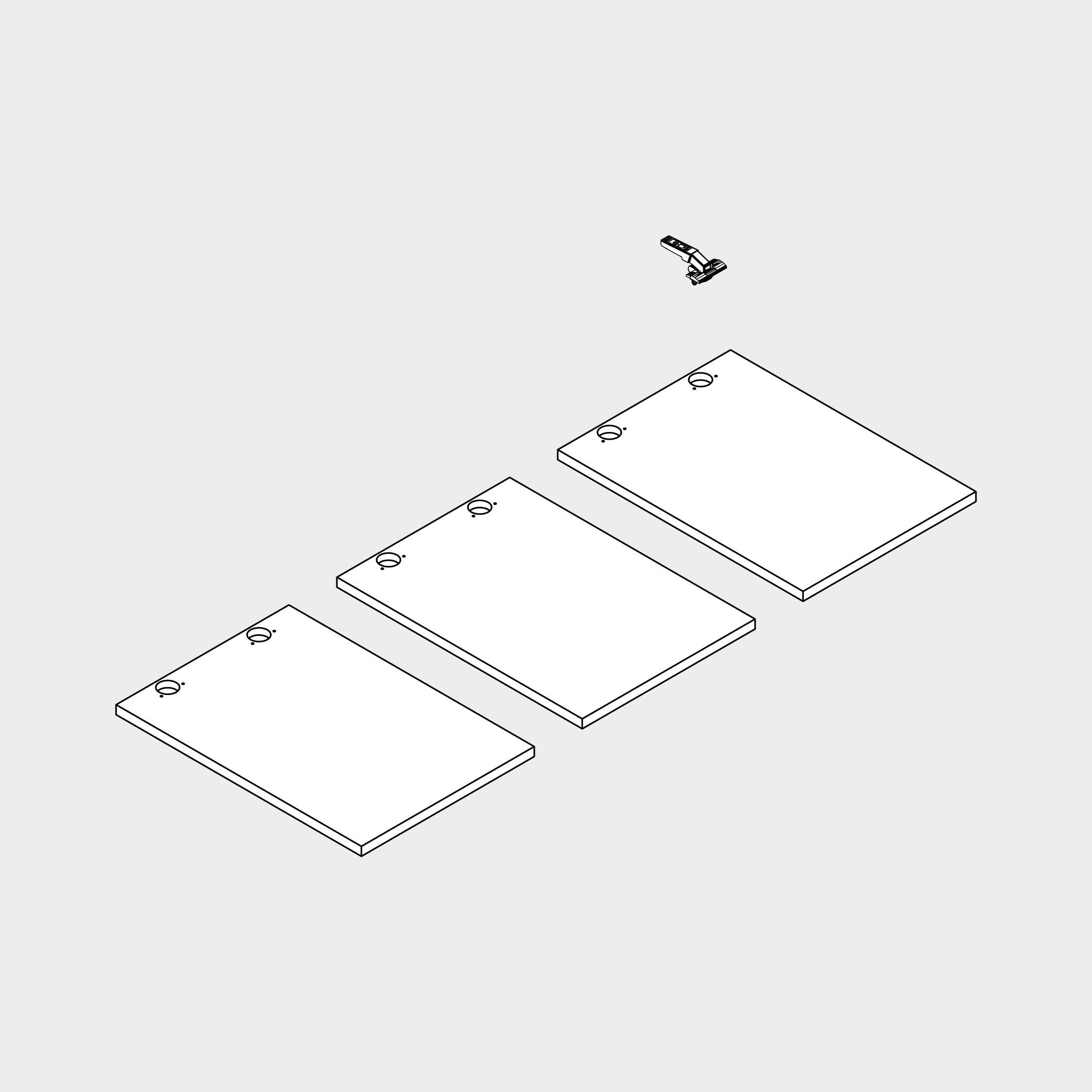

Mount the 2 hinges on the right place of each HF14 part.

#12

None

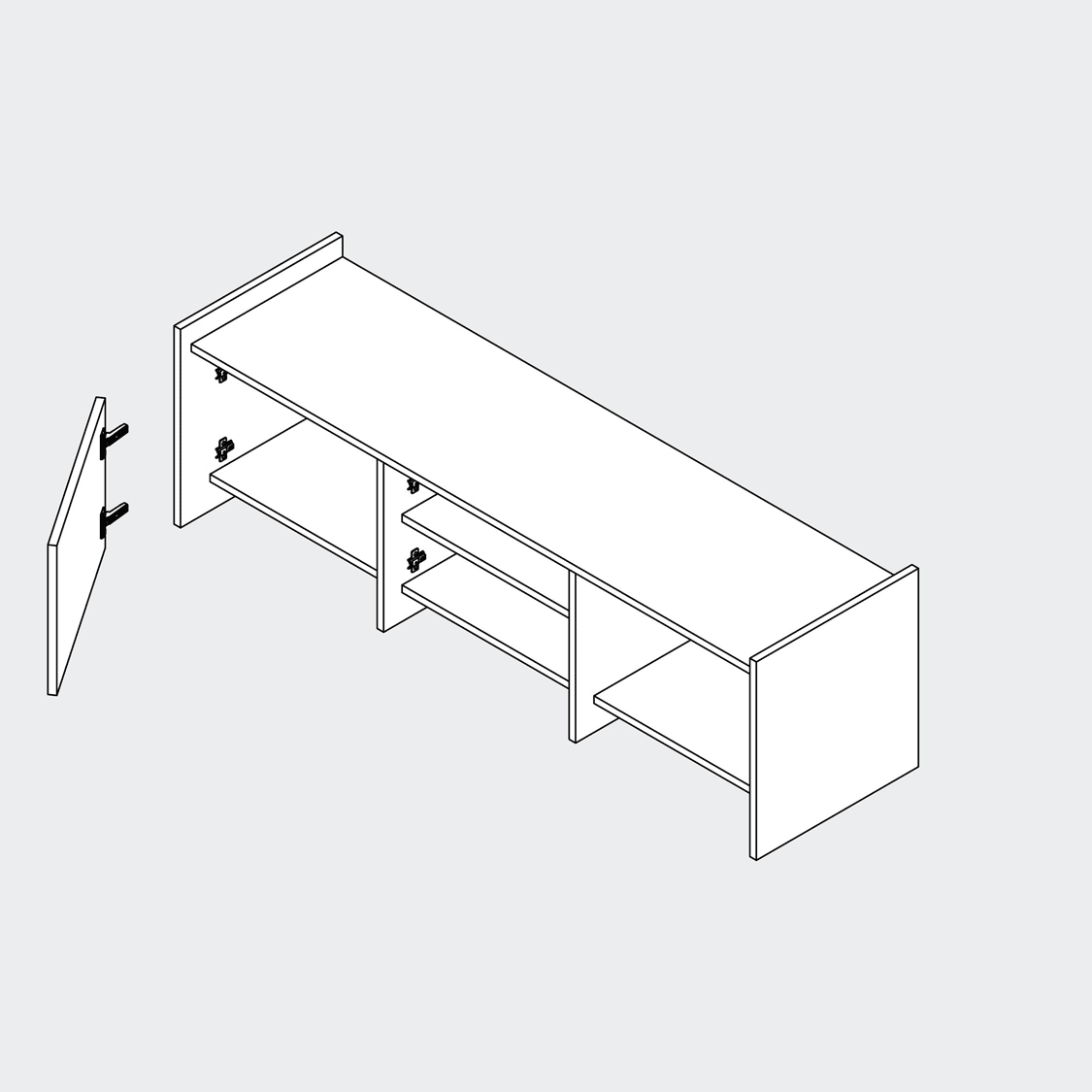

Mount the doors by pressing the hinges together until they click.

#13

None

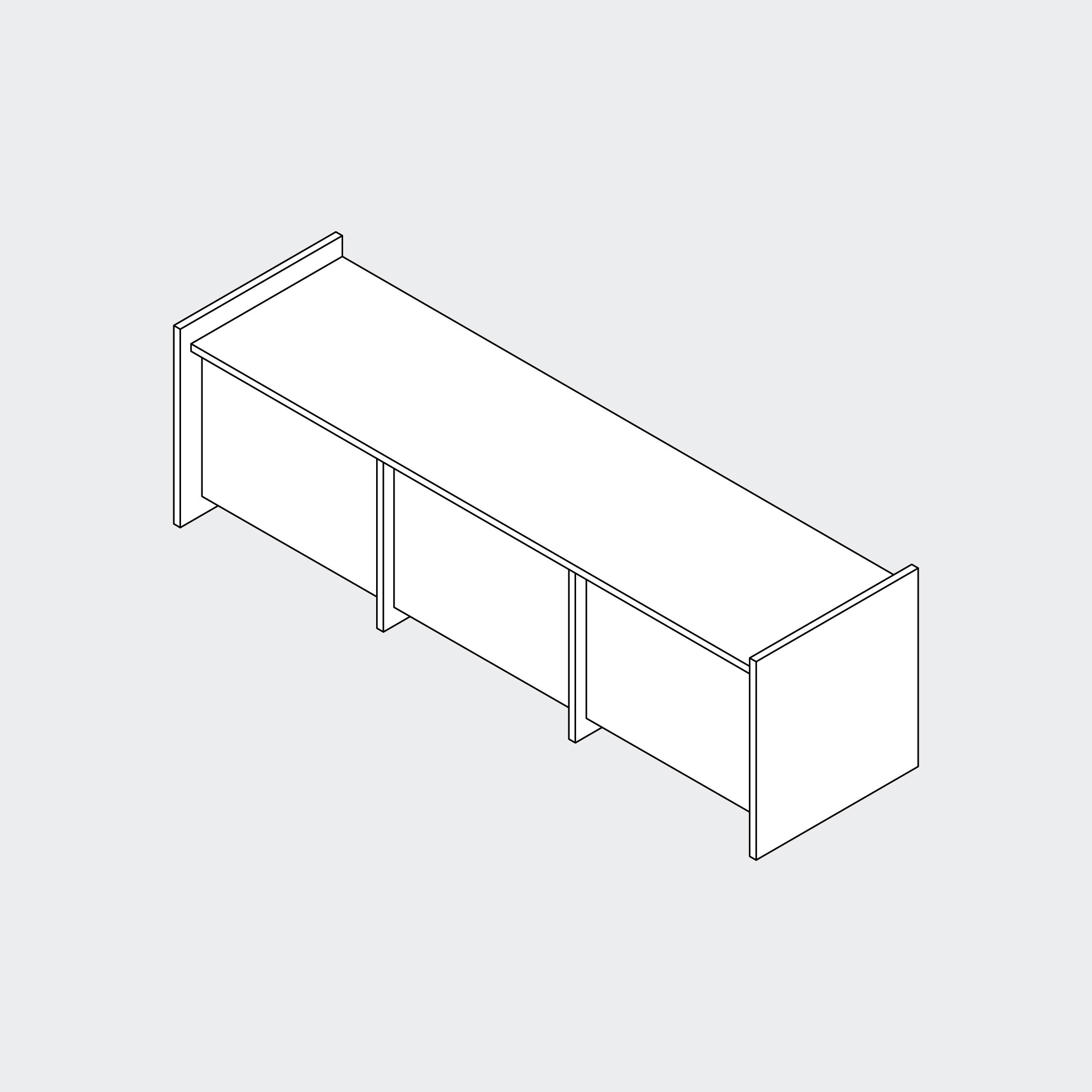

Adjust the doors’ position with a screwdriver as shown in the picture. Enjoy your new piece of furniture! To avoid damages, always make sure to lift the furniture when moving it.

#14

None
