Assembly Manual

Hido Sideboard Melemine

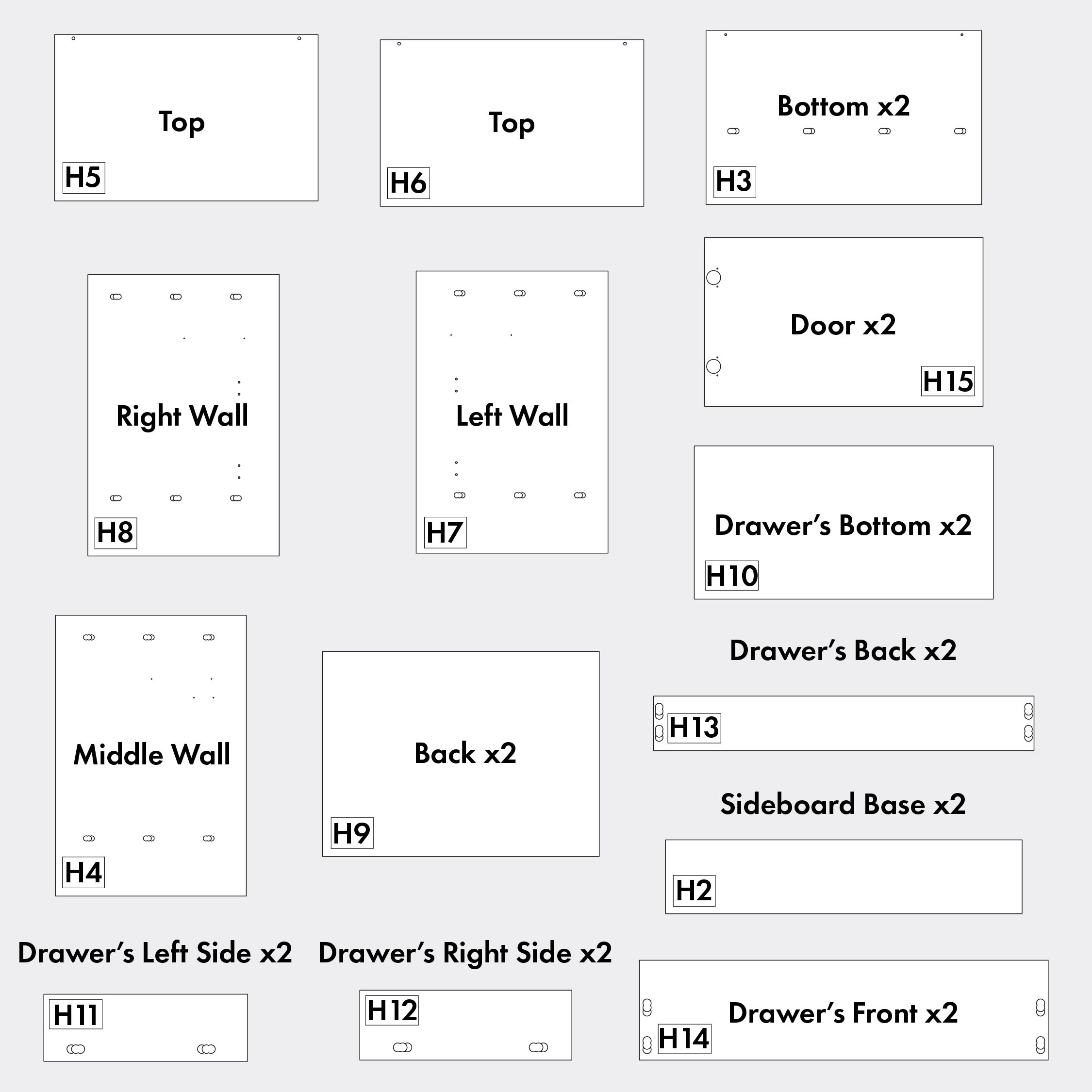

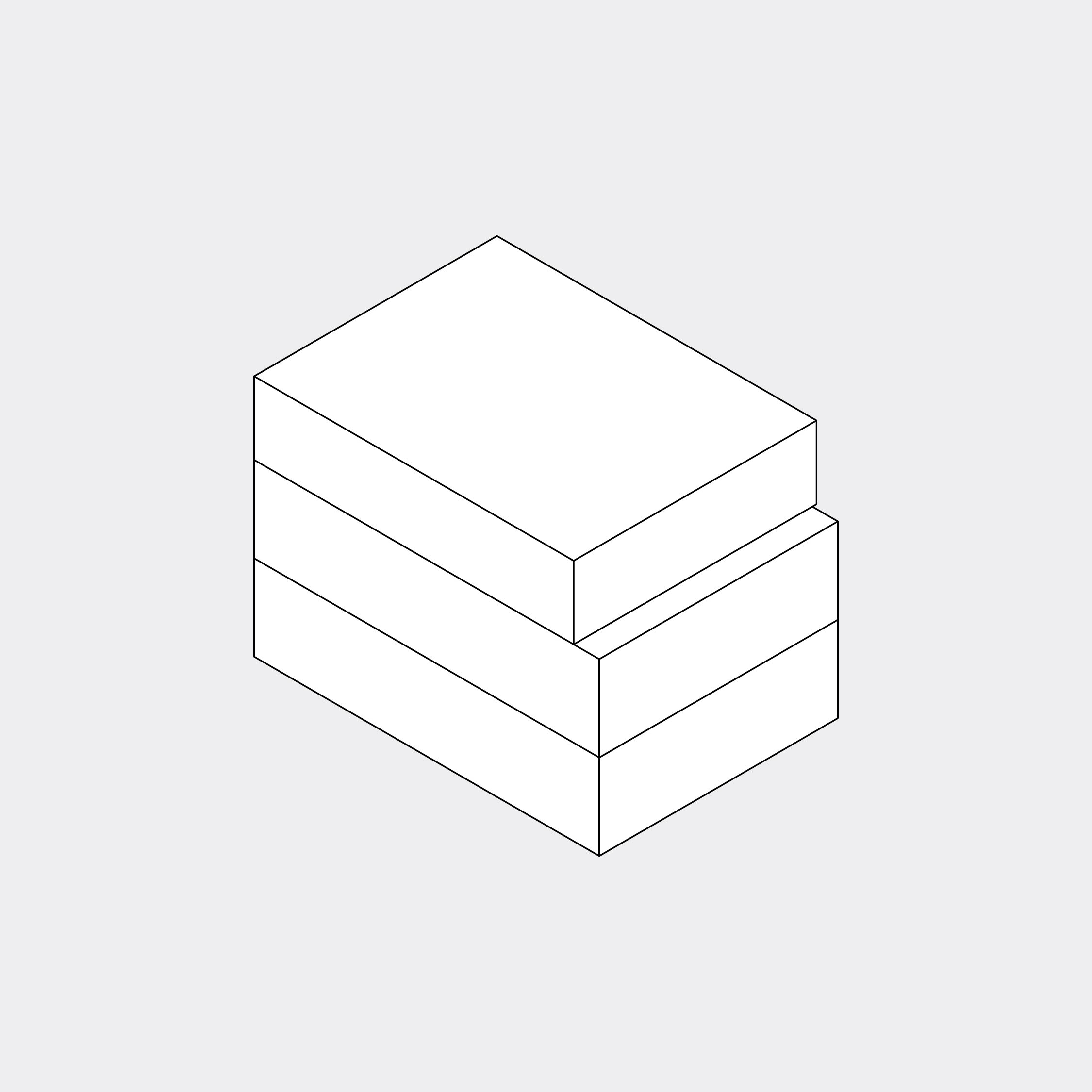

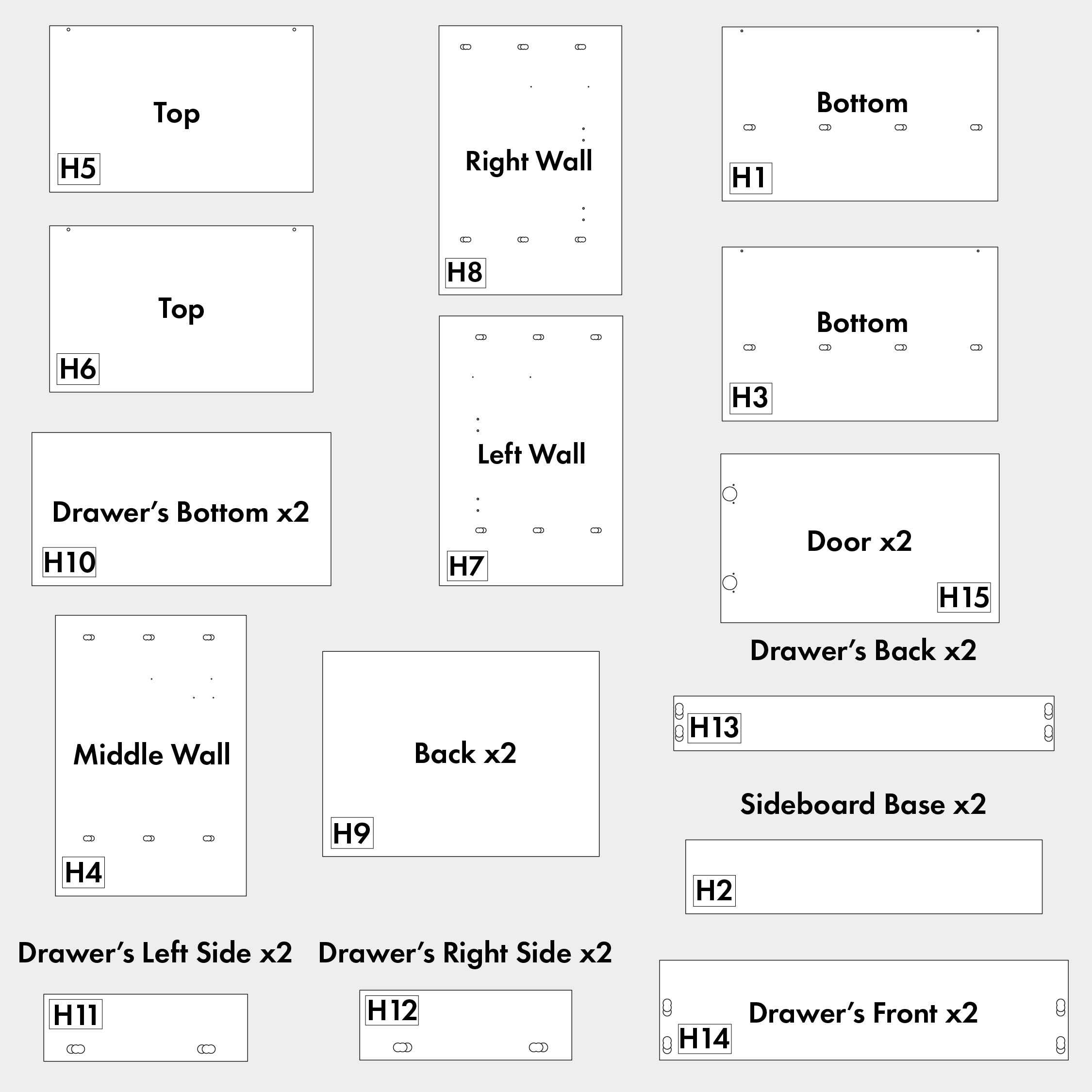

Check if you’ve received all boxes without any damages. If so, you’re good to go! Remember to always assemble furniture on a blanket, carpet or on the cardboard you got from us.

#1

None

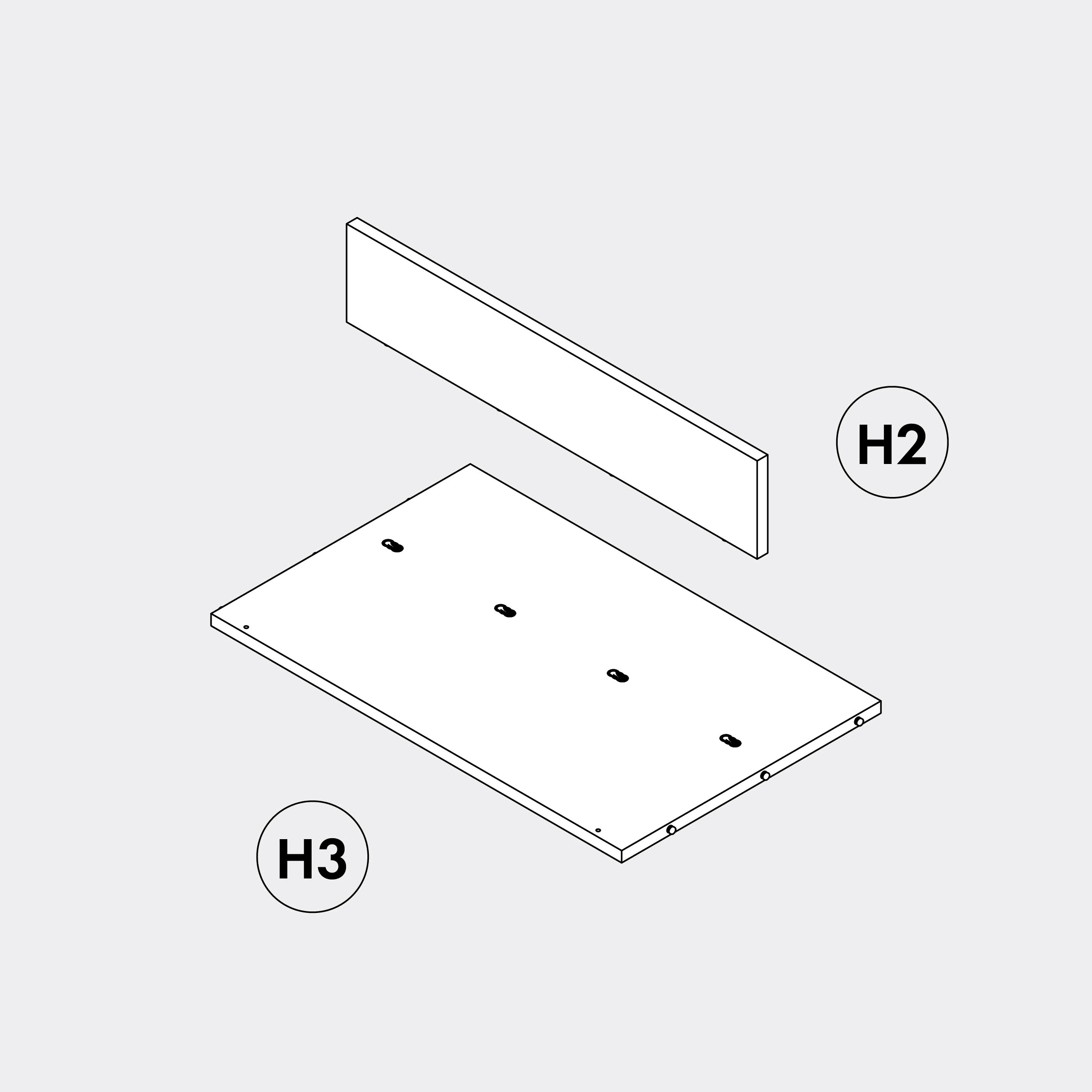

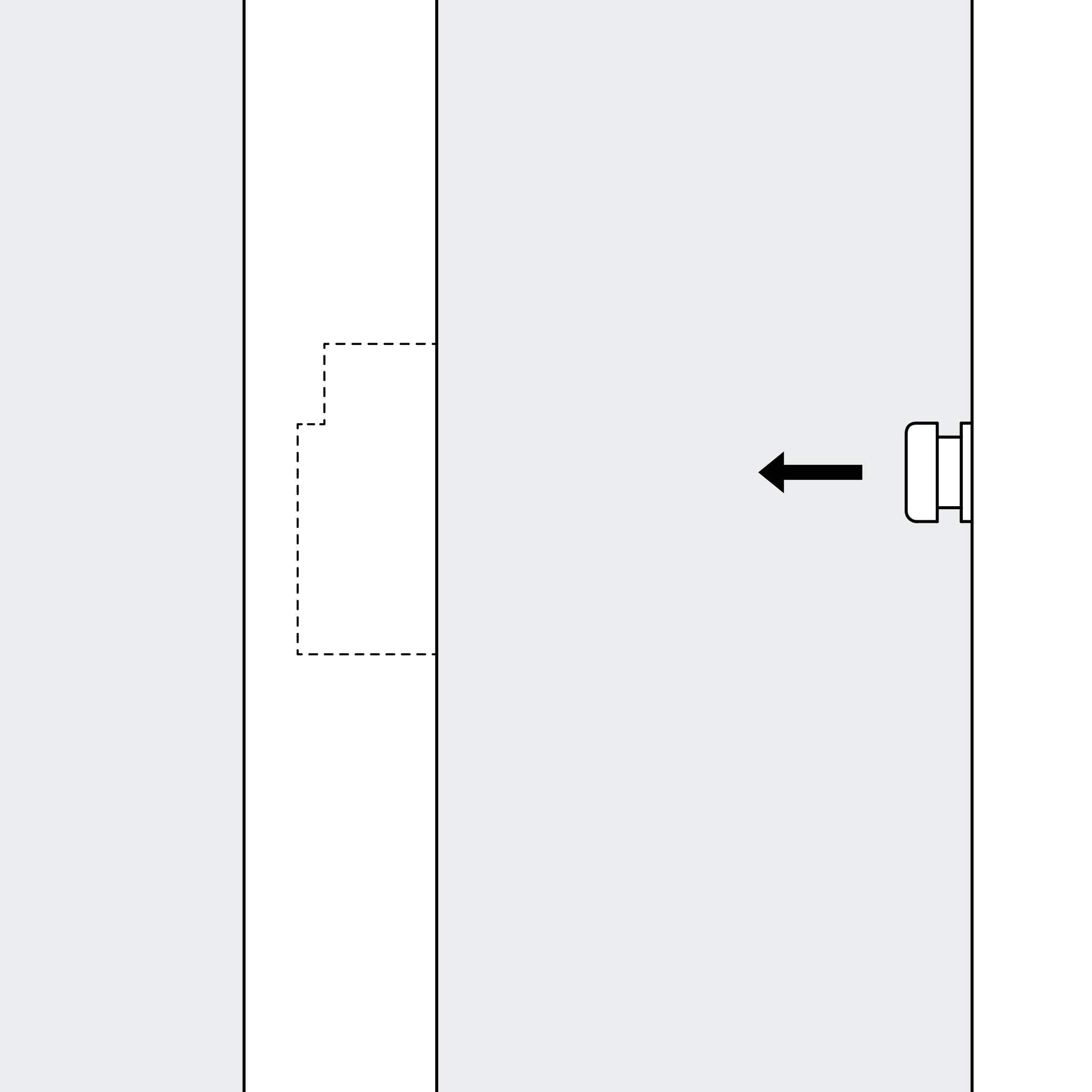

Connect parts H2 and H3 as shown in the illustration. Insert the pins into the holes, then slide the parts to the right until you hear a click. Repeat this step with the second set of H2 and H3 parts.

#2

None

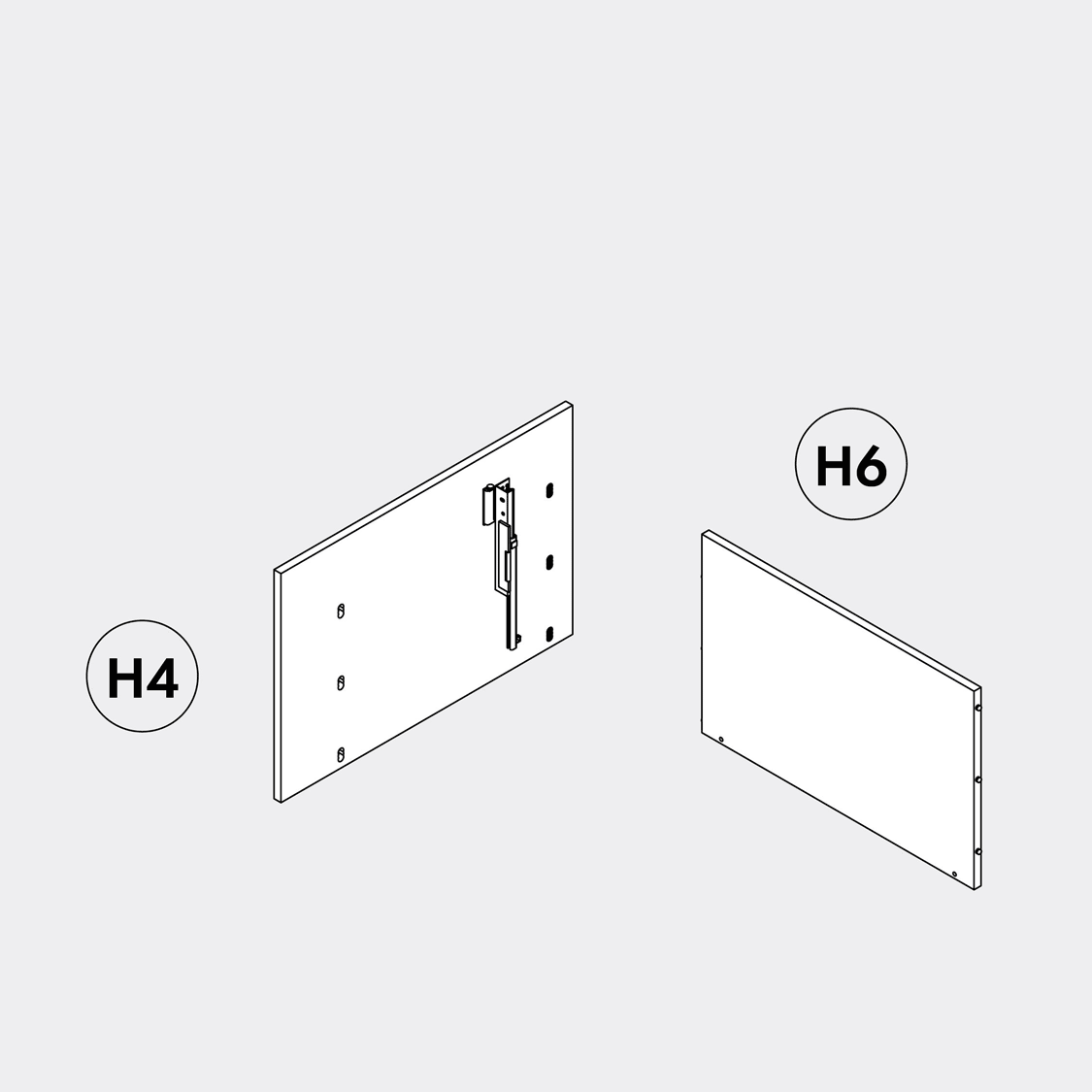

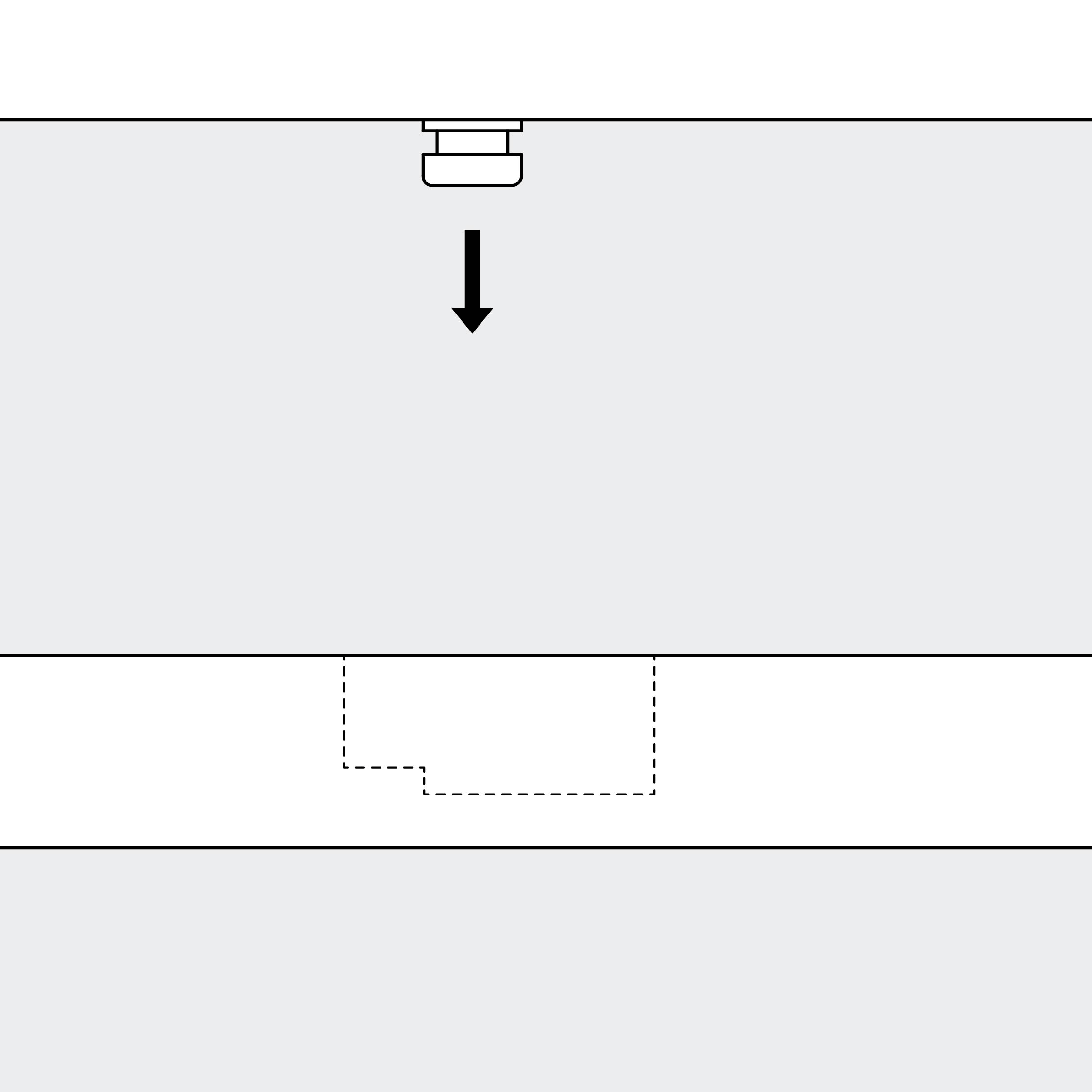

Connect parts H4, H5 and H6 as shown in the illustration. Insert the pins into the holes, then push the parts down until you hear a click.

#3

None

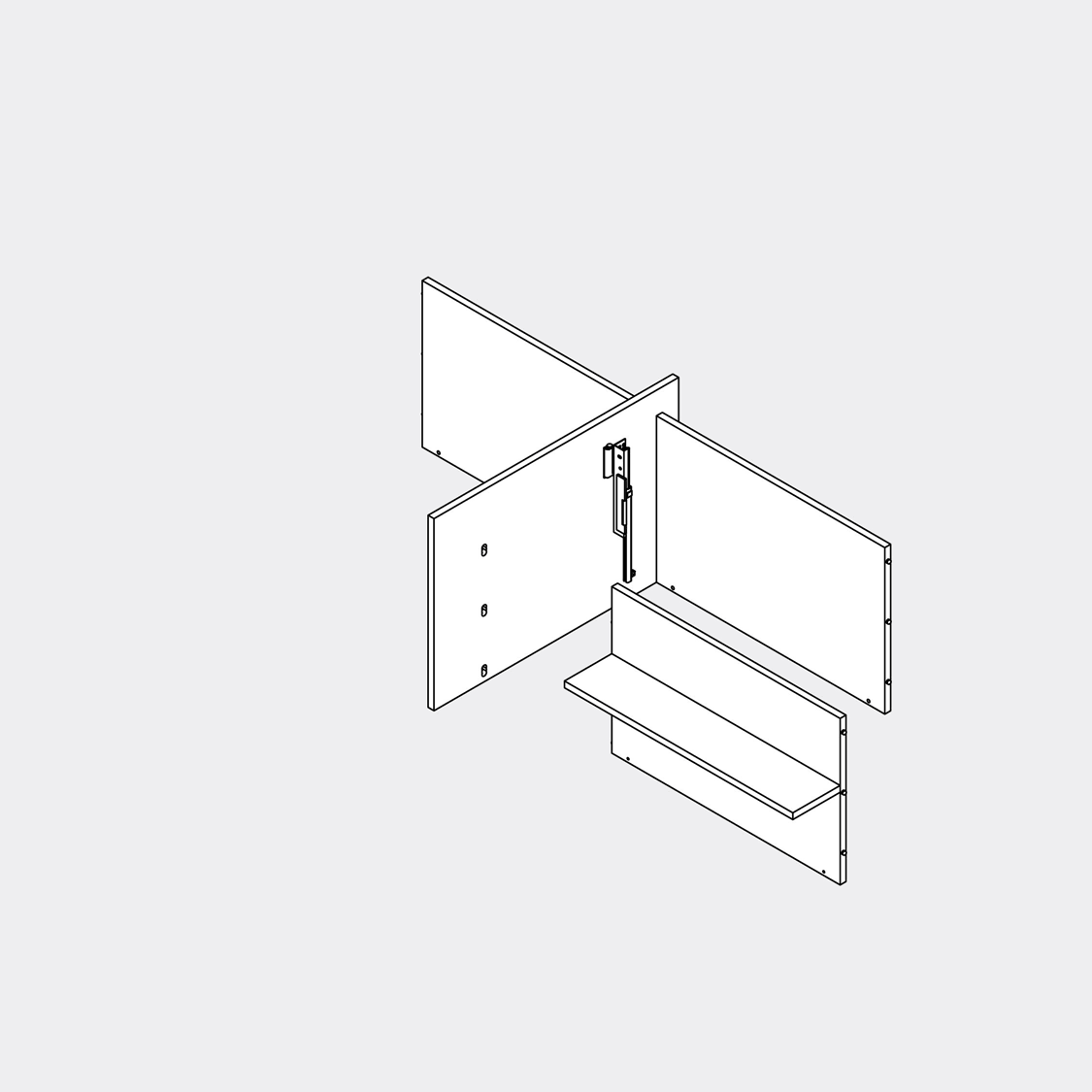

Next, attach the H2 and H3 parts prepared in step 2. Connect them as shown in the illustration. Insert the pins into the holes, then push the parts down until you hear a click.

#4

None

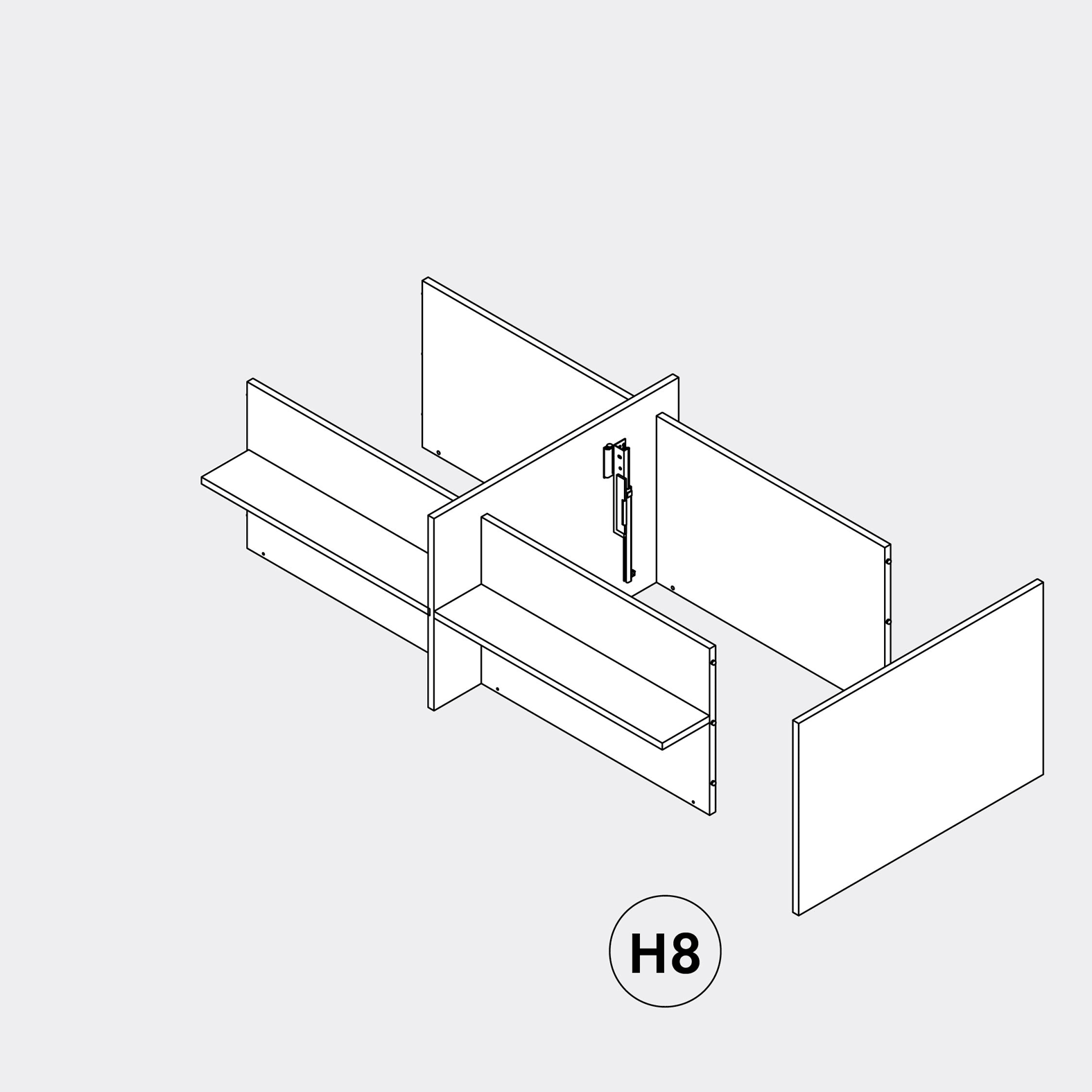

Install parts H7 and H8 as shown in the illustration. Insert the pins into the holes, then push the parts down until you hear a click.

#5

None

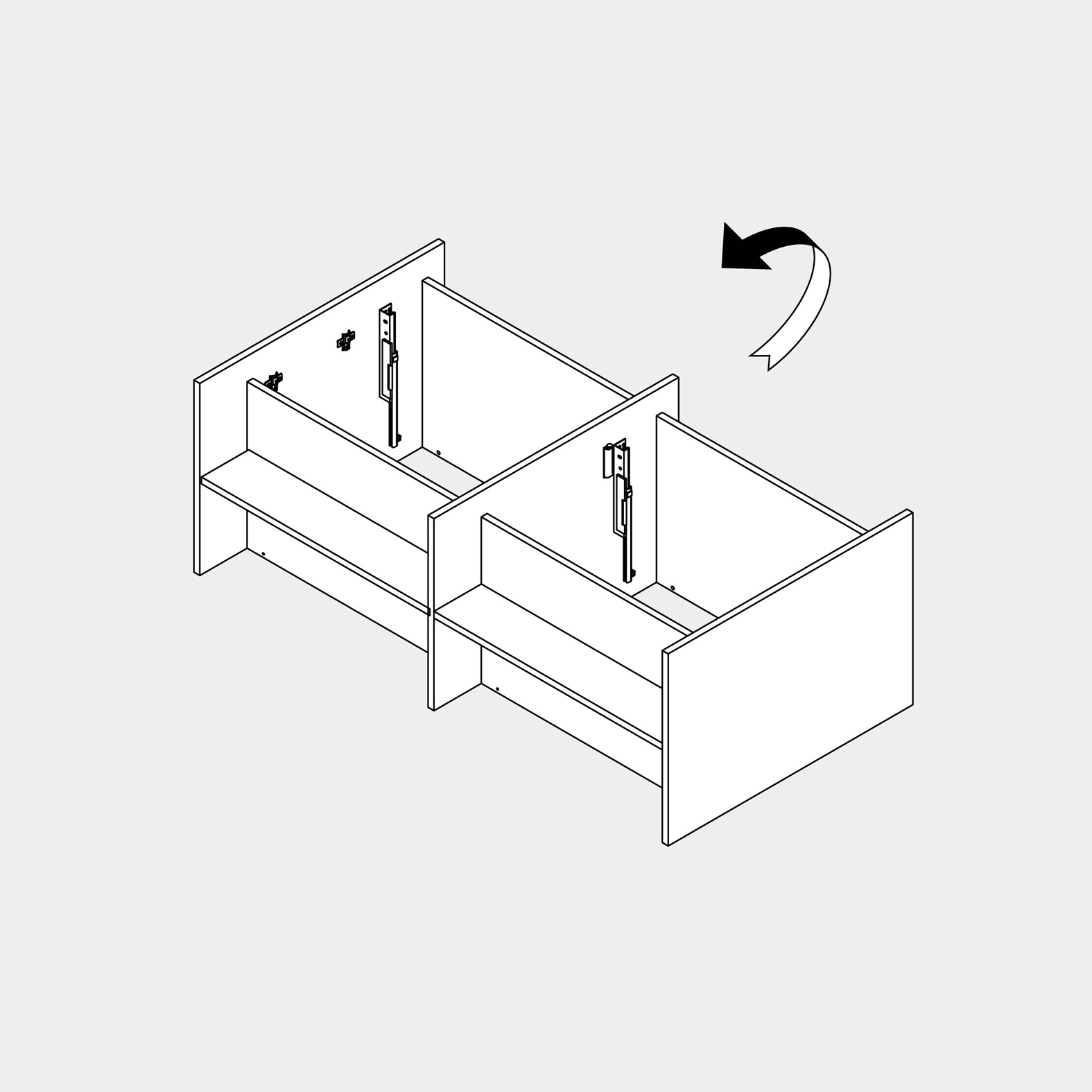

Turn the assembled structure over.

#6

None

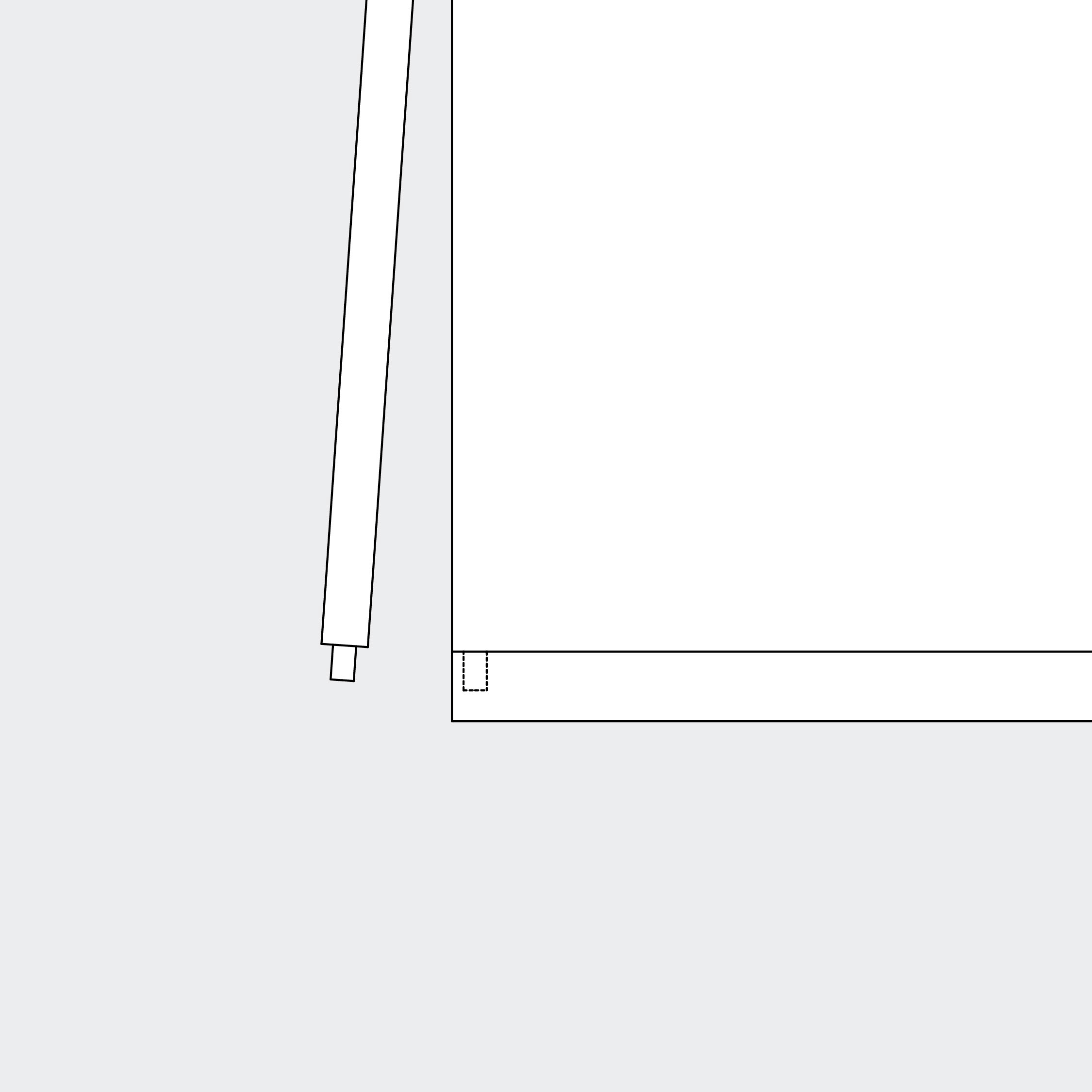

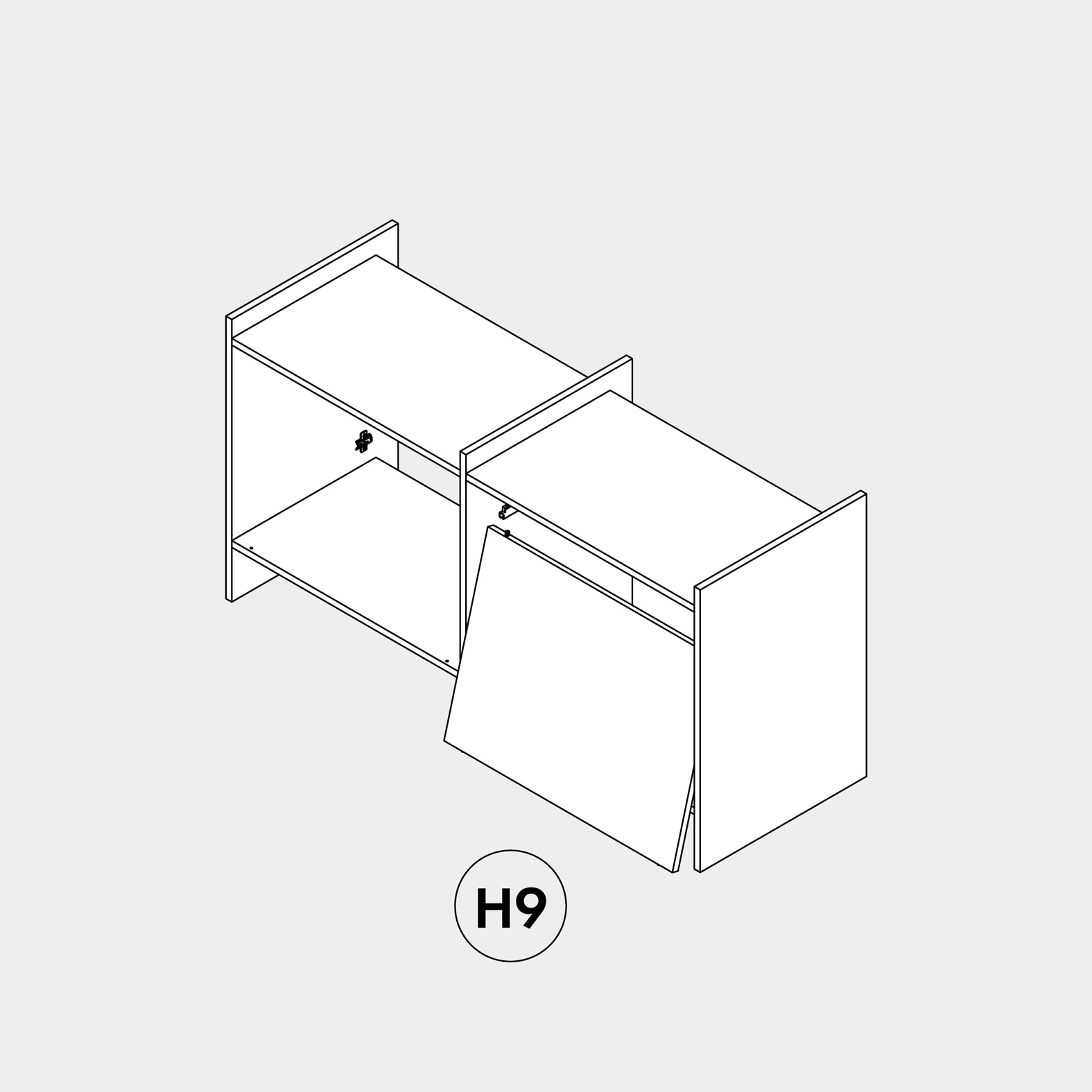

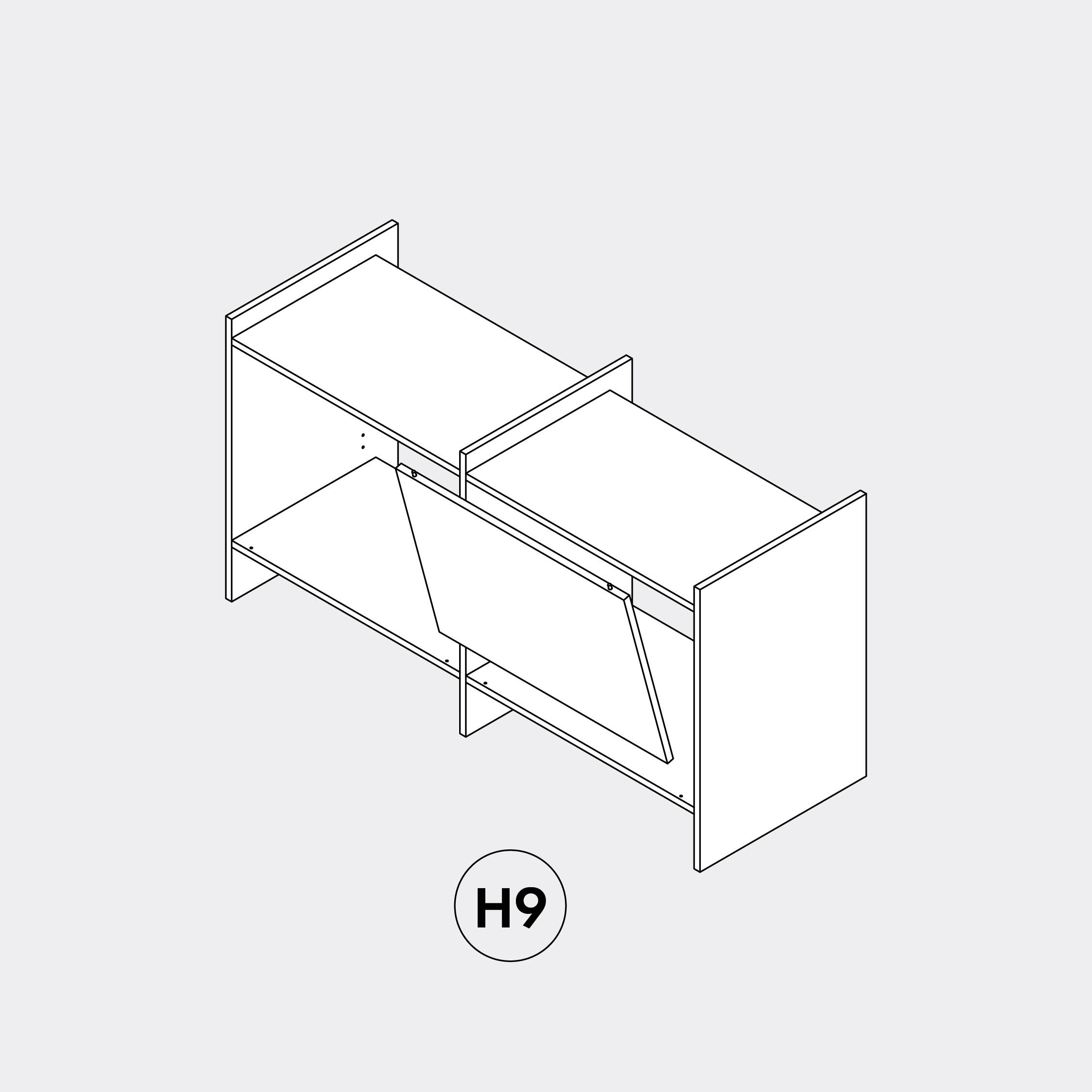

Install the two H9 parts. Insert the dowels into the upper section and slide the parts into place at an angle. Press in the pins located at the bottom and position each part correctly.

#7

None

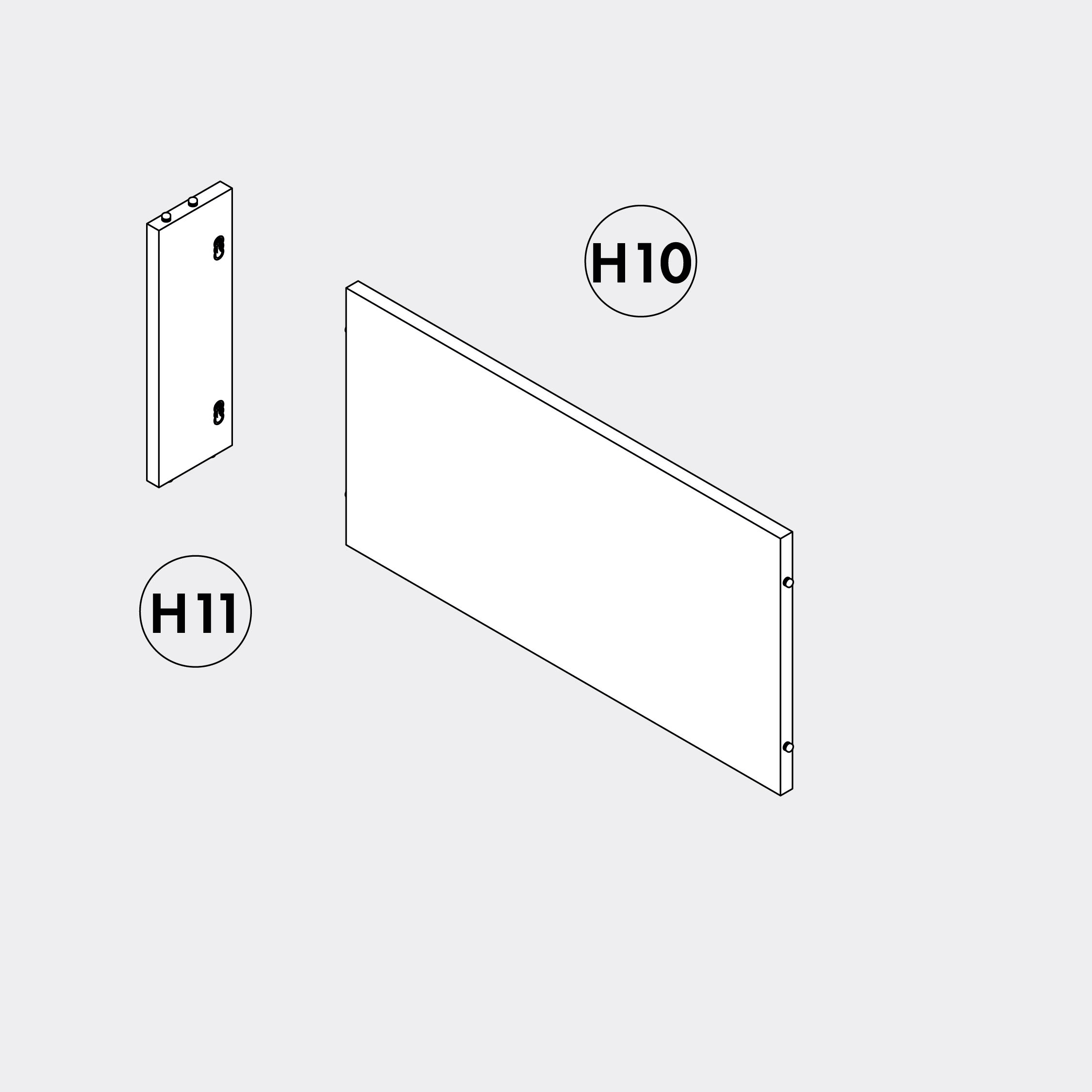

Connect parts H10, H11 and H12 as shown in the illustration. Insert the pins into the holes, then push the parts down until you hear a click.

#8

None

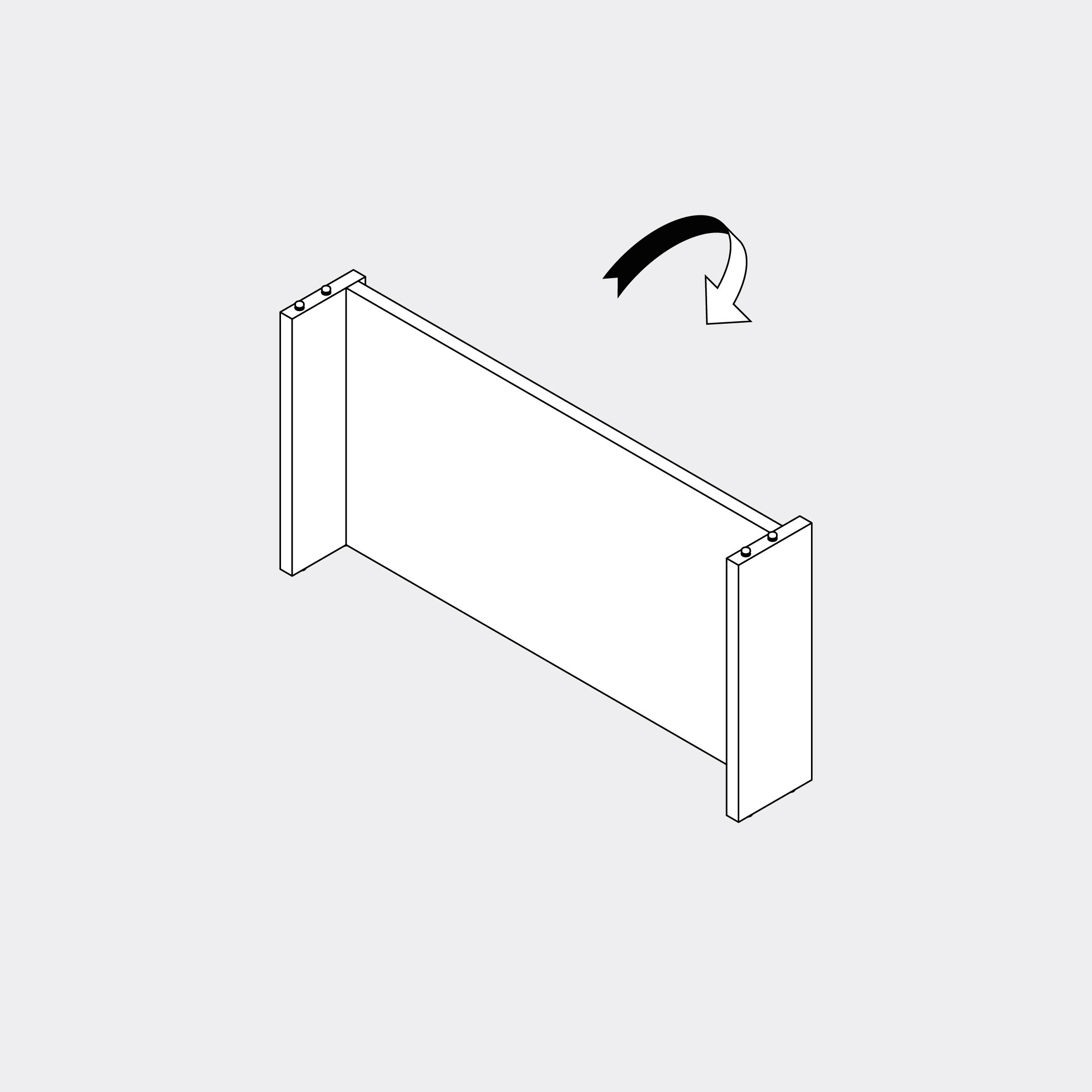

Turn the assembled structure over.

#9

None

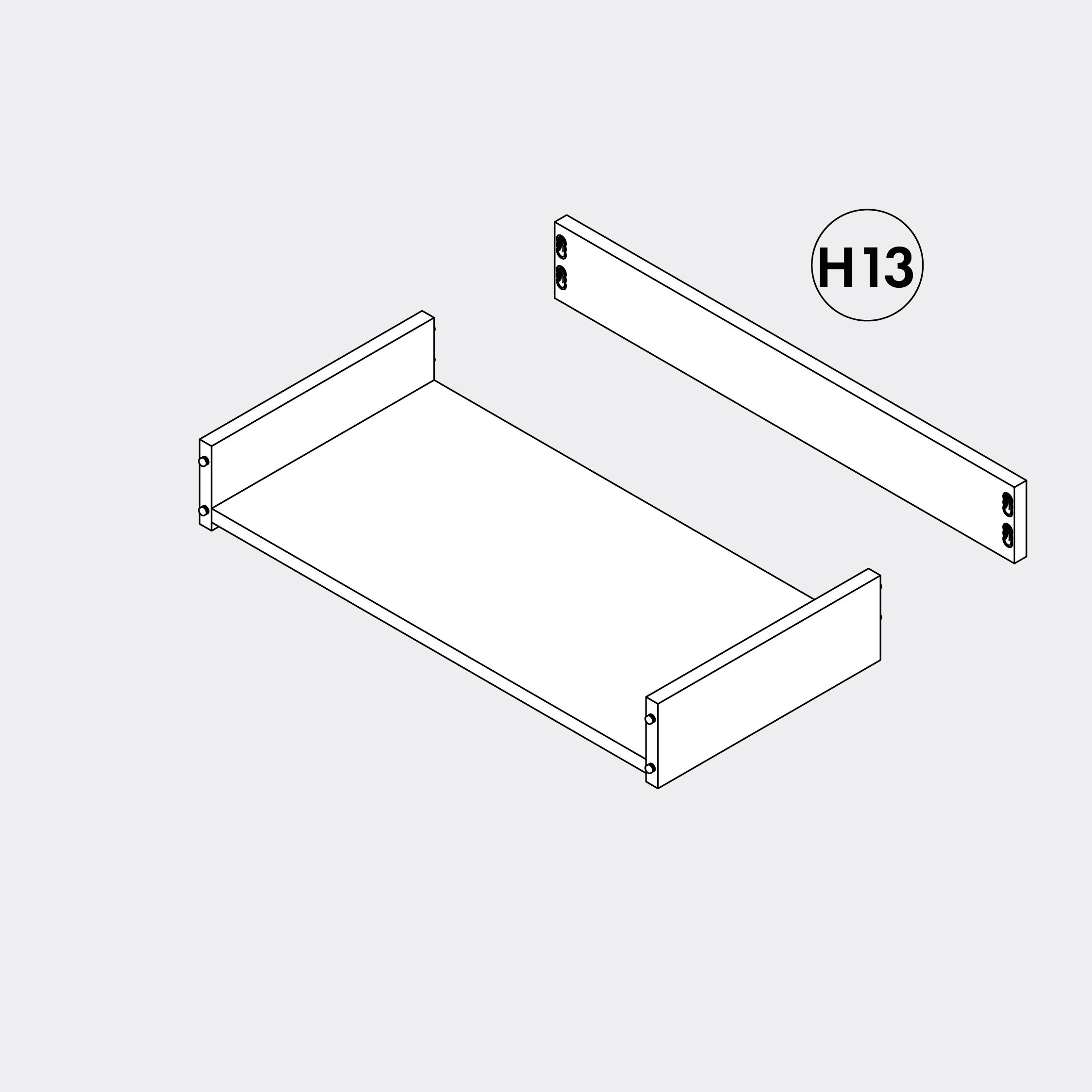

Install part H13 as shown in the illustration. Insert the pins into the holes, then push the part down until you hear a click.

#10

None

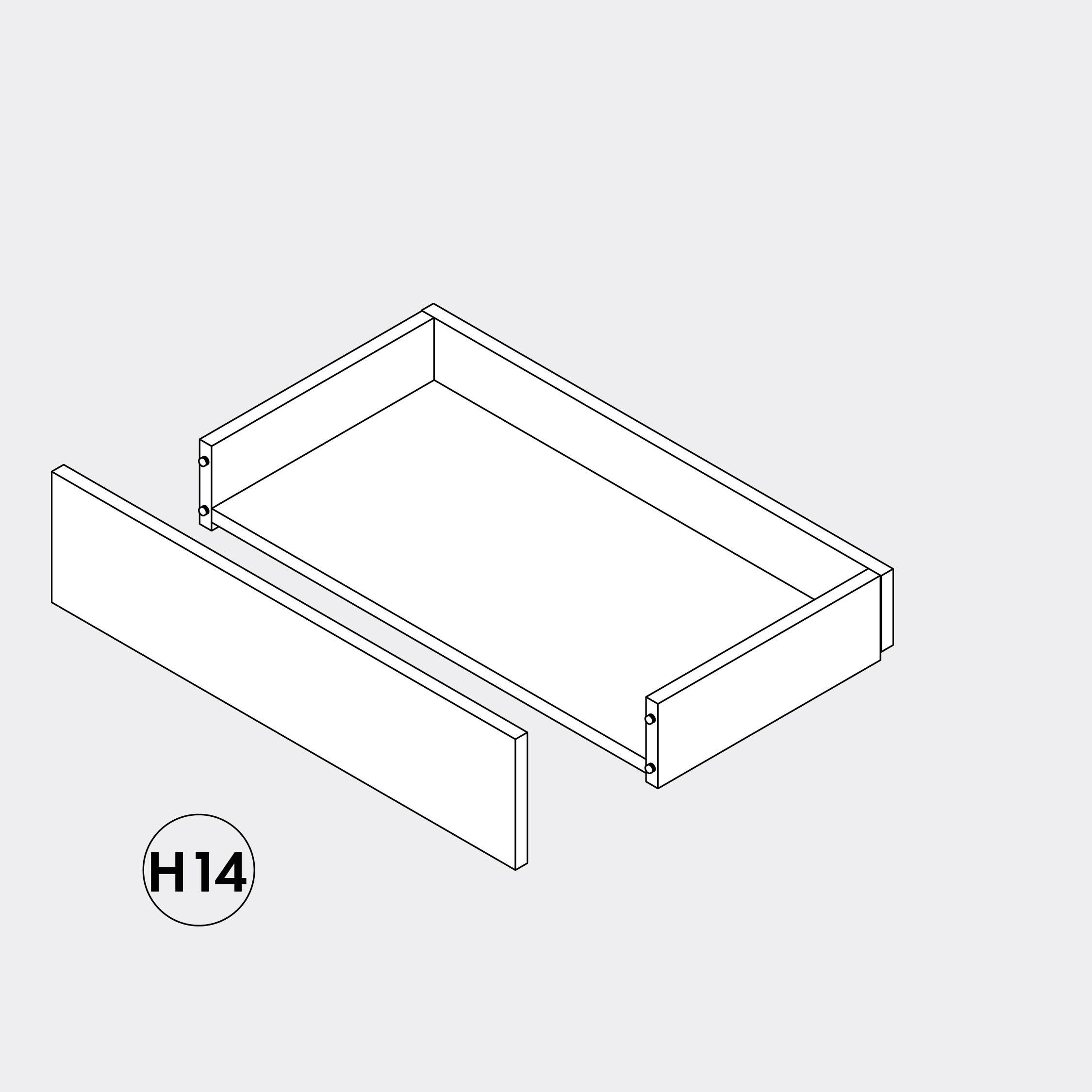

Install part H14 as shown in the illustration. Insert the pins into the holes, then push the part down until you hear a click.

#11

None

Pull the sliders as far as possible and place the drawer evenly on both of them. Push it inside till you hear a click and the front is fully hidden. To remove the drawer from slides just lay your fingers on the locking device and pull it.

#12

None

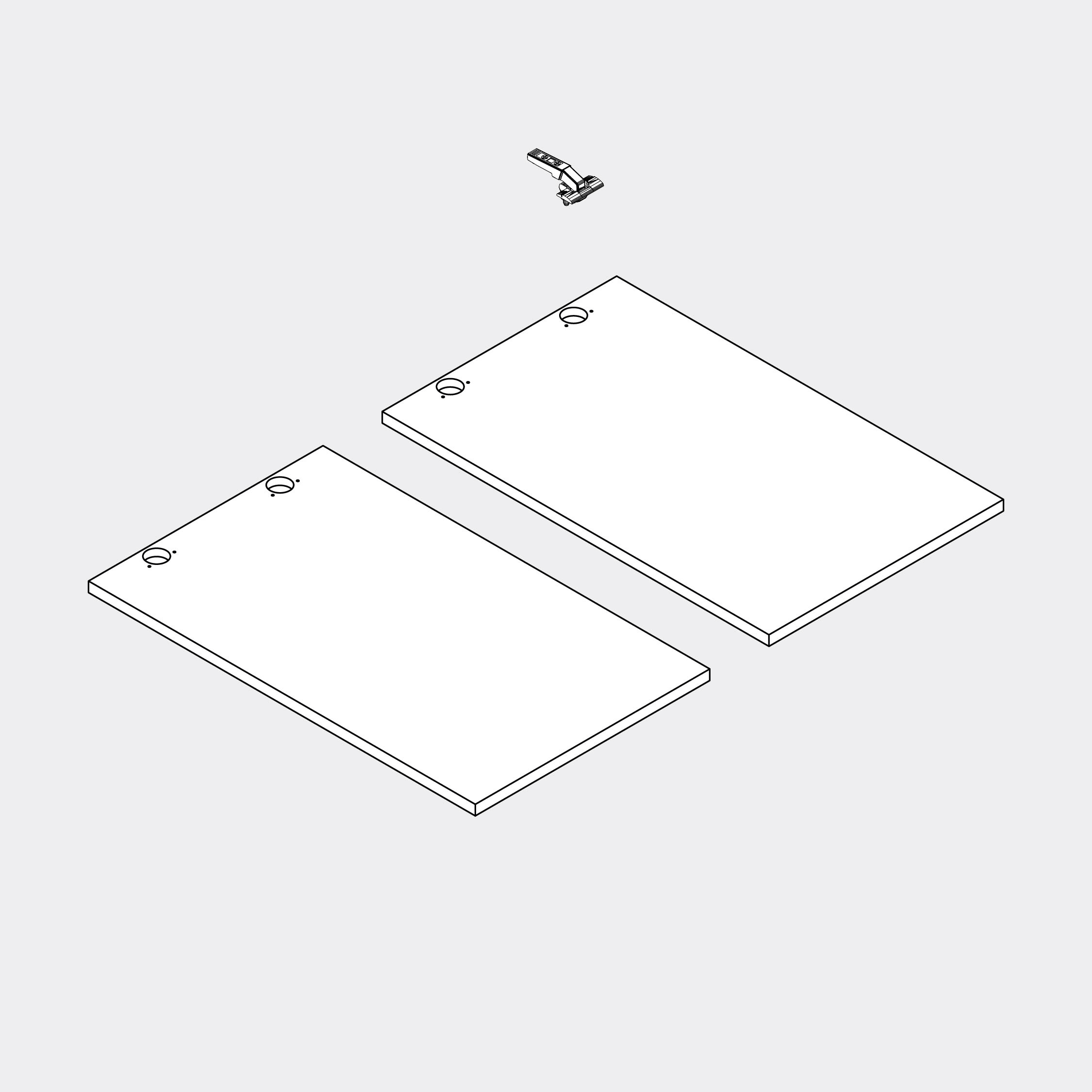

Mount the 2 hinges on the right place of each H15 part.

#13

None

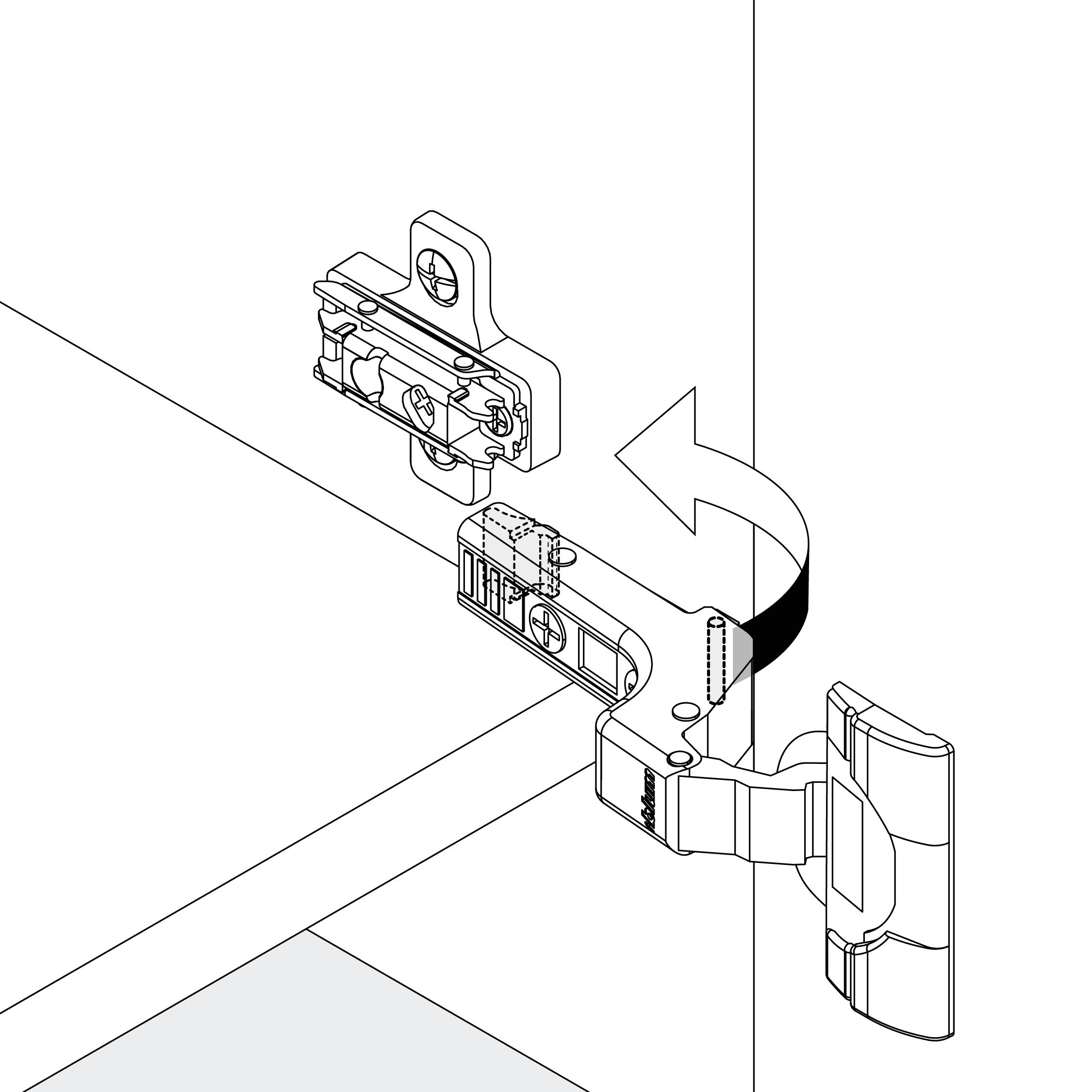

Mount the doors by pressing the hinges together until they click.

#14

None

Adjust the doors’ position with a screwdriver as shown in the picture. Enjoy your new piece of furniture! To avoid damages, always make sure to lift the furniture when moving it.

#15

None

You’ve done it! What’s next?

Share a pic!

We’re super exited about every new piece of furniture in your home and we’d love to see it.
